#91011569
Chevy SBC Rochester 2-Jet 2G Tri-Power 3x2 Carb Kit w/ Linkage
by
Speedway Motors19 Reviews
|
8 Questions
- This kit includes an adjustable progressive linkage kit
- Bases are small pattern 1-7/16" throttle bores
- Mount stud pattern is 1-7/8" x 3-1/4"
See More
$456.99
each
In Stock
$465.98
Save $8.99
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 1.44" Bore Size, .31" Shaft Diameter
- This kit includes an adjustable progressive linkage kit
- Bases are small pattern 1-7/16" throttle bores
- Mount stud pattern is 1-7/8" x 3-1/4"
- Includes two rebuilt bases for the secondary carbs, gaskets, jets, power valve and modified piston, idle tubes, plugs, hardware and new primary throttle shaft and butterflies
- Set up a Tri Power for a fraction of the cost
Comes as a Kit
View Kit Components
See more details
Key Specs
MFG. Part # | 91011569 |
Brand | Speedway Motors |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91011569 Details
Speedway Motors 91011569 Details
There's nothing cooler than a TriPower on your small block Chevy, but good carburetor cores are getting expensive and hard to find! With this kit you can use three junkyard 2G small base style Rochester carbs and put together a three deuce set-up for a fraction of the cost.

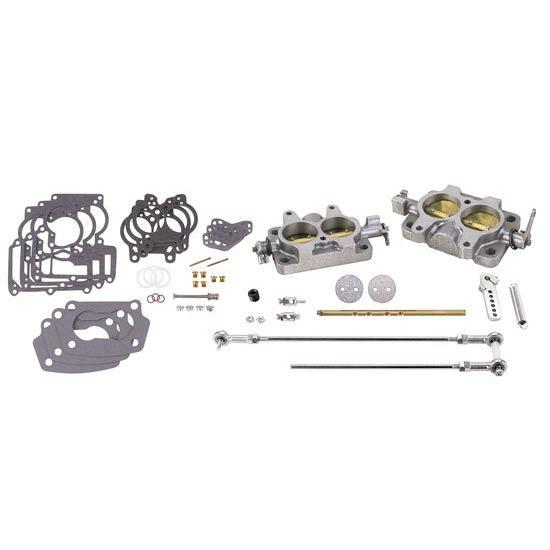

Kit includes two brand new throttle body base plates for the secondary carbs, gaskets, jets, power valve, modified piston, idle tubes, plugs, hardware, and new throttle shaft and butterflies for the primary carb. This 3x2 kit also includes an adjustable progressive linkage kit for use on SBC intake manifolds with 5-1/2" carb center spacing.
- Converts 3 "small base" Rochester 2G/2GC main bodies into progressive Tri-Power
- New base plates for secondary outboard carbs
- Extended throttle shaft and butterfiles for primary center carb
- Includes necessary plugs and hardware to recalibrate circuits
- Includes adjustable mechanical progressive linkage
- Linkage works with 3x2 intakes that have 5-1/2" carb centers
Charts
910-11569 Instructions (PDF)
910-11569 Supplement (PDF)
Specs
Rochester 2G/2GC "small base" 2 barrel carburetor:
- 1-3/32" venturi (278 CFM @ 3.0" Hg pressure drop)
- 1-7/16" throttle bore diameter
- 1-7/8" x 3-1/4" base plate bolt pattern (to manifold)
Speedway Motors 91011569 Specifications
Speedway Motors 91011569 Specifications
KEY SPECS | |
---|---|
MFG. Part # | 91011569 |
Brand | Speedway Motors |
GENERAL | |
Bore Size | 1.44" |
Shaft Diameter | .31" |
Bolt Hole Pattern | 3-1/4" x 1-7/8" |
Gasket(s) Included | Yes |
Material Type | Aluminum |
Finish | Natural |
Sold in Quantity | Kit |
Notes | Center carb jet is .056, end carb jets are .055. |
