Champ Style Oil Pan w/High Volume Oil Pump/Pickup Kit, 57-79 SBC

Save money and move more oil with these high volume Champ style oil pan/pump combos for 1957-79 (driver side dipstick) SBC engines.

Kit Includes:

• (1) Champ Style Oil Pan
• (1) High Volume Oil Pump
• (1) Oil Pump Pick Up
• (1) Oil Pan Gasket Set

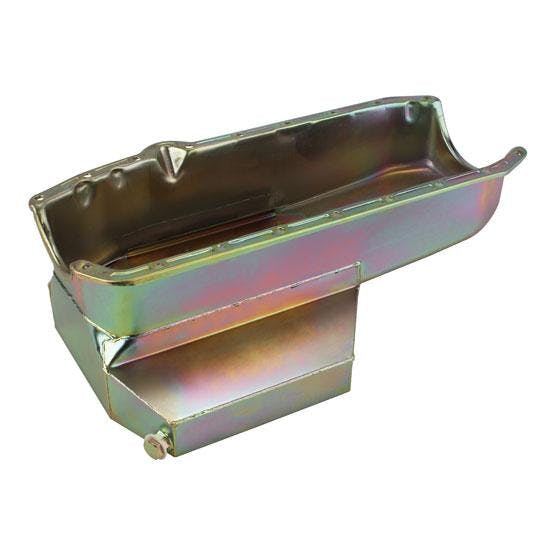

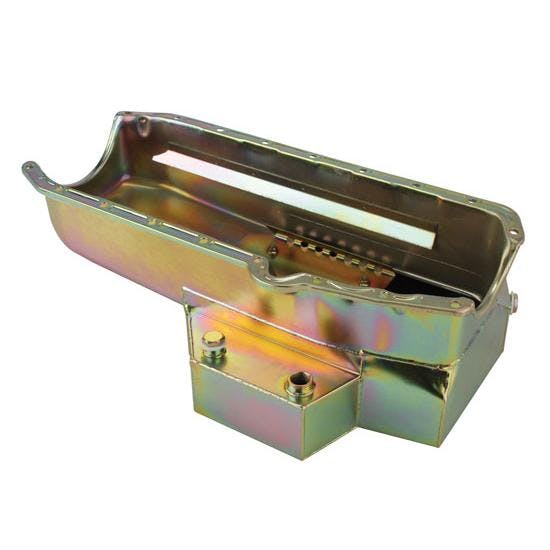

Champ Style Oil Pan

• For 1957-1979 Small Block Chevy
• 7" deep
• 6 trap doors, 2 runners, 3 crank scrapers
• 7 quart sump
• Stock starter will fit
• Drivers side dipstick
• Center to center of rear bolt holes is 5-13/16"

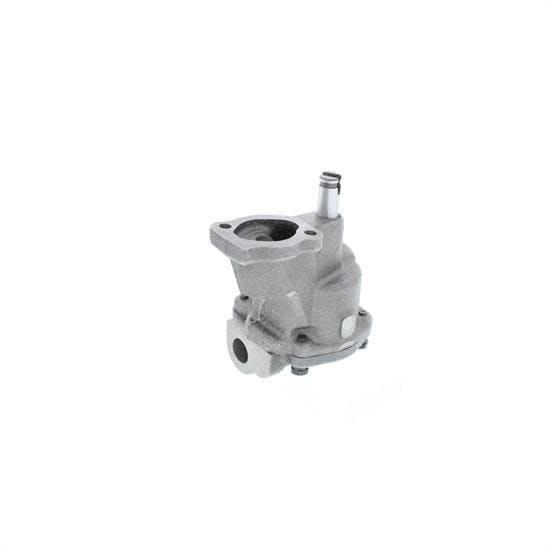

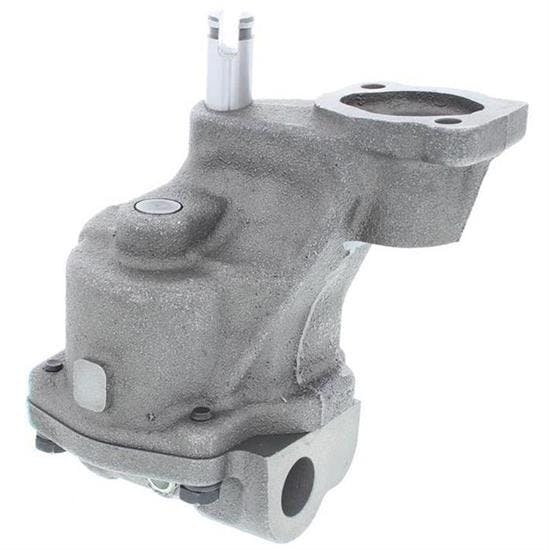

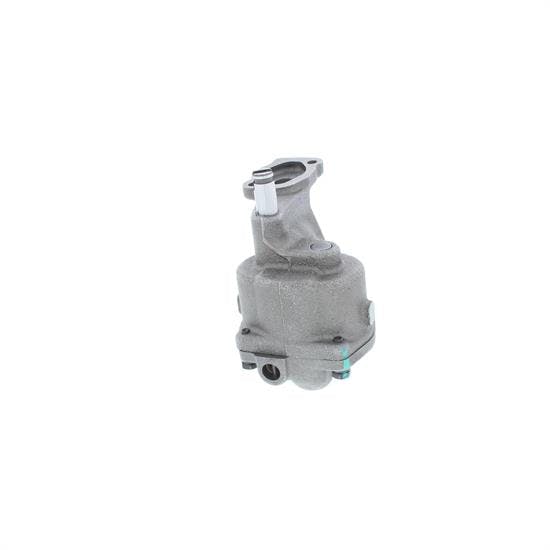

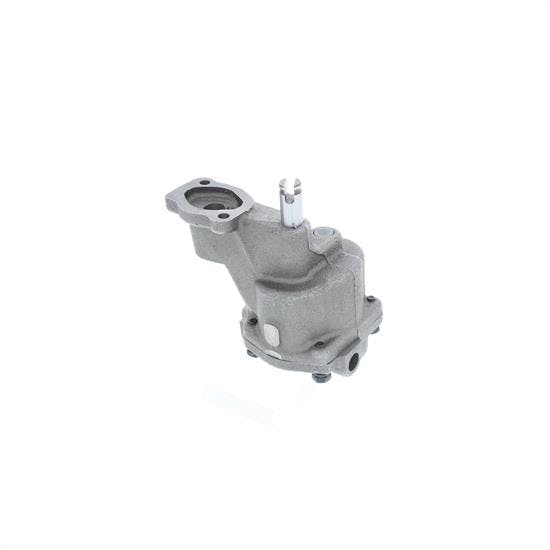

High Volume Oil Pump

• For 1955-1999 small block Chevy V8
• 25% more volume than stock oil pumps
• Ideal for high-mileage, basic rebuilds, and racing engines
• Recommended for applications with remote filters or coolers
• Upgraded 1.500" long gear (.300" longer than stock)
• Preset to 55-65 psi, but includes low-pressure spring included if needed
• Use with 5/8" pick-up tube

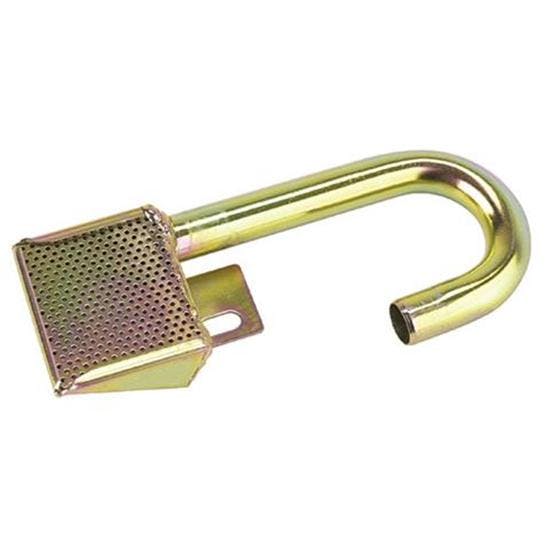

Oil Pump Pick Up

• Zinc plated steel champ style oil pan pick-up
• For 4-bolt small block Chevy high volume oil pumps
• Has a 5/8" diameter tube

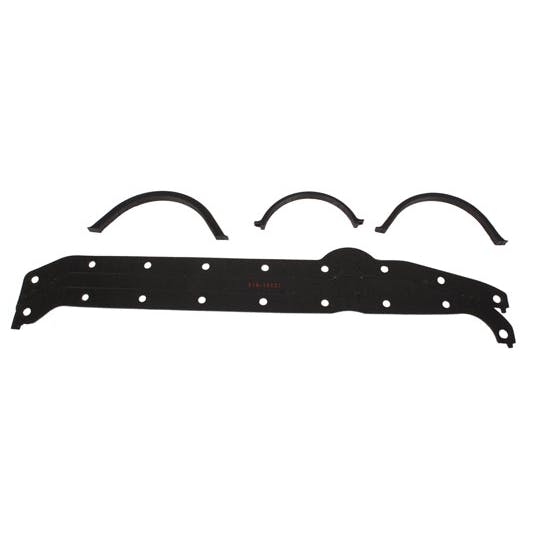

Oil Pan Gasket Set

• Left Hand side (57-79) or Right Hand side (80-85) dipstick
• For 2-piece rear main seal blocks
• Includes both 'Thick' and 'Thin' front pan seals
• .090" material thickness
• Cork material type

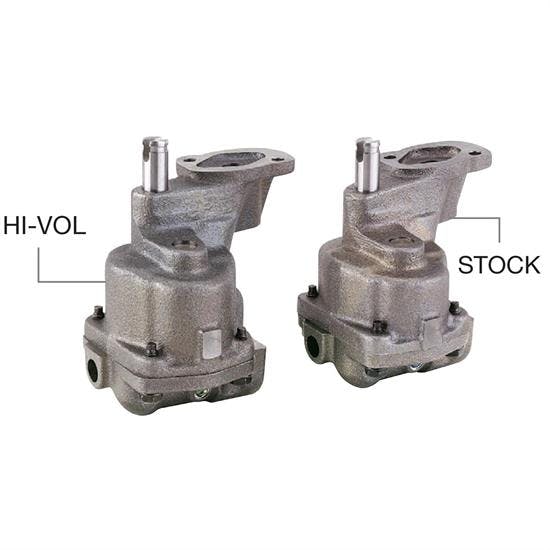

High Volume Oil Pump (more details)

There are many scenarios where a stock-volume oil pump won't provide the protection your engine needs. Engines with loose clearances (quick rebuilds or high-mileage engines) will need more oil volume to maintain a desired pressure. Engines operating at sustained high RPM (racing) also typically need more oil volume to maintain pressure in all oil galleries.

These high-volume oil pumps move 25% more oil by utilizing 1.500" long internal gears, which is .300" longer than stock pumps. Another benefit of high volume oil pumps is increased pressure at idle, providing some much needed peace of mind on the street. These pumps come preset to 55-65 PSI of oil pressure, with an additional spring to change that pressure setting if needed.
