#91015138

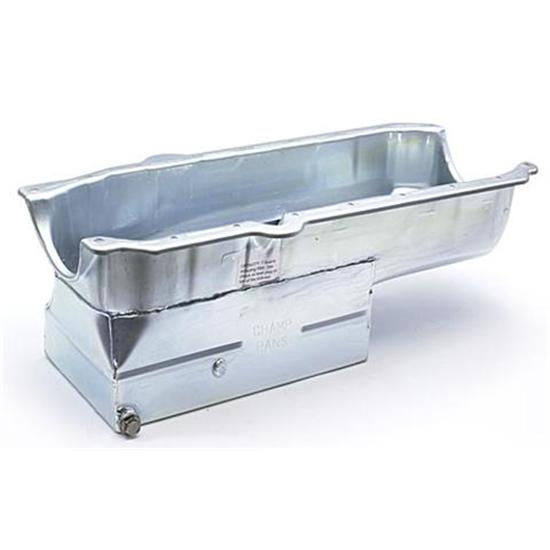

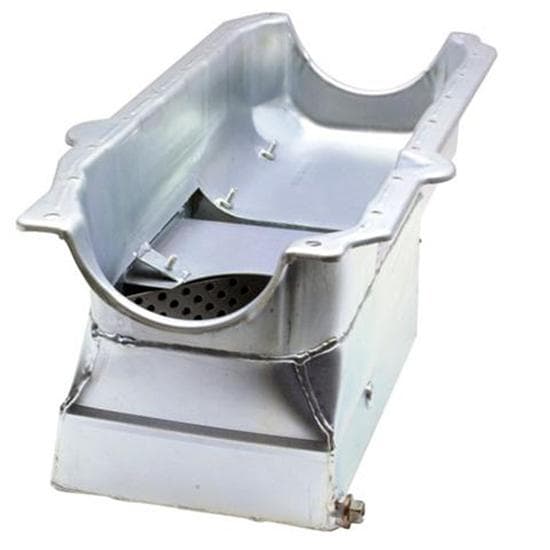

Champ Pans CP50R 1979-86 Small Block Chevy Race Oil Pan, RH Dipstick
$202.99
each
On Backorder
This part is Backordered. We estimate this item will ship on or before June 1st.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
267, 305, 400, Wet Sump Sump Style, Steel, 7.75" Depth
See more details
Key Specs
| MFG. Part # | CP50R |
| Brand | Champ Pans |
| Sump Style | Wet Sump |
| Rear Main Seal Style | 2-piece |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyChamp Pans CP50R Details
Champ Pans CP50R Details
These small block Chevy oil pans work great for street, strip, road racing, and circle tracks. They feature a 7-3/4" deep pan with one large trap door, one crank scraper and two runners. The oil capacity is 7 quarts with a filter attached. Will work with stock size starters.
Specs
- Dimensions: 7-3/4" deep x 7-3/4" wide x 12" long
- Rear Sump: 8" deep x 12" long
- Front Portion: 4-1/2" deep x 9" long
Champ Pans CP50R Specifications
Champ Pans CP50R Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | CP50R |
| Brand | Champ Pans |
| Sump Style | Wet Sump |
| Rear Main Seal Style | 2-piece |
| GENERAL | |
| Speedway Motors Catalog Part # | 910-15138 |
| Liquid Measurement | 7 quarts |
| Material Type | Steel |
| Depth | 7.75" |
| Finish | Zinc |
| Has Dipstick Provision | Yes |
| Dipstick Location | Passenger Side |
| Oil Inspection Plug | No |
| Inside Length | 12" |
| Crank Scraper Included | Yes |
| Sold in Quantity | Each |
