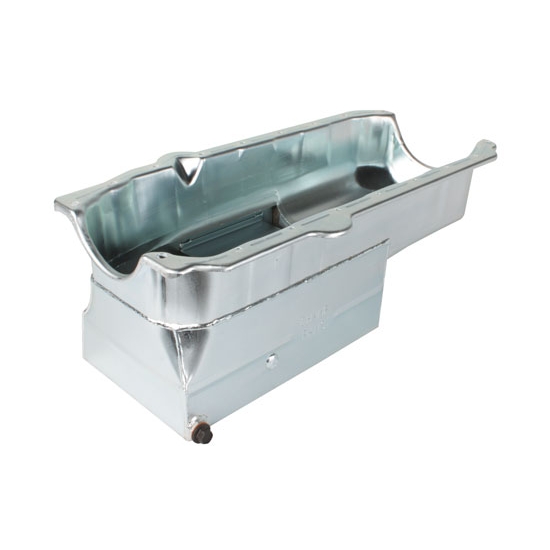

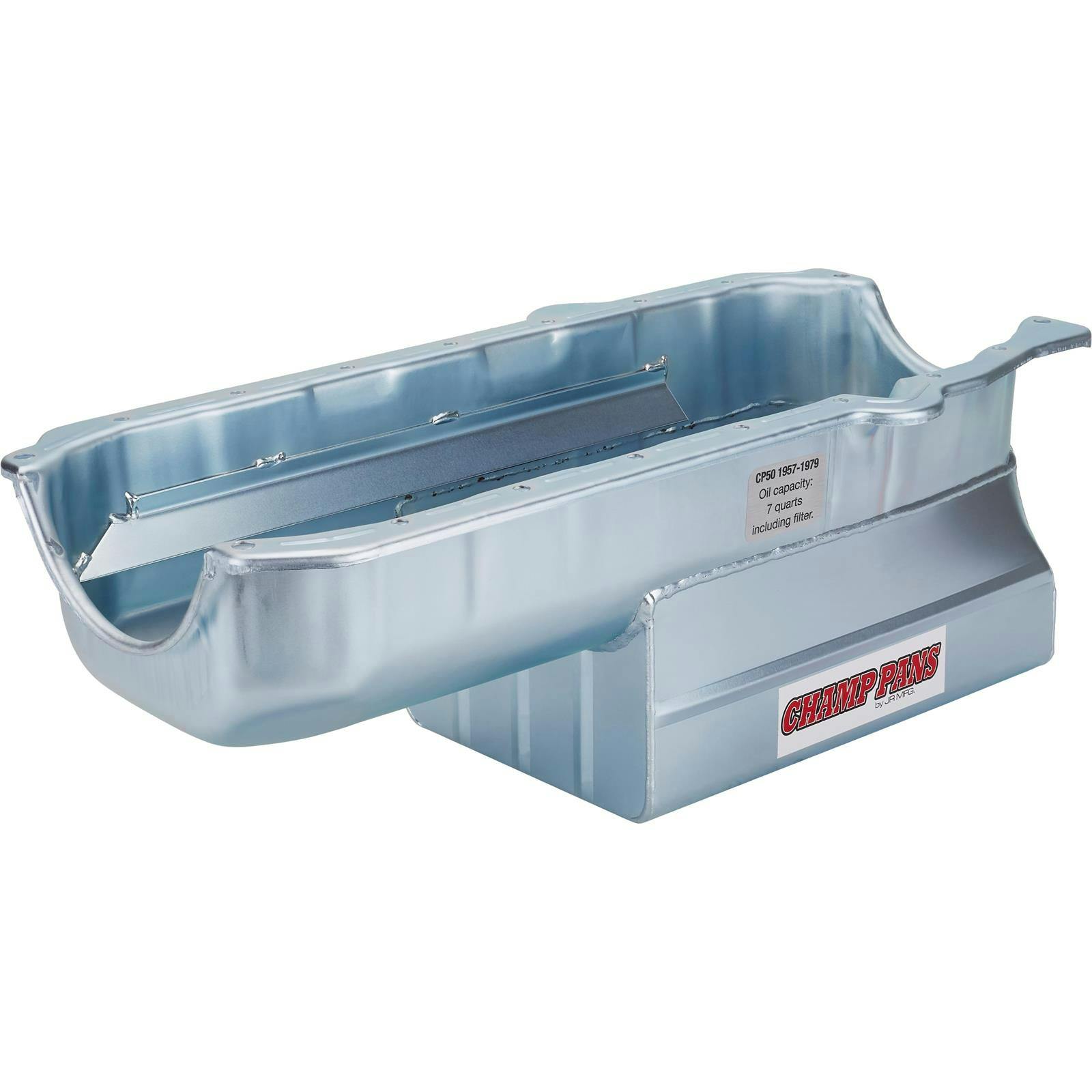

Champ Pans CP50 1957-79 Small Block Chevy Race Oil Pan, LH Dipstick
Champ Pans CP50 1957-79 Small Block Chevy Race Oil Pan, LH Dipstick

Champ Pans CP50 1957-79 Small Block Chevy Race Oil Pan, LH Dipstick

Chevy Small Block V8, Wet Sump Sump Style, Rear Sump Location, 7 quarts Liquid Measurement

5 Reviews | 6 Answered Questions
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Limited Qty
Select your vehicle to verify fitment.
Select Vehicle
Champ Pans CP50 1957-79 Small Block Chevy Race Oil Pan, LH Dipstick
Champ Pans CP50 1957-79 Small Block Chevy Race Oil Pan, LH Dipstick
Champ Pans CP50 1957-79 Small Block Chevy Race Oil Pan, LH Dipstick
Champ Pans CP50 1957-79 Small Block Chevy Race Oil Pan, LH Dipstick
X
Champ Pans CP50 1957-79 Small Block Chevy Race Oil Pan, LH Dipstick
Champ Pans CP50 1957-79 Small Block Chevy Race Oil Pan, LH Dipstick
Zoomed In Image
Part # 91015137
$149.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
  • Specifically designed for the 1957-1979 Small Block Chevy
  • Ideal for street, strip, road racing, and circle tracks
  • Features a 7-3/4" deep pan with one large trap door
  • Has an integrated crank scraper and two runners
  • Oil capacity is 7 quarts and has a filter attached

Details

Sump Style:
Wet Sump
Sump Location:
Rear
Liquid Measurement:
7 quarts
Material Type:
Steel
Depth:
7.75"
Rear Main Seal Style:
2-piece
Finish:
Zinc Plated
Has Dipstick Provision:
Yes
Dipstick Location:
Driver Side
Oil Inspection Plug:
No
Inside Length:
12"
Crank Scraper Included:
Yes
MFG. Part #:
CP50
Sold in Quantity:
Each

Info

These small block Chevy oil pans work great for street, strip, road racing, and circle tracks. They feature a 7-3/4" deep pan with one large trap door, one crank scraper and two runners. The oil capacity is 7 quarts with a filter attached. Will work with stock size starters.

Specs

  • Dimensions: 7-3/4" deep x 7-3/4" wide x 12" long
  • Rear Sump: 8" deep x 12" long
  • Front Portion: 4-1/2" deep x 9" long

Important Messages

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
