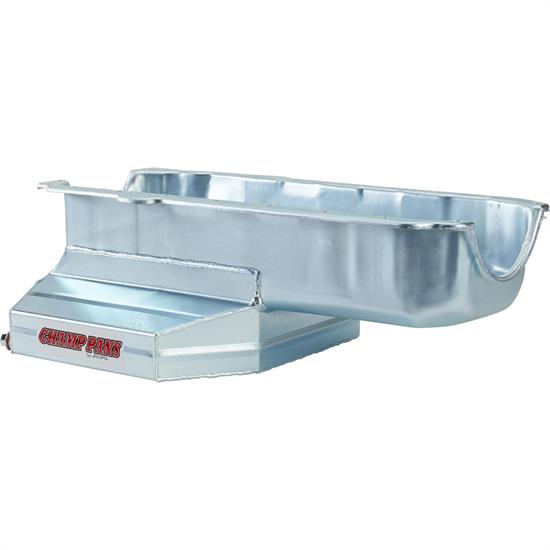

Champ Pans CP100LT Small Block Chevy Pan, 1957-1985
Champ Pans CP100LT Small Block Chevy Pan, 1957-1985
Chevy Small Block V8, Wet Sump Sump Style, 8 quarts Liquid Measurement, Steel, 7.00" Depth
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
Champ Pans CP100LT Small Block Chevy Pan, 1957-1985
X
Part # 91015118
$274.99
$286.50
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
- Measures 7” deep x 14” wide x 12” long
- Has an oil capacity of 8 quarts with the filter installed
- Comes with a removable horsepower saving louvered windage tray
- Specially designed for the Camaro front stub with the engine set back
- Features an all-steel construction with a zinc plated finish for added corrosion resistance
Details
Sump Style:
Wet Sump
Liquid Measurement:
8 quarts
Material Type:
Steel
Depth:
7.00"
Finish:
Zinc Plated
Has Dipstick Provision:
Yes
Oil Inspection Plug:
Yes
Inside Width:
14.00"
Inside Length:
12.00"
Crank Scraper Included:
Yes
Windage Tray Included:
Yes
Kicked Out:
Yes
MFG. Part #:
CP100LT
Notes:
Includes oil temp fitting.
Sold in Quantity:
Each
Info
This steel pan is designed around the Camaro front stub with the engine set back. It has six trapdoors, three crank scrapers, two runners, an oil temp fitting, an oil check level plug, and a removable horsepower saving louvered windage tray.
- 7” deep x 14” wide x 12” long
- Oil capacity 8 quarts with filter
Important Messages
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
