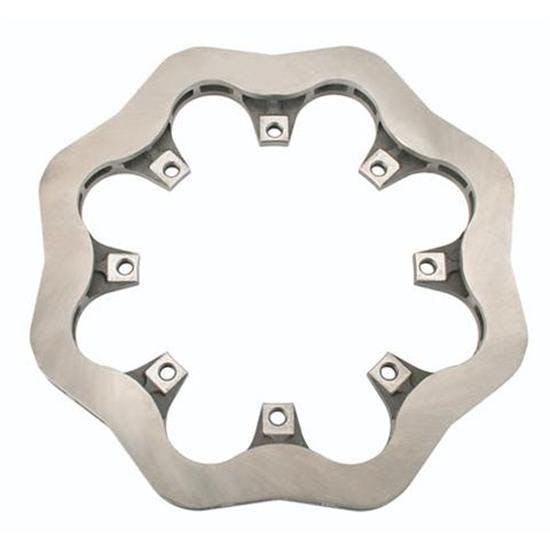

Cast Iron Scalloped Brake Rotor - 12.19 x .81 Inch

#94031060

Cast Iron Scalloped Brake Rotor - 12.19 x .81 Inch

7" 8 hole bolt circle
Thru thread

Outside Diameter / Thickness:

12.19" x 0.810"

Type:

Solid

$66.99

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Rear Position, Scalloped Rotor Shape, Vented Rotor Type

7" 8 hole bolt circle
Thru thread

See more details

Key Specs

Rotor Diameter	12.19 Inch
Rotor Style	Plain Face
Rotor Material Type	Cast Iron
Rotor Thickness	0.81"
Rotor Hat Bolt Pattern	8 x 7.00"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Installation Tips

Proper Break-In Procedure for Steel or Cast Iron Rotors

New steel/iron rotors should be bedded in before being used in racing conditions. Proper bedding will prepare the rotor surface, prolong the rotor's life, and make it more resistant to thermal checking or cracking under severe braking conditions. The following procedures should be performed when bedding in both steel and cast iron rotors. It is best to bed in a new rotor using a used set of pads, preferably ones which will not create heat rapidly. Generating heat too rapidly will thermal shock the rotors. Likewise, when bedding in a new set of brake pads it is best to perform the process on a used rotor. This new/used bedding process permits controlled bedding of each individual component.

Make sure rotor surfaces are free from oils, grease, and brake fluid. Run vehicle up to a moderate speed and make several medium deceleration stops to heat up the rotor slowly. This will help reduce the chance of thermal shock caused by uneven heating of the rotor. Pull into the pits and allow the rotor to cool to ambient air temperature. Care should be taken not to ride the brakes into the pits as this may hot spot the rotor causing premature wear to the surface or structural damage.

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

Speedway Motors 94031060 Details

Speedways premium 32 Vane scalloped cast iron brake rotors weigh only 6.13 lbs. 12.19" x .81", 8 on 7 thru.

Item Details

0.81 X 12.19
8 x 7" B.C.

Specs

Vented iron
Inboard mounted (Sprints)
Thickness: 0.81"
O.D.: 12.19"
Bolt Circle: 8 x 7"
Threads: Thru
Weight: 6.13 lbs
Face: scalloped

CA Prop 65

Speedway Motors 94031060 Specifications

KEY SPECS
MFG. Part #	94031060
Brand	Speedway Motors
Rotor Diameter	12.19 Inch
Rotor Style	Plain Face
Rotor Material Type	Cast Iron
Rotor Thickness	0.81"
Rotor Hat Bolt Pattern	8 x 7.00"

GENERAL
Position	Rear
Rotor Shape	Scalloped
Rotor Type	Vented
Rotor Finish	Plain
Weight	6.13 lbs.
Sold in Quantity	Each
