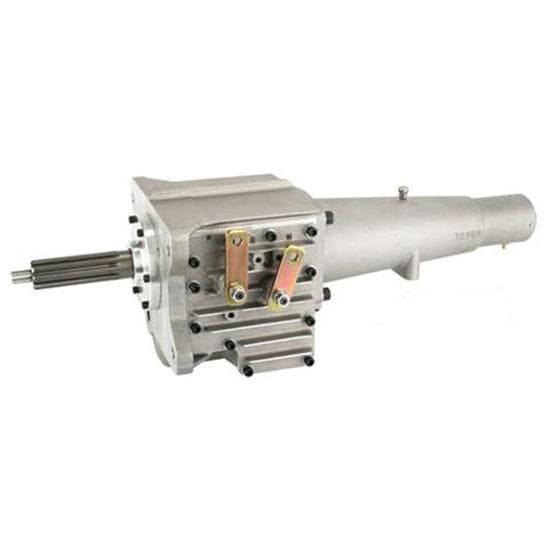

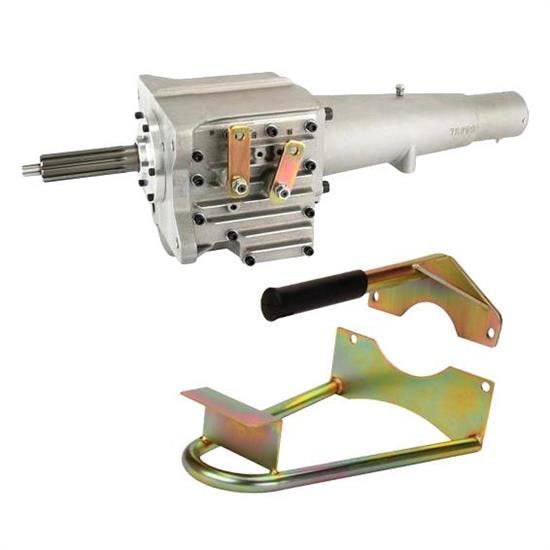

Brinn 70001 Racing Transmission with Free Stand

#2207000

Brinn 70001 Racing Transmission with Free Stand

Name: Brinn 70001 Racing Transmission with Free Stand
Brand: Brinn
SKU: 2207000
Price: 2452.99 USD
Availability: InStock
Rating: 5 (1 reviews)

1 Review

5 Questions

IMCA Approved for Stock Car, Modified, and Late Model classes
Eliminates clutch assembly and throw-out bearing assembly
Input and output shafts are gundrilled for reduced weight

$2,452.99

/kit

In Stock

$2,489.98

Save $36.99

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Brinn, 2-Speed Transmission Speeds, 600 ft./lbs. Torque

IMCA Approved for Stock Car, Modified, and Late Model classes
Eliminates clutch assembly and throw-out bearing assembly
Input and output shafts are gundrilled for reduced weight

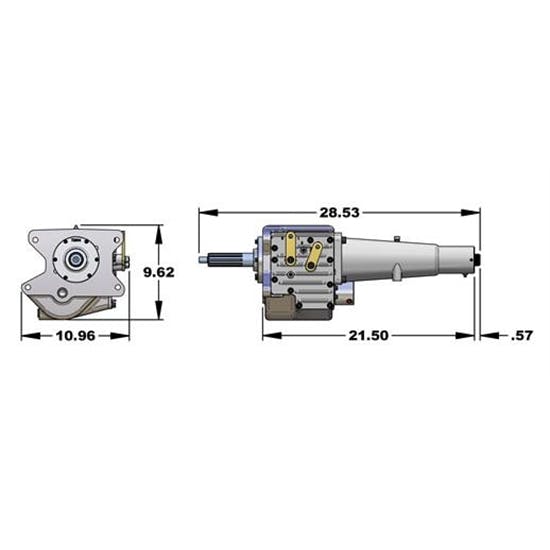

Measures 6" long and has a 27 tooth output shaft spline that will accept any length yoke
A superior dog clutch design provides the most durability and the smoothest shifting available

Comes as a Kit

View Kit Components

See more details

Key Specs

MFG. Part #	70001
Brand	Brinn
Transmission Speeds	2-Speed
Input Shaft Spline Count	10
Input Shaft Diameter	1.0625"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Brinn 70001 Details

We keep this Brinn Racing Transmissions in stock. With the low rotating weight, internal clutch and smooth shifting, they are hard to beat. Bolts in place of stock GM transmissions. Crank drive flange not included.

IMCA approved for Stock Car, Modified, and Late Model classes
The input and output shafts are gundrilled for reduced weight
Superior dog clutch design provides the most durability and the smoothest shifting available
Low cost - eliminates clutch assembly and throwout bearing assembly
Dog clutch and detent design eliminate the need for special shifters
Six inch long, 27 tooth output shaft spline that will accept any length yoke
SAE 10 tooth input shaft spline
Feed line is 1/8"-27 NPT (fitting not included)
Low gear ratio: 1.88:1
Reverse gear ratio: 2.29:1
Shafts and gears are cryogenically treated

Order 22070041 for a Brinn Transmission Rebuild Kit.

Item Details

Standard with Aluminum Case

Brinn 70001 Specifications

KEY SPECS
MFG. Part #	70001
Brand	Brinn
Transmission Speeds	2-Speed
Input Shaft Spline Count	10
Input Shaft Diameter	1.0625"

GENERAL
Torque	600 ft./lbs.
Output Shaft Spline Diameter	1.1875"
Output Shaft Spline Count	27
Case Material	Aluminum
Bellhousing Included	No
Yoke Included	No
Shifter Included	No
Gear Ratio (Low)	1.88:1
Gear Ratio (Reverse)	2.29:1
Notes	1-3/8"-10 spline input shaft. 1-3/16"-27 spline output shaft.
Sold in Quantity	Each
Yoke Style	Slip On
Shifter Style	Linkage operated
