Brawler BR-67214 850 CFM Street Carb Fuel Deliv. Kit/Air Cleaner

#9109276

Brawler BR-67214 850 CFM Street Carb Fuel Deliv. Kit/Air Cleaner

Machined and assembled by craftsman right here in the USA
850 CFM
Mechanical secondary

$832.99

In Stock

$844.92

Save $11.93

Quantity

Need Help? Call to Order

Add to a list

Product Summary

Universal Fit, 4-Barrel Carburetor Barrels, 850 CFM CFM

Machined and assembled by craftsman right here in the USA
850 CFM
Mechanical secondary
14" diameter and 3" tall filter element
Black nylon race hose/crimped hose assembly with provisions for a fuel pressure gauge

Comes as a Kit

View Kit Components

See more details

Key Specs

Brand	Brawler
CFM	850 CFM
Finish	Polished
Material Type	Aluminum

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Details

Top off your engine with these carburetor air/fuel installation kits.

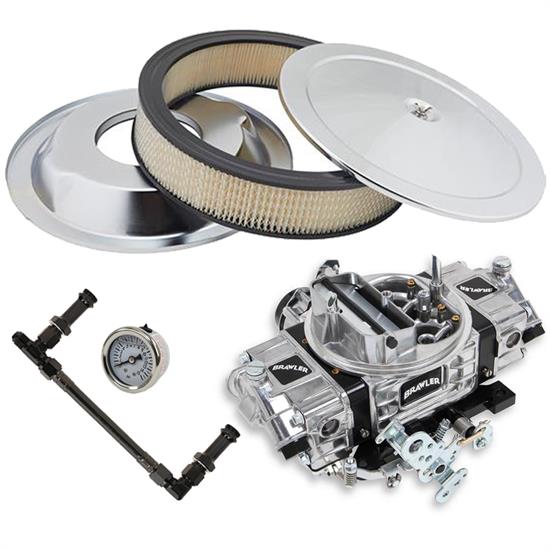

Kit Includes:

(1) Brawler BR-67214 Street Carburetor, Mechanical Secondary, 850 CFM
(1) Chrome Deep Dish Performance Air Cleaner, 14 x 3 Inch
(1) Fragola 930023-BL Fuel Line Kit, 4150 Braided Fuel Log, AN8
(1) Liquid-Filled Fuel Pressure Gauge, 0-15 PSI

Brawler BR-67214 Street Carburetor, Mechanical Secondary, 850 CFM

Machined and assembled by craftsman right here in the USA
Brawlers come with the latest technology in air/fuel calibrations for today’s street engine demands
Made from light-weight diecast aluminum components
Offers all the tunability and options that you would find from more expensive carburetors in the market, including a beautiful appearance, electric choke, and four-corner idle adjustment on all mechanical secondary models
850 CFM
Mechanical secondary
Brawler Street models include black billet metering blocks and throttle bodies with precision throttle shafts to ensure long term performance

Chrome Deep Dish Performance Air Cleaner, 14 x 3 Inch

This air cleaner has a "drop" base, meaning that the bottom of the air cleaner sits 1-1/4" below the top flange of the carb.
The top of the air cleaner sits 2-5/8" above the top flange of the carb.

Chrome plated steel
14" diameter and 3" tall filter element
Fits 4 barrel carbs with 5-1/8" neck
Includes stud and wing nut
Triple process plating for brightest finish and long life
Non-restricting, flame proof filter
Performance designed for increased breathing
Designed for universal applications

Fragola 930023-BL Fuel Line Kit, 4150 Braided Fuel Log, AN8

Black nylon race hose/crimped hose assembly with provisions for a fuel pressure gauge
Fits Holley 4150-style mechanical secondary Double Pumper (center hung float bowl) 4-BBL carburetors with 9-1/4" centers
-8 AN fittings
Anodized black finish
1/8" NPT
9.25" Center to center
Braided Nylon Line
10.75" overall length

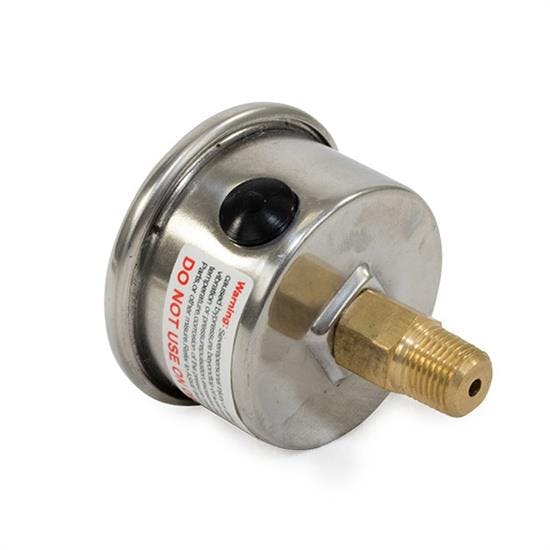

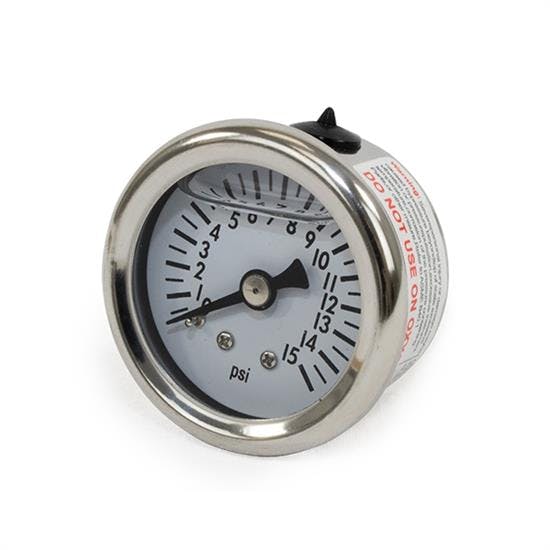

Liquid-Filled Fuel Pressure Gauge, 0-15 PSI

Appropriate fuel pressure is important for adjusting your fuel system to achieve optimal performance
Built for superior precision
Liquid filled
0-15 PSI
1-1/2" diameter
Analog mechanical
1/8" NPT

Charts

Installation Instructions

Guides & Documents

Carburetor/Air Cleaner Kits Installation Instructions (9109276)

Carburetors Installation Instructions (424BR67214)

Determining the Best Performance Carburetor For Your Application

Specifications

KEY SPECS
Brand	Brawler
CFM	850 CFM
Finish	Polished
Material Type	Aluminum

GENERAL
Sold in Quantity	Kit
Carburetor Barrels	4-Barrel
Carburetor Flange Type	4-Barrel Square Bore
Fuel Type	Gasoline
Choke Type	Electric
CFM Range	800-899 CFM
Color	Black
Secondary Type	Mechanical
Fuel Inlet Type	Dual
Booster	Down-leg
Bolt Hole Pattern	5.160" x 5.625"
