Bilstein XVS Series Non-Base Valve Digressive Shock Absorbers

Name: Bilstein XVS Series Non-Base Valve Digressive Shock Absorbers
Brand: Bilstein
SKU: 21347

Write a Review

Ask a Question

Stroke:

Select a stroke

Rebound:

Select a rebound

Compression:

Select a compression

Gas Pressure:

Select a gas pressure

$308.99

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Key Specs

Shock Type	Mono Tube
Shock Adjustability	Non-Adjustable
Shock Body Material	Steel
Body Diameter	Select Compression, Gas Pressure, Rebound and Stroke
Shock Body Type	Smooth

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Details

These new Bilstein XVS Series non-base valve digressive shocks feature a 46mm steel body and are designed for Late Models and Modifieds. They are completely racer rebuildable and revalvable. These shocks are available with a gas pressure setting for either low, standard, or high. This helps control cavitation and can promote "hike".

46mm steel body monotube shocks designed for, but not limited to, Late Models and Modifieds
Extreme volume nitrogen bulb minimizes rod pressure gain
Zinc plated for rapid heat dissipation
Digressive valving without base valve
Completely racer rebuildable and revalvable
Coil over compatible
Specify stroke, rebound, compression, and with low, standard , or high gas pressure

Note: Gas - Gas pressure

Low, Std., or High - Helps control cavitation and can promote "hike"

Charts

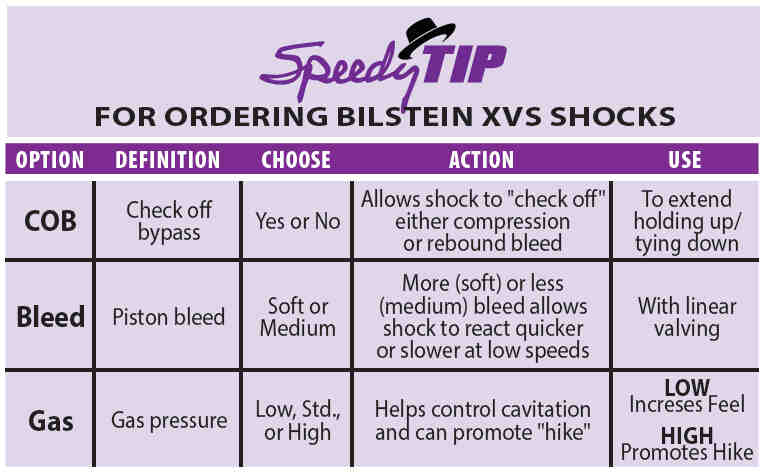

Bilstein XVS Shock Options (JPG)

Specs

7" Stroke 20.15" extended 13.35" compressed

9" Stroke 23.76" extended 15.24" compressed

Guides & Documents

Shocks Technical Information (21347)

Specifications

KEY SPECS
Brand	Bilstein
Shock Type	Mono Tube
Shock Adjustability	Non-Adjustable
Shock Body Material	Steel
Body Diameter	Select Compression, Gas Pressure, Rebound and Stroke to see
Shock Body Type	Smooth
Shock Body Size	Large Body
Shock Stroke Range	Select Compression, Gas Pressure, Rebound and Stroke to see
Position	Front and Rear
Stroke	7"
Compression Valving	Select Compression, Gas Pressure, Rebound and Stroke to see
Rebound Valving	Select Compression, Gas Pressure, Rebound and Stroke to see
Mount Position	Stock Mount
Upper Shock Mount	1/2" Spherical Rod End
Lower Shock Mount	1/2" Spherical Rod End
Extended Length Range	Select Compression, Gas Pressure, Rebound and Stroke to see
Extended Length	Select Compression, Gas Pressure, Rebound and Stroke to see
Compressed Length Range	13.00" to 13.99"
Finish	Zinc Plated
Compressed Length	Select Compression, Gas Pressure, Rebound and Stroke to see
Gas Charged	Yes

GENERAL
Rebuildable	Yes
Schrader Valve	No
Shock Stroke	Select Compression, Gas Pressure, Rebound and Stroke to see
Inside Diameter	46 mm
Sold in Quantity	Each
