Black Friday BONUS! Get a FREE $20 Gift Card With Your $200 Order*.
PROMO: BLKOUT. Offer Valid 11/21/17 - 11/26/17.
Add to Cart
$299.99
$289.99

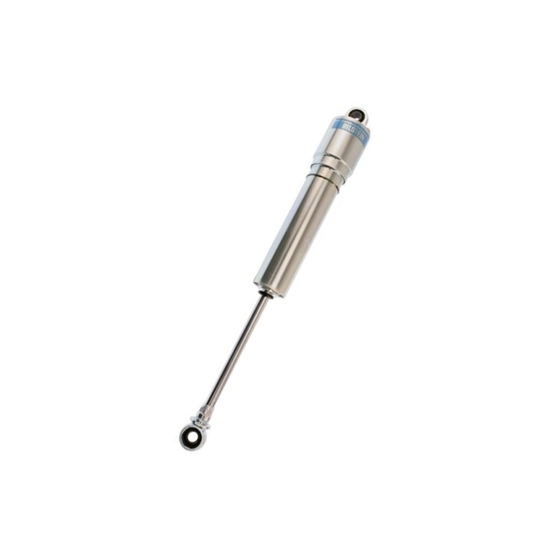

Bilstein XVS Series Non-Base Valve COB Shock Absorbers
Bilstein XVS Series Non-Base Valve COB Shock Absorbers

Bilstein XVS Series Non-Base Valve COB Shock Absorbers

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Bilstein XVS Series Non-Base Valve COB Shock Absorbers
Bilstein XVS Series Non-Base Valve COB Shock Absorbers
Zoomed In Image
Part # 21357
$289.99
$299.99
each
Quantity:
Gas Pressure
Stroke
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Shock Type:
Mono Tube
Shock Body Material:
Steel
Shock Body Size:
Large Body
Shock Body Type:
Smooth
Shock Stroke Range:
Select Compression/Rebound/Stroke/Gas Pressure to see
Shock Stroke:
Select Compression/Rebound/Stroke/Gas Pressure to see
Upper Shock Mount:
Select Compression/Rebound/Stroke/Gas Pressure to see
Lower Shock Mount:
Select Compression/Rebound/Stroke/Gas Pressure to see
Extended Length:
Select Compression/Rebound/Stroke/Gas Pressure to see
Compressed Length:
Select Compression/Rebound/Stroke/Gas Pressure to see
Extended Length Range:
Select Compression/Rebound/Stroke/Gas Pressure to see
Compressed Length Range:
Select Compression/Rebound/Stroke/Gas Pressure to see
Compression Valving:
Select Compression/Rebound/Stroke/Gas Pressure to see
Rebound Valving:
Select Compression/Rebound/Stroke/Gas Pressure to see
Schrader Valve:
No
Finish:
Zinc Plated
Coil-Over Compatible:
Yes
Body Diameter:
2.00"
MFG. Part #:
Select Compression/Rebound/Stroke/Gas Pressure to see
Sold in Quantity:
Each
Inside Diameter:
46 mm
Bulb Diameter:
2.48"
Shock Eyelet Width:
.630"
Hardware Included:
No
Gas Charged:
Yes

Info

These new Bilstein XVS Series non-base valve COB shocks feature a 46mm steel body and are designed for Late Models and Modifieds.  They are completely racer rebuildable and revalvable.  These shocks are available with a gas pressure setting for either low, standard, or high.  This helps control cavitation and can promote "hike".
  • 46mm steel body monotube shocks designed for, but not limited to, Late Models and Modifieds
  • Extreme volume nitrogen bulb minimizes rod pressure gain
  • Zinc plated for rapid heat dissipation
  • COB valving without base valve
  • Completely racer rebuildable and revalvable
  • Coil over compatible
  • Specify stroke, rebound, compression, and with low, standard , or high gas pressure
  • Bilstein XVS Shock Options

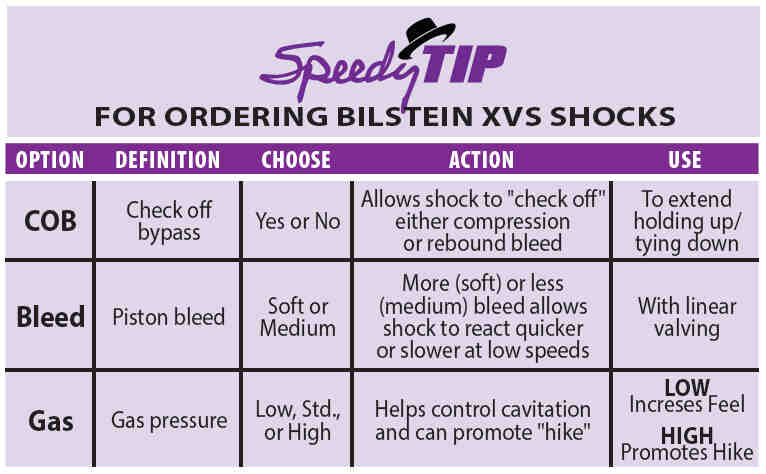

Note:  Gas - Gas pressure

Low, Std., or High - Helps control cavitation and can promote "hike"

Specs

7" Stroke  20.15" extended  13.35" compressed

9" Stroke  23.76" extended  15.24" compressed

Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
Select a Compression/Rebound/Stroke/Gas Pressure above to see what items are in this kit.
