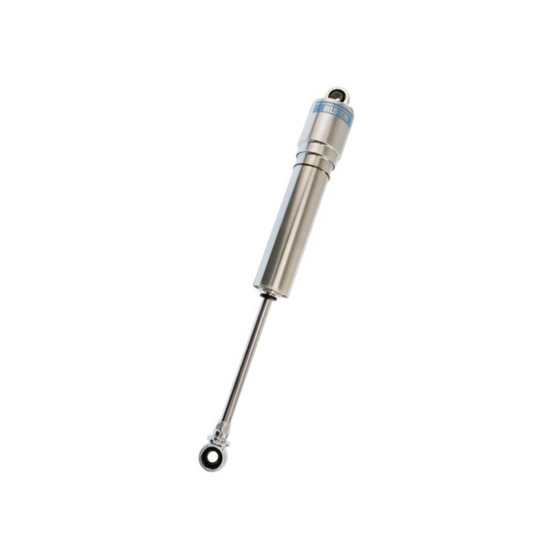

Bilstein XVS Series Base Valve Linear Shock Absorbers

Name: Bilstein XVS Series Base Valve Linear Shock Absorbers
Brand: Bilstein
SKU: 21339

Write a Review

Ask a Question

Stroke:

Select a stroke

Rebound:

Select a rebound

Compression:

Select a compression

Bleed:

Select a bleed

$349.99

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Key Specs

Shock Type	Mono Tube
Shock Adjustability	Non-Adjustable
Shock Body Material	Steel
Body Diameter	Select Bleed, Compression, Rebound and Stroke
Shock Body Type	Smooth

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Details

These new Bilstein XVS Series base valve linear shocks feature a 46mm steel body and are designed for Late Models and Modifieds. They are completely racer rebuildable and revalvable. These shocks are available with a soft or medium piston bleed, which allows the shock to react quicker or slower at low speeds.

46mm steel body monotube shocks designed for, but not limited to, Late Models and Modifieds
Extreme volume nitrogen bulb minimizes rod pressure gain
Zinc plated for rapid heat dissipation
Linear valvings with base valve
Completely racer rebuildable and revalvable
Coil over compatible
Specify stroke, rebound, compression, and soft (S) or medium (M) piston bleed

Note: Bleed - Piston bleed

Soft or Medium - More (soft) or less (medium) bleed allows shock to react quicker or slower at low speeds

Charts

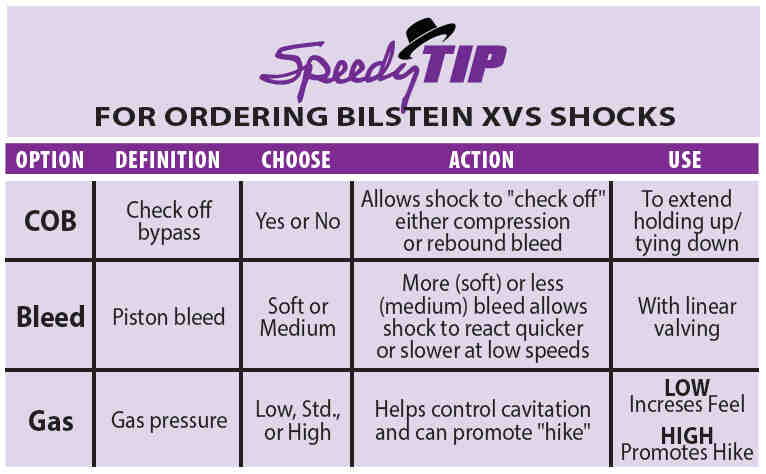

Bilstein XVS Shock Options (JPG)

Specs

6" Stroke 19.3" extended 13.35" compressed

7.5" Stroke 22.77" extended 15.24" compressed

Guides & Documents

Shocks Technical Information (21339)

Specifications

KEY SPECS
MFG. Part #	Select Bleed, Compression, Rebound and Stroke to see
Brand	Bilstein
Shock Type	Mono Tube
Shock Adjustability	Non-Adjustable
Shock Body Material	Steel
Body Diameter	Select Bleed, Compression, Rebound and Stroke to see
Shock Body Type	Smooth
Shock Body Size	Large Body
Shock Stroke Range	Select Bleed, Compression, Rebound and Stroke to see
Position	Front and Rear
Stroke	Select Bleed, Compression, Rebound and Stroke to see
Compression Valving	Select Bleed, Compression, Rebound and Stroke to see
Rebound Valving	Select Bleed, Compression, Rebound and Stroke to see
Mount Position	Stock Mount
Upper Shock Mount	1/2" Spherical Rod End
Lower Shock Mount	1/2" Spherical Rod End
Extended Length Range	Select Bleed, Compression, Rebound and Stroke to see
Extended Length	Select Bleed, Compression, Rebound and Stroke to see
Compressed Length Range	13.00" to 13.99"
Finish	Zinc Plated
Compressed Length	Select Bleed, Compression, Rebound and Stroke to see
Gas Charged	Yes

GENERAL
Rebuildable	Yes
Schrader Valve	No
Shock Stroke	Select Bleed, Compression, Rebound and Stroke to see
Coil-Over Compatible	Yes
Valve Positions	Select Bleed, Compression, Rebound and Stroke to see
Bushing Material	Steel
Inside Diameter	46 mm
Bulb Diameter	2.48"
Shock Eyelet Width	.630"
Bolt Hole Circle	.500"
Hardware Included	No
Notes	MADE TO ORDER
Sold in Quantity	Each
