Black Friday BONUS! Get a FREE $20 Gift Card With Your $200 Order*.
PROMO: BLKOUT. Offer Valid 11/21/17 - 11/26/17.
Add to Cart
$349.99

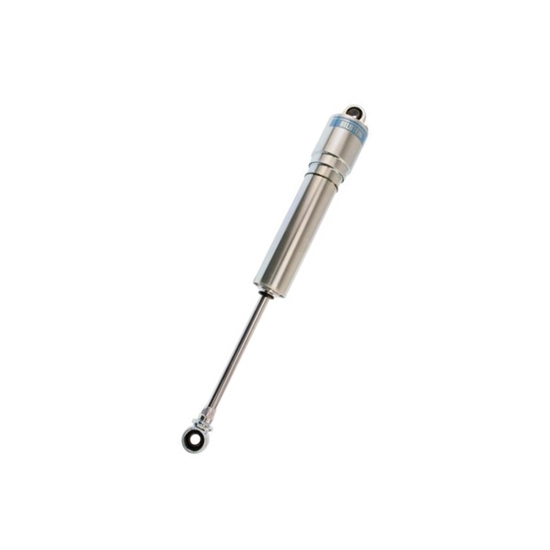

Bilstein XVS Series Base Valve Digressive Shock Absorbers
Bilstein XVS Series Base Valve Digressive Shock Absorbers

Bilstein XVS Series Base Valve Digressive Shock Absorbers

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Bilstein XVS Series Base Valve Digressive Shock Absorbers
Bilstein XVS Series Base Valve Digressive Shock Absorbers
Zoomed In Image
Part # 21337
$349.99
each
Quantity:
Cob N=0 Y=1
Stroke
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Shock Type:
Mono Tube
Shock Body Material:
Steel
Shock Body Size:
Large Body
Shock Body Type:
Smooth
Shock Stroke Range:
Select Compression/Rebound/Stroke/Cob N=0 Y=1 to see
Shock Stroke:
Select Compression/Rebound/Stroke/Cob N=0 Y=1 to see
Upper Shock Mount:
1/2" Spherical Rod End
Lower Shock Mount:
1/2" Spherical Rod End
Extended Length:
Select Compression/Rebound/Stroke/Cob N=0 Y=1 to see
Compressed Length:
Select Compression/Rebound/Stroke/Cob N=0 Y=1 to see
Extended Length Range:
Select Compression/Rebound/Stroke/Cob N=0 Y=1 to see
Compressed Length Range:
Select Compression/Rebound/Stroke/Cob N=0 Y=1 to see
Compression Valving:
Select Compression/Rebound/Stroke/Cob N=0 Y=1 to see
Rebound Valving:
Select Compression/Rebound/Stroke/Cob N=0 Y=1 to see
Schrader Valve:
No
Finish:
Zinc Plated
Coil-Over Compatible:
Yes
Body Diameter:
2.00"
Valve Positions:
Select Compression/Rebound/Stroke/Cob N=0 Y=1 to see
Bushing Material:
Steel
MFG. Part #:
Select Compression/Rebound/Stroke/Cob N=0 Y=1 to see
Sold in Quantity:
Each
Notes:
MADE TO ORDER
Inside Diameter:
46 mm
Bulb Diameter:
2.48"
Shock Eyelet Width:
.630"
Bolt Hole Circle:
.500"
Hardware Included:
No
Gas Charged:
Yes

Info

These new Bilstein XVS Series base valve digressive shocks feature a 46mm steel body and are designed for Late Models and Modifieds.  They are completely racer rebuildable and revalvable.  These shocks are available with or without a check off bypass, which allows the shock to "check off" either compression or rebound bleed to extend holding up/tying down.
  • 46mm steel body monotube shocks designed for, but not limited to, Late Models and Modifieds
  • Extreme volume nitrogen bulb minimizes rod pressure gain
  • Zinc plated for rapid heat dissipation
  • Digressive valvings with base valve
  • Completely racer rebuildable and revalvable
  • Coil over compatible
  • Specify stroke, rebound, compression, and with (1) or without(0) COB (check off bypass)
  • Bilstein XVS Shock Options
Note:  COB - Check off bypass

Allows shock to "check off" either compression or rebound bleed to extend holding up/tying down

Specs

6" Stroke    19.3" extended    13.35" compressed

7.5" STroke  22.77" extended   15.24" compressed

Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
Select a Compression/Rebound/Stroke/Cob N=0 Y=1 above to see what items are in this kit.
