Bilstein S9Z-3545 2 In Shcok 9 In Stroke w/ Ends-Reb 3.5/Comp 4.5
Bilstein S9Z-3545 2 In Shcok 9 In Stroke w/ Ends-Reb 3.5/Comp 4.5

Bilstein S9Z-3545 2 In Shcok 9 In Stroke w/ Ends-Reb 3.5/Comp 4.5

Dirt Late Model, Modified, Stock Car, Mono Tube Shock Type, Steel Shock Body Material

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Bilstein S9Z-3545 2 In Shcok 9 In Stroke w/ Ends-Reb 3.5/Comp 4.5
Bilstein S9Z-3545 2 In Shcok 9 In Stroke w/ Ends-Reb 3.5/Comp 4.5
Zoomed In Image
Part # 213S9Z3545
$114.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Shock Type:
Mono Tube
Shock Body Material:
Steel
Shock Body Size:
Large Body
Shock Body Type:
Smooth
Shock Stroke Range:
9.00" to 9.99"
Shock Stroke:
9.00
Upper Shock Mount:
1/2" Spherical Rod End
Lower Shock Mount:
1/2" Spherical Rod End
Extended Length:
23.44"
Compressed Length:
14.94"
Extended Length Range:
23.00" to 23.99"
Compressed Length Range:
14.00" to 14.99"
Compression Valving:
45
Rebound Valving:
35
Finish:
Zinc Plated
Coil-Over Compatible:
Yes
Body Diameter:
2.00"
Valve Positions:
45 compression - 35 rebound
Bushing Material:
Steel
MFG. Part #:
S9Z3545
Sold in Quantity:
Each
Inside Diameter:
46 mm
Shock Eyelet Width:
.630"
Bolt Hole Circle:
.500"
Hardware Included:
No

Info

These Bilstein mono tube gas shocks feature the latest development in shock valving technology; digressive valving. This delivers a new level of control by damping slow suspension movements more effectively while not allowing the chassis to be upset by sharp bumps.

Bilstein has set the standard for years in Indy Car, NASCAR, and Formula 1. Now it is setting the standard for Modifieds, Late Models and Open Wheel cars with these SZ Series S9Z shocks.

23.44" extended, 14.94" collapsed, 19.75" mounting, 8.5" travel.

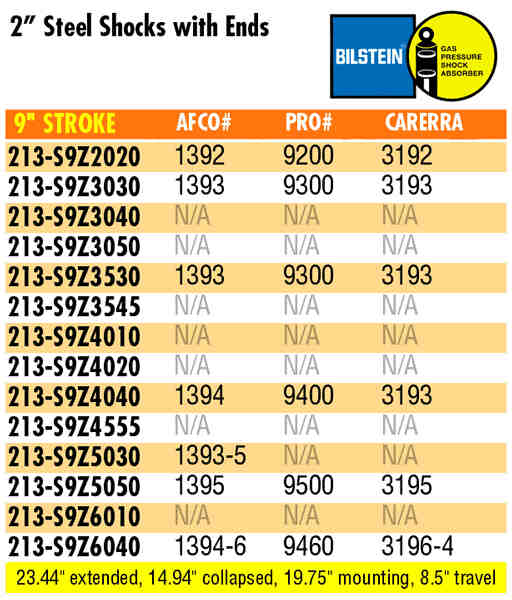

Bilstein Shock Application Chart (GIF)

Some parts are not legal for use in California or other states with similar laws/regulations
