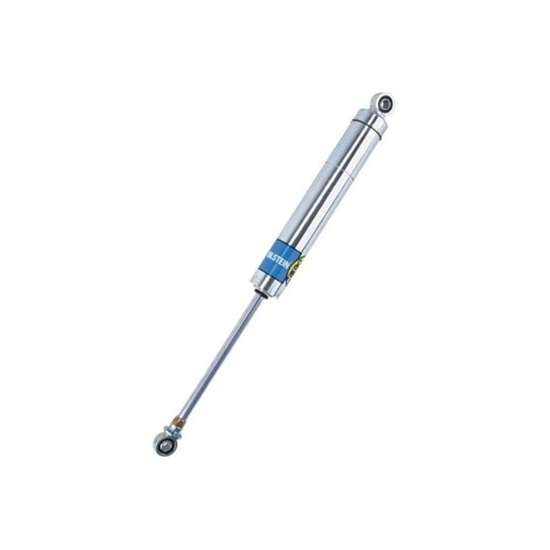

Bilstein S9Z-1090 2 In Shock-9 In Stroke w/ Ends-Reb 1/Comp 9

#213S9Z1090

Bilstein S9Z-1090 2 In Shock-9 In Stroke w/ Ends-Reb 1/Comp 9

Shocks have a monotube gas design with a large, smooth, steel body
Upper and lower mounts each have a 1/2" spherical rod end
They measure 23.44" extended and 14.94" collapsed with a total of 8.5" of travel

$171.00

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Dirt Late Model, Modified, Stock Car, 1 Rebound Valving

Shocks have a monotube gas design with a large, smooth, steel body
Upper and lower mounts each have a 1/2" spherical rod end
They measure 23.44" extended and 14.94" collapsed with a total of 8.5" of travel
Engineered to deliver a new level of control by damping slow suspension movements more effectively
Body has a 2" diameter and has a zinc plated finish of added rust protection

See more details

Key Specs

Shock Type	Mono Tube
Shock Adjustability	Non-Adjustable
Shock Body Material	Steel
Body Diameter	2"
Shock Body Type	Smooth

See more specs

Need To Know

Made to Order

This custom item will ship when completed

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Bilstein S9Z1090 Details

These Bilstein mono tube gas shocks feature the latest development in shock valving technology; digressive valving. This delivers a new level of control by damping slow suspension movements more effectively while not allowing the chassis to be upset by sharp bumps.

Bilstein has set the standard for years in Indy Car, NASCAR, and Formula 1. Now it is setting the standard for Modifieds, Late Models and Open Wheel cars with these SZ Series S9Z shocks.

23.44" extended, 14.94" collapsed, 19.75" mounting, 8.5" travel.

Item Details

Rebound:Comp
1:9

Speedway Motors is an authorized Bilstein shock builder. Some Bilstein shocks are supplied as partial assemblies and are completed in-house by our technicians. As a result, finished shocks may carry Speedway Motors branding.

Charts

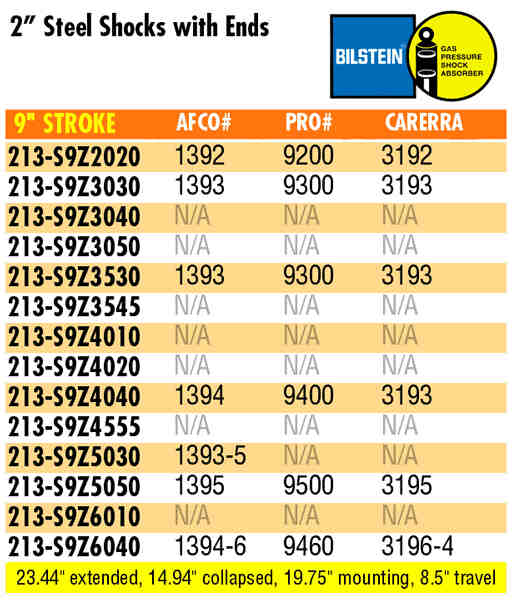

Bilstein Shock Application Chart (GIF)

Guides & Documents

Shocks Technical Information (213S9Z1090)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Bilstein S9Z1090 Specifications

KEY SPECS
MFG. Part #	S9Z1090
Brand	Bilstein
Shock Type	Mono Tube
Shock Adjustability	Non-Adjustable
Shock Body Material	Steel
Body Diameter	2"
Shock Body Type	Smooth
Shock Body Size	Large Body
Shock Stroke Range	9.00" to 9.99"
Position	Front
Stroke	9"
Compression Valving	9
Rebound Valving	1
Mount Position	Stock Mount
Upper Shock Mount	1/2" Spherical Rod End
Lower Shock Mount	1/2" Spherical Rod End
Extended Length Range	23.00" to 23.99"
Extended Length	23.44"
Compressed Length Range	14.00" to 14.99"
Finish	Zinc Plated
Compressed Length	14.94"
Gas Charged	Yes

GENERAL
Rebuildable	Yes
Shock Stroke	9.00
Coil-Over Compatible	Yes
Valve Positions	90 compression - 10 rebound
Bushing Material	Steel
Inside Diameter	46 mm
Shock Eyelet Width	.630"
Bolt Hole Circle	.500"
Hardware Included	No
Sold in Quantity	Each
GTIN Code	651860744605
