#213S9Z2060

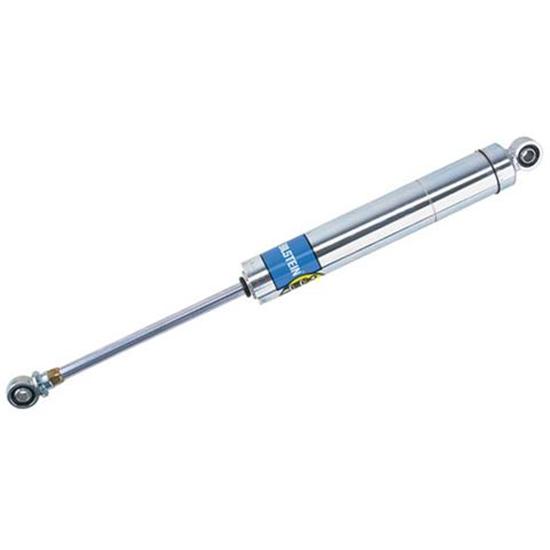

Bilstein S97-2060 2 In Shock-9 Inch Stroke w/ Ends-Reb 2/Comp 6
- Features a mono tube steel construction
- Shock stroke range measures from 9.00" to 9.99"
- Upper and lower shock mounts feature 1/2" spherical rod end
$171.00
/each
In Stock
Order soon, only 3 left in stock!
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Dirt Late Model, Modified, Stock Car, 2 Rebound Valving
- Features a mono tube steel construction
- Shock stroke range measures from 9.00" to 9.99"
- Upper and lower shock mounts feature 1/2" spherical rod end
- Zinc plated finish ensures that the shock will not be affected by corrosion
- Specifications measure 23.44" extended, 14.94" collapsed, 19.75" mounting, and 8.5" travel
Key Specs
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
Need To Know
Made to Order
This custom item will ship when completed
Need help?
855.313.9176Quick and Easy Returns
Return PolicyBilstein S9Z2060 Details
Bilstein S9Z2060 Details
These Bilstein mono tube gas shocks feature the latest development in shock valving technology; digressive valving. This delivers a new level of control by damping slow suspension movements more effectively while not allowing the chassis to be upset by sharp bumps.
Bilstein has set the standard for years in Indy Car, NASCAR, and Formula 1. Now it is setting the standard for Modifieds, Late Models and Open Wheel cars with these SZ Series S9Z shocks.
23.44" extended, 14.94" collapsed, 19.75" mounting, 8.5" travel.
Charts
Guides & Documents
Bilstein S9Z2060 Specifications
Bilstein S9Z2060 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | S9Z2060 |
| Brand | Bilstein |
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Shock Stroke Range | 9.00" to 9.99" |
| Compression Valving | 6 |
| Rebound Valving | 2 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 23.00" to 23.99" |
| Extended Length | 23.44" |
| Compressed Length Range | 14.00" to 14.99" |
| Compressed Length | 14.94" |
| Finish | Zinc Plated |
| GENERAL | |
| Shock Stroke | 9.00 |
| Coil-Over Compatible | Yes |
| Valve Positions | 60 compression - 20 rebound |
| Bushing Material | Steel |
| Sold in Quantity | Each |
| Inside Diameter | 46 mm |
| Shock Eyelet Width | .630" |
| Bolt Hole Circle | .500" |
| Hardware Included | No |
| GTIN Code | 651860744599 |
