#213S7Z5555

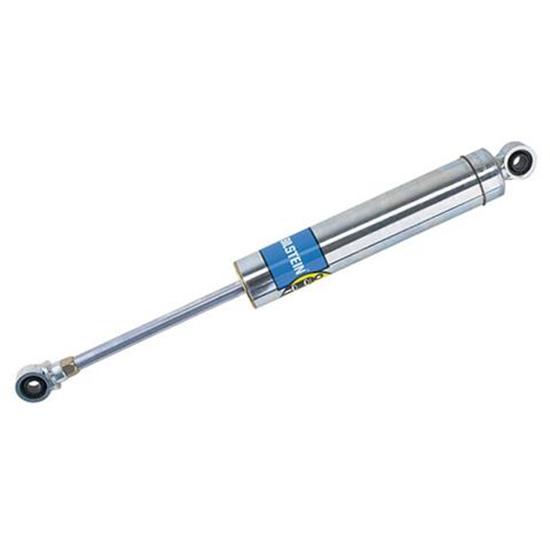

Bilstein S7Z-5555 2 In Shock w/Ends, 7 In, Comp 5.5/Reb 5.5
$156.99
/each
In Stock
Order soon, only 2 left in stock!
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Body Diameter | 2.00" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
Need To Know
Made to Order
This custom item will ship when completed
Need help?
855.313.9176Quick and Easy Returns
Return PolicyBilstein S7Z5555 Details
Bilstein S7Z5555 Details
These Bilstein mono tube gas shocks feature digressive valving. This delivers a new level of control by damping slow suspension movements more effectively while not allowing the chassis to be upset by sharp bumps.
Bilstein has set the standard for years in Sprint Cup, Indy Car and Formula 1. Now it is setting the standard for Modifieds, Late Models and Open Wheel cars with these SZ Series S7Z shocks.
- Comp. Length: 13.14"
- Ext. Length: 20"
- Body Dia.: 2"
Charts
Guides & Documents
Bilstein S7Z5555 Specifications
Bilstein S7Z5555 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | S7Z5555 |
| Brand | Bilstein |
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Body Diameter | 2.00" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Shock Stroke Range | 7.00" to 7.99" |
| Compression Valving | 55 |
| Rebound Valving | 55 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 20.00" to 20.99" |
| Extended Length | 20" |
| Compressed Length Range | 13.00" to 13.99" |
| Compressed Length | 13.14" |
| Finish | Zinc Plated |
| GENERAL | |
| Shock Stroke | 7.00 |
| Coil-Over Compatible | Yes |
| Valve Positions | 55 compression - 55 rebound |
| Bushing Material | Steel |
| Sold in Quantity | Each |
| Inside Diameter | 46 mm |
| Shock Eyelet Width | .630" |
| Bolt Hole Circle | .500" |
| Hardware Included | No |
| GTIN Code | 651860405889 |
