Product Summary

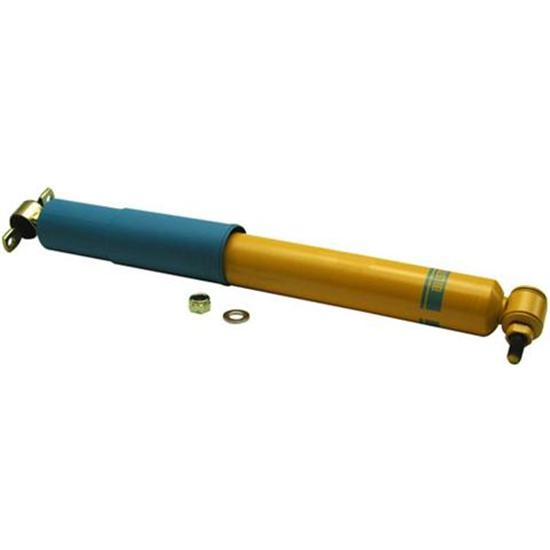

Hobby Stock, Stock Car, Mono Tube Shock Type, Painted

  • Shock is specifically designed for the 73-88 GM A/G Body
  • Has a 46mm diameter steel body
  • The monotube body dissipates heat more effectively than twin-tube designs
  • Use of nitrogen gas puts shock oil under pressure to totally prevent shock fade
  • Design allows for more precise, consistent set-ups
See more details

Key Specs

Shock TypeMono Tube
Shock Body MaterialSteel
Shock Body TypeSmooth
Shock Body SizeSmall Body
PositionRear
See more specs

Need To Know

Quick and Easy Returns

Return Policy

Bilstein F4BE5F134M0 Details

The technology that has made Bilstein a winner in Winston Cup, Indy Car and Formula 1 is now available to the grassroots level hobby stock and street stock racer. Bilstein mono tube gas shocks use deflective disc valving to give more precise and consistent valving. Plus, their rugged construction and precisely machined finishes ensure a long performance life. These shocks may cost more initially but they pay off in the winners circle!

  • 46mm diameter steel body
  • Monotube body dissipates heat more effectively than twin-tube designs
  • Nitrogen gas puts shock oil under pressure to totally prevent shock fade
  • Allows for more precise, consistent set-ups
  • Weight transfer when you need it
  • Tires will stay on the track through the rough spots
  • Better control under braking

Item Details

Valving: 70#/140# Digressive
Mounting Type: T-Bar to Cantilever
Extended Length: 20.31" Collapsed Length: 13.11"

Application

  • 1973-83 GM A-Body (Chevelle, Malibu, Monte Carlo, etc.)
  • 1978-88 GM G-Body (Monte Carlo, Regal, Cutlass, Grand Prix)

Charts

Bilstein F4BE5F134M0 Specifications

KEY SPECS
MFG. Part #F4BE5F134M0
BrandBilstein
Shock TypeMono Tube
Shock Body MaterialSteel
Shock Body TypeSmooth
Shock Body SizeSmall Body
PositionRear
Upper Shock MountT-Bar
Lower Shock MountBushed Eyelet
Extended Length Range20.00" to 20.99"
Extended Length20.31"
Compressed Length Range13.00" to 13.99"
FinishPainted
Compressed Length13.11"
GENERAL
Coil-Over CompatibleNo
Sold in QuantityEach
GTIN Code651860608112
