#213AK5555F

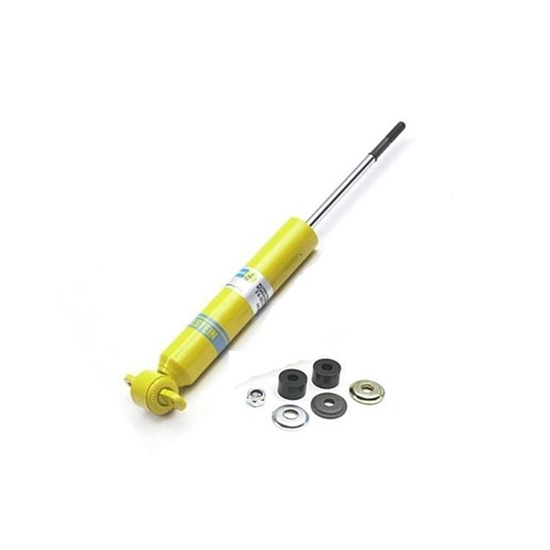

Bilstein F4-BE3-F130-MI 73-88 AG Front Shock Comp 190/Reb 245
- Offers weight transfer when you need it
- It allows for more precise, consistent set-ups
- The monotube body dissipates heat more effectively than twin-tube designs
$125.16
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Hobby Stock, Stock Car, Mono Tube Shock Type, Painted
- Offers weight transfer when you need it
- It allows for more precise, consistent set-ups
- The monotube body dissipates heat more effectively than twin-tube designs
- Engineered so that the tires will stay on the track through the rough spots
- Use of nitrogen gas puts shock oil under pressure to totally prevent shock fade
Key Specs
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Body Diameter | 1.56" |
| Shock Body Type | Smooth |
| Shock Body Size | Small Body |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyBilstein F4-BE3-F130-MO Details
Bilstein F4-BE3-F130-MO Details
The technology that has made Bilstein a winner in Winston Cup, Indy Car and Formula 1 is now available to the grassroots level hobby stock and street stock racer. Bilstein monotube gas shocks use deflective disc valving to give more precise and consistent valving. Plus, their rugged construction and precisely machined finishes ensure a long performance life. These shocks may cost more initially but they pay off in the winners circle!
- Monotube body dissipates heat more effectively than twin-tube designs
- Nitrogen gas puts shock oil under pressure to totally prevent shock fade
- Allows for more precise, consistent set-ups
- Weight transfer when you need it
- Tires will stay on the track through the rough spots
- Better control under braking
- 1973-83 GM A-Body (Chevelle, Malibu, Monte Carlo, etc.)
- 1978-88 GM G-Body (Monte Carlo, Regal, Cutlass, Grand Prix)
Item Details
Valving: 245#/190# DigressiveMounting Type: T-Bar to Pin

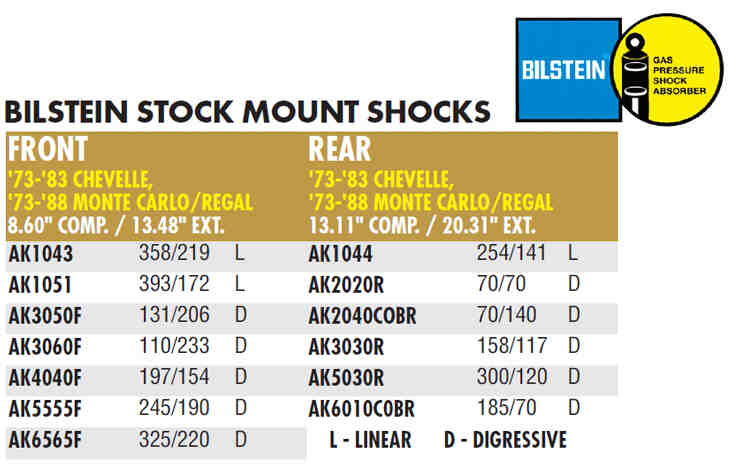

Charts
Guides & Documents
Bilstein F4-BE3-F130-MO Specifications
Bilstein F4-BE3-F130-MO Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | F4-BE3-F130-MO |
| Brand | Bilstein |
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Body Diameter | 1.56" |
| Shock Body Type | Smooth |
| Shock Body Size | Small Body |
| Position | Front |
| Upper Shock Mount | Single Stud |
| Lower Shock Mount | T-Bar |
| Extended Length Range | 13.00" to 13.99" |
| Extended Length | 13.48" |
| Compressed Length Range | 8.00" to 8.99" |
| Finish | Painted |
| Compressed Length | 8.6" |
| Gas Charged | Yes |
| GENERAL | |
| Schrader Valve | No |
| Bushing Material | Rubber |
| Centerline of Holes | 2.55" |
| Arm Length | 4.88" |
| Thread Length | 1.25" |
| Notes | Upper bushing included. |
| Sold in Quantity | Each |
| GTIN Code | 651860751863 |
