Product Summary

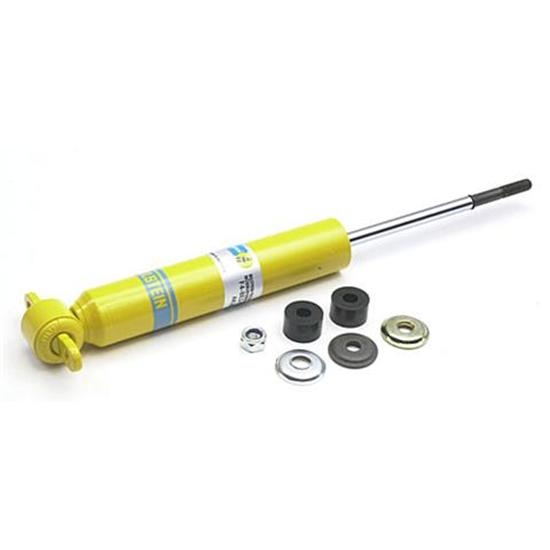

Hobby Stock, Stock Car, Mono Tube Shock Type, Painted

  • Offers weight transfer when you need it
  • It allows for more precise, consistent set-ups
  • The monotube body dissipates heat more effectively than twin-tube designs
  • Engineered so that the tires will stay on the track through the rough spots
  • Use of nitrogen gas puts shock oil under pressure to totally prevent shock fade

Key Specs

MFG. Part #F4-BE3-C751-M1
Shock TypeMono Tube
Shock Body MaterialSteel
Shock Body TypeSmooth
Shock Body SizeSmall Body

Need To Know

Free Shipping on Orders Over $149

Quick and Easy Returns

Details

The technology that has made Bilstein a winner in Winston Cup, Indy Car and Formula 1 is now available to the grassroots level hobby stock and street stock racer. Bilstein monotube gas shocks use deflective disc valving to give more precise and consistent valving. Plus, their rugged construction and precisely machined finishes ensure a long performance life. These shocks may cost more initially but they pay off in the winners circle!

  • Monotube body dissipates heat more effectively than twin-tube designs
  • Nitrogen gas puts shock oil under pressure to totally prevent shock fade
  • Allows for more precise, consistent set-ups
  • Weight transfer when you need it
  • Tires will stay on the track through the rough spots
  • Better control under braking
  • 1973-83 GM A-Body (Chevelle, Malibu, Monte Carlo, etc.)
  • 1978-88 GM G-Body (Monte Carlo, Regal, Cutlass, Grand Prix)

Item Details

Valving: 197#/154# Digressive
Mounting Type: T-Bar to Pin

Charts

Specifications

KEY SPECS
MFG. Part #F4-BE3-C751-M1
BrandBilstein
Shock TypeMono Tube
Shock Body MaterialSteel
Shock Body TypeSmooth
Shock Body SizeSmall Body
GENERAL
PositionFront
Upper Shock MountSingle Stud
Lower Shock MountT-Bar
Extended Length Range13.00" to 13.99"
Extended Length13.48"
Compressed Length Range8.00" to 8.99"
Compressed Length8.6"
Schrader ValveNo
FinishPainted
Body Diameter1.56"
Bushing MaterialRubber
Sold in QuantityEach
NotesUpper bushing included.
Centerline of Holes2.52"
Arm Length4.88"
Thread Length1.25"
Gas ChargedYes
