Product Summary

Micro Sprint, Midget, Modified, Mono Tube Shock Type

    Key Specs

    MFG. Part #S7G4545
    Shock TypeMono Tube
    Shock Body MaterialSteel
    Shock Body TypeSmooth
    Shock Body SizeSmall Body

    Need To Know

    Free Shipping on Orders Over $149

    Quick and Easy Returns

    Details

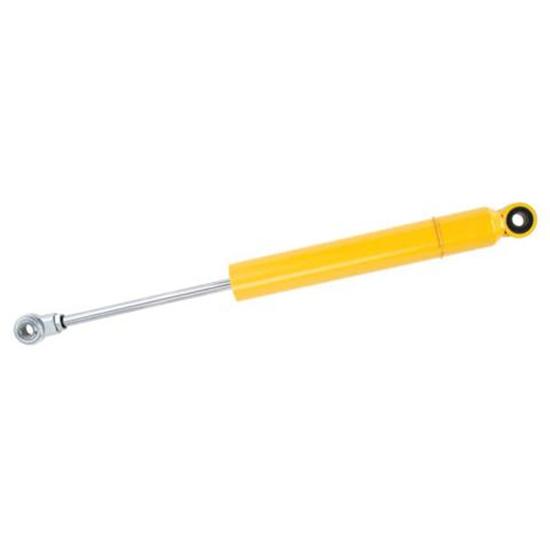

    Bilstein SG series S7G mono-tube gas shocks feature the latest development in shock valving technology; digressive valving. This delivers a new level of control by damping slow suspension movements more effectively while not allowing the chassis to be upset by sharp bumps. Bilstein has set the standard for years in Winston Cup, Indy Car and Formula 1. Now it's setting the standard for Modifieds, Late Models and Open Wheel.

    • Use on the front of Modifieds and Sprints
    • Also suitable for Midgets, TQ's, Dwarf Cars, etc.
    • Monotube gas pressure construction
    • Economy price
    • Lightweight
    • Low rod pressure
    • Bilstein's famous consistent, fade-free performance
    • Features one bearing end and one welded end
    • 1-5/8" steel body
    • 7" stroke
    • Comp. Length:  12"
    • Extended Length:  20"

    Specifications

    KEY SPECS
    MFG. Part #S7G4545
    BrandBilstein
    Shock TypeMono Tube
    Shock Body MaterialSteel
    Shock Body TypeSmooth
    Shock Body SizeSmall Body
    GENERAL
    Shock Stroke Range7.00" to 7.99"
    Compression Valving45
    Rebound Valving45
    Shock Stroke7.00
    Upper Shock Mount1/2" Spherical Rod End
    Lower Shock Mount1/2" Spherical Rod End
    Extended Length Range20.00" to 20.99"
    Extended Length20"
    Compressed Length Range13.00" to 13.99"
    Compressed Length13"
    FinishPowder Coated
    Coil-Over CompatibleYes
    Body Diameter1.55"
    Valve Positions45 compression - 45 rebound
    Bushing MaterialSteel
    Sold in QuantityEach
    Inside Diameter36 mm
    Shock Eyelet Width.625"
    Bolt Hole Circle.500"
    Hardware IncludedNo
