#213S7Z7030
$171.00
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Dirt Late Model, Modified, Stock Car, 7 Rebound Valving
| Shock Type | Mono Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
Made to Order
This custom item will ship when completed
Need help?
855.313.9176Quick and Easy Returns
Return PolicyThese Bilstein mono tube gas shocks feature digressive valving. This delivers a new level of control by damping slow suspension movements more effectively while not allowing the chassis to be upset by sharp bumps.
Bilstein has set the standard for years in Sprint Cup, Indy Car and Formula 1. Now it is setting the standard for Modifieds, Late Models and Open Wheel cars with these SZ Series S7Z shocks.

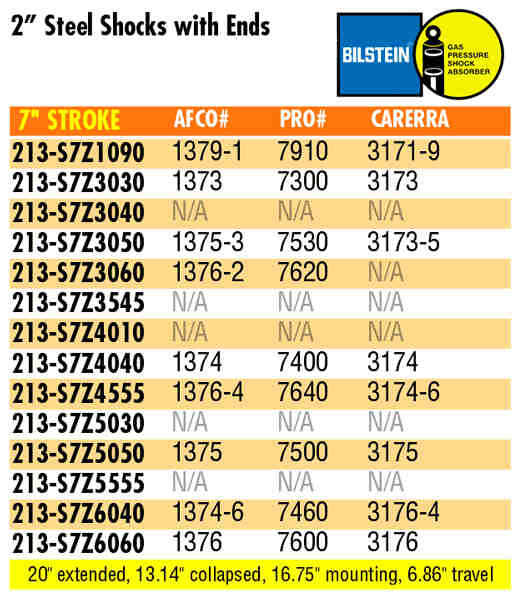

Charts
Guides & Documents
WARNING:
Cancer and Reproductive Harm – www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | S7Z7030 |
| Brand | Bilstein |
| Shock Type | Mono Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Shock Stroke Range | 7.00" to 7.99" |
| Position | Front |
| Stroke | 7" |
| Compression Valving | 3 |
| Rebound Valving | 7 |
| Mount Position | Stock Mount |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 20.00" to 20.99" |
| Extended Length | 20" |
| Compressed Length Range | 13.00" to 13.99" |
| Finish | Zinc Plated |
| Compressed Length | 13.14" |
| Gas Charged | Yes |
| GENERAL | |
| Rebuildable | Yes |
| Shock Stroke | 7.00 |
| Coil-Over Compatible | Yes |
| Valve Positions | 30 compression - 70 rebound |
| Bushing Material | Steel |
| Inside Diameter | 46 mm |
| Shock Eyelet Width | .630" |
| Bolt Hole Circle | .500" |
| Hardware Included | No |
| Sold in Quantity | Each |
| GTIN Code | 651860406909 |
