#213S7Z4040

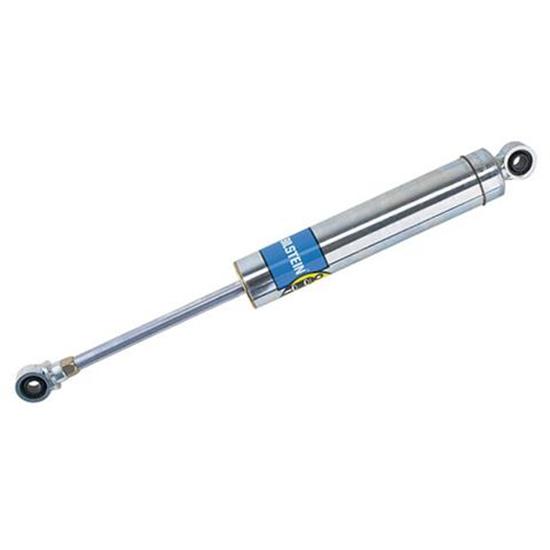

Bilstein F4-B46-0210-ZX Shock, 7 Inch Stroke w/ Ends Comp 4/Reb 4
1 Review
|
Ask a Question
- Does not allow the chassis to be upset by sharp bumps
- These Bilstein mono tube gas shocks feature digressive valving
- Has a compressed length of 13.14" and an extended length of 20"
See More
$171.00
each
In Stock
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Dirt Late Model, Modified, Stock Car, 4 Rebound Valving
- Does not allow the chassis to be upset by sharp bumps
- These Bilstein mono tube gas shocks feature digressive valving
- Has a compressed length of 13.14" and an extended length of 20"
- Both the upper and lower shock mounts have a 1/2" spherical rod end
- It delivers a new level of control by damping slow suspension movements more effectively
See more details
Key Specs
| MFG. Part # | S7Z4040 |
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsMade to Order
This custom item will ship when completed
Need help?
855.313.9176Quick and Easy Returns
Return PolicyBilstein S7Z4040 Details
Bilstein S7Z4040 Details
These Bilstein mono tube gas shocks feature digressive valving. This delivers a new level of control by damping slow suspension movements more effectively while not allowing the chassis to be upset by sharp bumps.
Bilstein has set the standard for years in Sprint Cup, Indy Car and Formula 1. Now it is setting the standard for Modifieds, Late Models and Open Wheel cars with these SZ Series S7Z shocks.
- Comp. Length: 13.14"
- Ext. Length: 20"
- Body Dia.: 2"
Charts
Guides & Documents
Bilstein S7Z4040 Specifications
Bilstein S7Z4040 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | S7Z4040 |
| Brand | Bilstein |
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| GENERAL | |
| Shock Stroke Range | 7.00" to 7.99" |
| Compression Valving | 4 |
| Rebound Valving | 4 |
| Shock Stroke | 7.00 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 20.00" to 20.99" |
| Extended Length | 20" |
| Compressed Length Range | 13.00" to 13.99" |
| Compressed Length | 13.14" |
| Finish | Zinc Plated |
| Coil-Over Compatible | Yes |
| Body Diameter | 2.00" |
| Valve Positions | 40 compression - 40 rebound |
| Bushing Material | Steel |
| Sold in Quantity | Each |
| Inside Diameter | 46 mm |
| Shock Eyelet Width | .630" |
| Bolt Hole Circle | .500" |
| Hardware Included | No |
| GTIN Code | 651860401416 |
