#213S7Z3050
Bilstein F4-B46-0210-ZE Shcok, 7 Inch Stroke w/Ends-Comp 5/Reb 3
- Shock body is made from steel and has a zinc coating
- These mono tube gas shocks feature digressive valving
- Has a compressed length of 13.14" and an extended length of 20"
$171.00
/each
In Stock
Order soon, only 3 left in stock!
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Dirt Late Model, Modified, Stock Car, 3 Rebound Valving
- Shock body is made from steel and has a zinc coating
- These mono tube gas shocks feature digressive valving
- Has a compressed length of 13.14" and an extended length of 20"
- Both the upper and lower shock mounts have a 1/2" spherical rod end
- Delivers a new level of control by damping slow suspension movements more effectively while not allowing the chassis to be upset by sharp bumps
Key Specs
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
Need To Know
Made to Order
This custom item will ship when completed
Need help?
855.313.9176Quick and Easy Returns
Return PolicyBilstein S7Z3050 Details
Bilstein S7Z3050 Details
These Bilstein mono tube gas shocks feature digressive valving. This delivers a new level of control by damping slow suspension movements more effectively while not allowing the chassis to be upset by sharp bumps.
Bilstein has set the standard for years in Sprint Cup, Indy Car and Formula 1 racing. Now it is setting the standard for Modifieds, Late Models and Open Wheel cars with these SZ Series S7Z shocks.
- Comp. Length: 13.14"
- Ext. Length: 20"
- Body Dia.: 2"

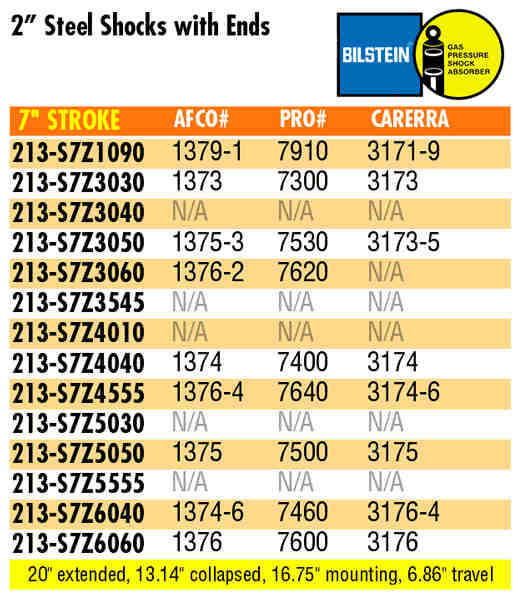

Charts
Guides & Documents
Bilstein S7Z3050 Specifications
Bilstein S7Z3050 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | S7Z3050 |
| Brand | Bilstein |
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Shock Stroke Range | 7.00" to 7.99" |
| Compression Valving | 5 |
| Rebound Valving | 3 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 20.00" to 20.99" |
| Extended Length | 20" |
| Compressed Length Range | 13.00" to 13.99" |
| Finish | Zinc Plated |
| Compressed Length | 13.14" |
| GENERAL | |
| Shock Stroke | 7.00 |
| Coil-Over Compatible | Yes |
| Valve Positions | 50 compression - 30 rebound |
| Bushing Material | Steel |
| Inside Diameter | 46 mm |
| Shock Eyelet Width | .630" |
| Bolt Hole Circle | .500" |
| Hardware Included | No |
| Sold in Quantity | Each |
| GTIN Code | 651860401355 |
