#213S9Z5030

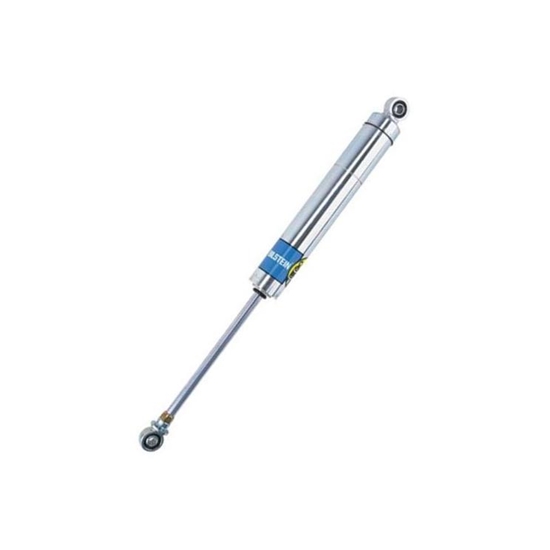

Bilstein F4-B46-0207-ZN Steel 2 Inch Shock 9 Inch Stroke, Reb 5/Comp 3
3 Reviews
|
1 Question
- Designed to deliver a new level of control by damping slow suspension movements more effectively
- Shocks do not allow the chassis to be upset by sharp bumps
- Features all new digressing valving technology
See More
$171.00
each
In Stock
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Dirt Late Model, Modified, Stock Car, 5 Rebound Valving
- Designed to deliver a new level of control by damping slow suspension movements more effectively
- Shocks do not allow the chassis to be upset by sharp bumps
- Features all new digressing valving technology
- Shocks have a monotube design and have 8.5" of total travel
- They measure 23.44" extended and 14.94" collapsed
See more details
Key Specs
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyBilstein S9Z5030 Details
Bilstein S9Z5030 Details
These Bilstein mono tube gas shocks feature the latest development in shock valving technology; digressive valving. This delivers a new level of control by damping slow suspension movements more effectively while not allowing the chassis to be upset by sharp bumps.
Bilstein has set the standard for years in Indy Car, NASCAR, and Formula 1. Now it is setting the standard for Modifieds, Late Models and Open Wheel cars with these SZ Series S9Z shocks.
23.44" extended, 14.94" collapsed, 19.75" mounting, 8.5" travel.
Charts
Guides & Documents
Bilstein S9Z5030 Specifications
Bilstein S9Z5030 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | S9Z5030 |
| Brand | Bilstein |
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Shock Stroke Range | 9.00" to 9.99" |
| Compression Valving | 3 |
| Rebound Valving | 5 |
| Extended Length Range | 23.00" to 23.99" |
| Extended Length | 23.44" |
| Compressed Length Range | 14.00" to 14.99" |
| Compressed Length | 14.94" |
| Finish | Zinc Plated |
| GENERAL | |
| Shock Stroke | 9.00 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Coil-Over Compatible | Yes |
| Valve Positions | 30 compression - 50 rebound |
| Bushing Material | Steel |
| Sold in Quantity | Each |
| Inside Diameter | 46 mm |
| Shock Eyelet Width | .630" |
| Bolt Hole Circle | .500" |
| Hardware Included | No |
| GTIN Code | 651860401096 |
