#213S9Z3050
Bilstein F4-B46-0207-ZE Steel 2 Inch Shock 9 Inch Stroke, Reb 3/Comp 5
- Mono tube gas shocks features digressive valving technology
- It has a large steel body with a zinc plated finish for added corrosion protection
- Engineered to dampen slow suspension movements more effectively while not allowing the chassis to be upset by sharp bumps
$171.00
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Dirt Late Model, Modified, Stock Car, 3 Rebound Valving
- Mono tube gas shocks features digressive valving technology
- It has a large steel body with a zinc plated finish for added corrosion protection
- Engineered to dampen slow suspension movements more effectively while not allowing the chassis to be upset by sharp bumps
- Measures 23.44" extended and 14.94" collapsed
- Upper and lower shock mount both have a 1/2" spherical rod end
Key Specs
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
Need To Know
Made to Order
This custom item will ship when completed
Need help?
855.313.9176Quick and Easy Returns
Return PolicyBilstein S9Z3050 Details
Bilstein S9Z3050 Details
These Bilstein mono tube gas shocks feature the latest development in shock valving technology; digressive valving. This delivers a new level of control by damping slow suspension movements more effectively while not allowing the chassis to be upset by sharp bumps.
Bilstein has set the standard for years in Indy Car, NASCAR, and Formula 1. Now it is setting the standard for Modifieds, Late Models and Open Wheel cars with these SZ Series S9Z shocks.
23.44" extended, 14.94" collapsed, 19.75" mounting, 8.5" travel.

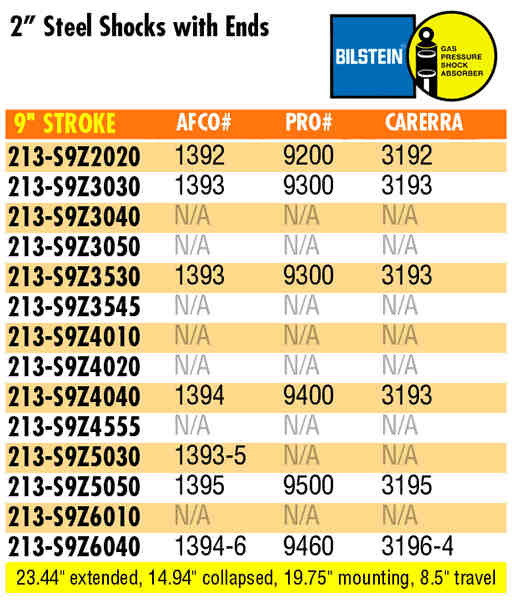

Charts
Guides & Documents
Bilstein S9Z3050 Specifications
Bilstein S9Z3050 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | S9Z3050 |
| Brand | Bilstein |
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Shock Stroke Range | 9.00" to 9.99" |
| Compression Valving | 5 |
| Rebound Valving | 3 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 23.00" to 23.99" |
| Extended Length | 23.44" |
| Compressed Length Range | 14.00" to 14.99" |
| Compressed Length | 14.94" |
| Finish | Zinc Plated |
| GENERAL | |
| Shock Stroke | 9.00 |
| Coil-Over Compatible | Yes |
| Valve Positions | 50 compression - 30 rebound |
| Bushing Material | Steel |
| Sold in Quantity | Each |
| Inside Diameter | 46 mm |
| Shock Eyelet Width | .630" |
| Bolt Hole Circle | .500" |
| Hardware Included | No |
| GTIN Code | 651860406121 |
