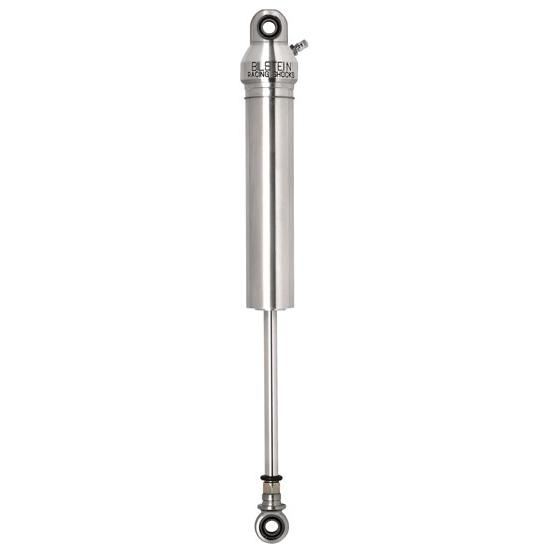

Bilstein B46-DTA9S SNS Series Shock, 9 Inch Stroke

Bilstein B46-DTA9S SNS Series Shock, 9 Inch Stroke

|

#213SNS9

Bilstein B46-DTA9S SNS Series Shock, 9 Inch Stroke

|

Has a 46mm (1.81") diameter steel body
It is nickel plated for rapid heat dissipation
The shock of choice for Wissota and UMP racers

$202.13

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Oval Track Cars, Mono Tube Shock Type

Has a 46mm (1.81") diameter steel body
It is nickel plated for rapid heat dissipation
The shock of choice for Wissota and UMP racers
Features Bilstein's famous consistent, fade-free performance
Shock has a 23.44" extended length and a 15.16" collapsed length

See more details

Key Specs

Shock Type	Mono Tube
Shock Adjustability	Non-Adjustable
Shock Body Material	Steel
Body Diameter	1.81"
Shock Body Type	Smooth

Need To Know

Need help?

View the Help Center

Quick and Easy Returns

Bilstein 33-315560 Details

Exclusively at Speedway Motors you can now order your custom Bilstein shocks online!

Shock of choice for Wissota and UMP racers
Digressive valving
Nickel plated for rapid heat dissipation
World class performance at a SN (Saturday Night) price
Bilstein's famous consistent, fade-free performance
46mm (1.81") diameter steel body
Steel Cap with Schrader Valve
9" Stroke
23.44" Extended Length
15.16" Collapsed Length

Designed for, but not limited to: Modifieds, Late Models, and Sprint Cars.

Guides & Documents

Shocks Technical Information (213SNS9)

Shocks Installation Instructions (213SNS9)

Shocks MSDS (213SNS9)

Shocks Warranty (213SNS9)

Shocks Technical Information (213SNS9)

Bilstein 33-315560 Specifications

KEY SPECS
MFG. Part #	33-315560
Brand	Bilstein
Shock Type	Mono Tube
Shock Adjustability	Non-Adjustable
Shock Body Material	Steel
Body Diameter	1.81"
Shock Body Type	Smooth
Shock Body Size	Large Body
Shock Stroke Range	9.00" to 9.99"
Position	Front and Rear
Stroke	9"
Compression Valving	Custom
Rebound Valving	Custom
Mount Position	Stock Mount
Upper Shock Mount	1/2" Spherical Rod End
Lower Shock Mount	Spherical Rod End
Finish	Nickel plated
Gas Charged	Yes

GENERAL
Rebuildable	Yes
Shock Stroke	9.00
Inside Diameter	46 mm
Sold in Quantity	Each
GTIN Code	651860720449
