#213SN7A1000

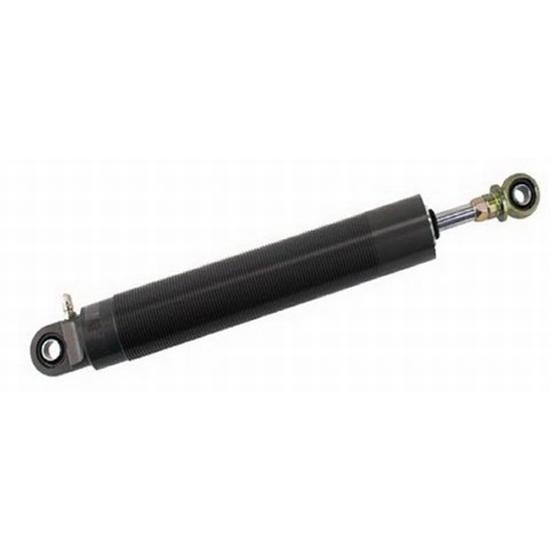

Bilstein Aluminum Threaded Body Gas Shock, 7 Inch Stroke, Custom Valve
$316.99
/each
On Backorder
This part is Backordered. We currently do not have an estimate when this item will ship.
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Oval Track Cars, Mono Tube Shock Type, Anodized
Comes as a Kit
View Kit Components
Key Specs
| Shock Type | Mono Tube |
| Shock Body Material | Aluminum |
| Body Diameter | 2.05" |
| Shock Body Type | Threaded |
| Shock Body Size | Large Body |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyBilstein CUSTOM 7" Details
Bilstein CUSTOM 7" Details
- 46mm (1.81") diameter threaded aluminum body
- Includes Schrader valve and circlip rod guide
- Rebuildable; shock can be assembled and disassembled for rapid repair or valving change
- Hard anodized for durability
- Valve stacks and valving kits available separately
- Available with linear or digressive piston
- Every part of the ASN shock is available separately for economical repair
- World class performance in an aluminum shock at an economy price
- Bilsteins famous consistent, fade-free performance
- Designed for, but not limited to Modifieds, Late Models, & Sprint Cars
Note: With mono tube gas shocks, you have a longer compressed length. So if youve been running a 9" Pro, Carrera, etc., you need to go to an 8" Bilstein.
Note: This shock is custom valved and assembled by our expert staff and will take up to 72 hours to be built. Due to its custom nature, it cannot be returned for a refund.
Bilstein CUSTOM 7" Specifications
Bilstein CUSTOM 7" Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | CUSTOM 7" |
| Brand | Bilstein |
| Shock Type | Mono Tube |
| Shock Body Material | Aluminum |
| Body Diameter | 2.05" |
| Shock Body Type | Threaded |
| Shock Body Size | Large Body |
| Shock Stroke Range | 7.00" to 7.99" |
| Compression Valving | Custom |
| Rebound Valving | Custom |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 20.00" to 20.99" |
| Extended Length | 20.23" |
| Compressed Length Range | 13.00" to 13.99" |
| Finish | Anodized |
| Compressed Length | 13.35" |
| Gas Charged | Yes |
| GENERAL | |
| Rebuildable | Yes |
| Schrader Valve | Yes |
| Shock Stroke | 7.00 |
| Coil-Over Compatible | Yes |
| Bushing Material | Steel |
| Inside Diameter | 46 mm |
| Thread Length | 7" |
| Shock Eyelet Width | 6.30" |
| Bolt Hole Circle | .500" |
| Hardware Included | No |
| Notes | MADE TO ORDER |
| Sold in Quantity | Each |
