#213SN9A6040

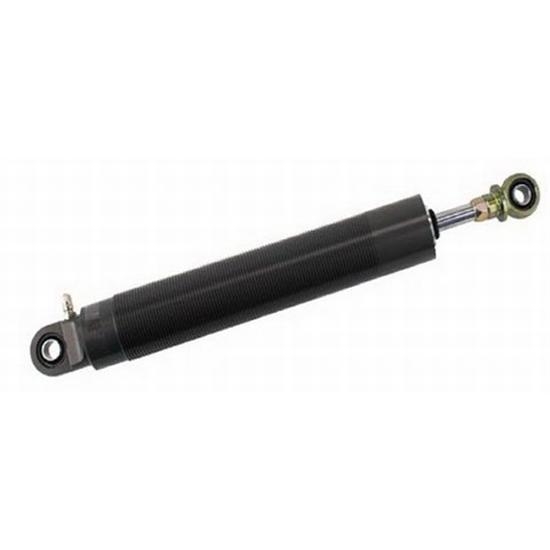

Bilstein 60/40 Aluminum Threaded Gas Shock-9 Inch Stroke, Comp 4/Reb 6
$316.99
/each
Made to Order
This is a custom fabricated part. We estimate this item will ship on or before April 7th.
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| Shock Type | Mono Tube |
| Shock Body Material | Aluminum |
| Body Diameter | 2.05" |
| Shock Body Type | Threaded |
| Shock Body Size | Large Body |
Need To Know
Made to Order
This custom item will ship when completed
Need help?
855.313.9176Quick and Easy Returns
Return PolicyBilstein SN9A6040 Details
Bilstein SN9A6040 Details
- 46mm (1.81") diameter threaded aluminum body
- Includes Schrader valve and circlip rod guide
- Rebuildable; shock can be assembled and disassembled for rapid repair or valving change
- Hard anodized for durability
- Valve stacks and valving kits available separately
- Available with linear or digressive piston
- Every part of the ASN shock is available separately for economical repair
- World class performance in an aluminum shock at an economy price
- Bilstein's famous consistent, fade-free performance
- Designed for, but not limited to Modifieds, Late Models, & Sprint Cars
Note: With mono-tube gas shocks, you have a longer compressed length. So if you've been running a 9" Pro, Carrera, etc., you need to go to an 8" Bilstein.
Specs
Bilstein SN9A6040 Specifications
Bilstein SN9A6040 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | SN9A6040 |
| Brand | Bilstein |
| Shock Type | Mono Tube |
| Shock Body Material | Aluminum |
| Body Diameter | 2.05" |
| Shock Body Type | Threaded |
| Shock Body Size | Large Body |
| Shock Stroke Range | 9.00" to 9.99" |
| Compression Valving | 4 |
| Rebound Valving | 6 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 23.00" to 23.99" |
| Extended Length | 23.6" |
| Compressed Length Range | 15.00" to 15.99" |
| Compressed Length | 15.08" |
| Finish | Anodized |
| Gas Charged | Yes |
| GENERAL | |
| Shock Stroke | 9.00 |
| Schrader Valve | Yes |
| Coil-Over Compatible | Yes |
| Valve Positions | 40 compression - 60 rebound |
| Rebuildable | Yes |
| Bushing Material | Steel |
| Sold in Quantity | Each |
| Notes | MADE TO ORDER |
| Inside Diameter | 46 mm |
| Thread Length | 8.75" |
| Shock Eyelet Width | .630" |
| Bolt Hole Circle | .500" |
| Hardware Included | No |
