#213SN7A5555
$316.99
/each
On Backorder
This part is Backordered. We currently do not have an estimate when this item will ship.
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle

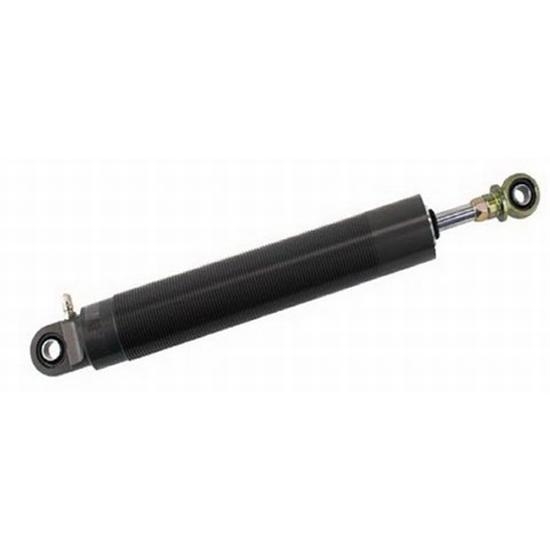

Oval Track Cars, Mono Tube Shock Type, Anodized
Comes as a Kit
View Kit Components
| Shock Type | Mono Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Body Diameter | 2.05" |
| Shock Body Type | Threaded |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyNote: With mono tube gas shocks, you have a longer compressed length. So if you've been running a 9" Pro, Carrera, etc., you need to go to an 8" Bilstein.
Specs
| KEY SPECS | |
|---|---|
| MFG. Part # | SN7A5555 |
| Brand | Bilstein |
| Shock Type | Mono Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Body Diameter | 2.05" |
| Shock Body Type | Threaded |
| Shock Body Size | Large Body |
| Shock Stroke Range | 7.00" to 7.99" |
| Position | Front and Rear |
| Stroke | 7" |
| Compression Valving | 55 |
| Rebound Valving | 55 |
| Mount Position | Stock Mount |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 20.00" to 20.99" |
| Extended Length | 20.23" |
| Compressed Length Range | 13.00" to 13.99" |
| Finish | Anodized |
| Compressed Length | 13.35" |
| Gas Charged | Yes |
| GENERAL | |
| Rebuildable | Yes |
| Schrader Valve | Yes |
| Shock Stroke | 7.00 |
| Coil-Over Compatible | Yes |
| Valve Positions | 55 compression - 55 rebound |
| Bushing Material | Steel |
| Inside Diameter | 46 mm |
| Thread Length | 7" |
| Shock Eyelet Width | 6.30" |
| Bolt Hole Circle | .500" |
| Hardware Included | No |
| Notes | MADE TO ORDER |
| Sold in Quantity | Each |
