Product Summary

Oval Track Cars, Mono Tube Shock Type, Anodized

    Comes as a Kit

    Key Specs

    Shock TypeMono Tube
    Shock Body MaterialAluminum
    Body Diameter2.05"
    Shock Body TypeThreaded
    Shock Body SizeLarge Body

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

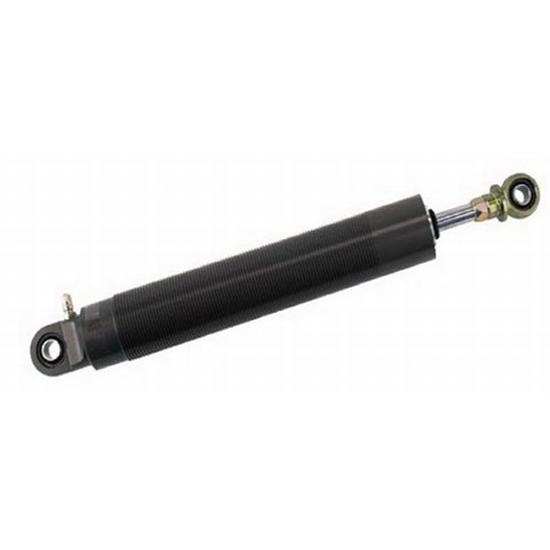

    Bilstein SN7A3535 Details

    • 46mm (1.81") diameter threaded aluminum body
    • Includes Schrader valve and circlip rod guide
    • Rebuildable; shock can be assembled and disassembled for rapid repair or valving change
    • Hard anodized for durability
    • Valve stacks and valving kits available separately
    • Available with linear or digressive piston
    • Every part of the ASN shock is available separately for economical repair
    • World class performance in an aluminum shock at an economy price
    • Bilstein's famous consistent, fade-free performance
    • Designed for, but not limited to Modifieds, Late Models, & Sprint Cars

    Note: With mono tube gas shocks, you have a longer compressed length. So if you've been running a 9" Pro, Carrera, etc., you need to go to an 8" Bilstein.

    Specs


    Bilstein SN7A3535 Specifications

    KEY SPECS
    MFG. Part #SN7A3535
    BrandBilstein
    Shock TypeMono Tube
    Shock Body MaterialAluminum
    Body Diameter2.05"
    Shock Body TypeThreaded
    Shock Body SizeLarge Body
    Shock Stroke Range7.00" to 7.99"
    Compression Valving35
    Rebound Valving35
    Extended Length Range20.00" to 20.99"
    Extended Length20.23"
    Compressed Length Range13.00" to 13.99"
    Compressed Length13.35"
    FinishAnodized
    Gas ChargedYes
    GENERAL
    Shock Stroke7.00
    Upper Shock Mount1/2" Spherical Rod End
    Lower Shock Mount1/2" Spherical Rod End
    Schrader ValveYes
    Coil-Over CompatibleYes
    Valve Positions35 compression - 35 rebound
    RebuildableYes
    Bushing MaterialSteel
    Sold in QuantityEach
    NotesMADE TO ORDER
    Inside Diameter46 mm
    Thread Length7"
    Shock Eyelet Width6.30"
    Bolt Hole Circle.500"
    Hardware IncludedNo
