Bills Hot Rod Co. SBC Wide Set Alternator and P/S Brackets, Black

Since 1990 Bill's Hot Rod Co. has had one goal in mind; to design alternator, air conditioner and power steering brackets that fit and are easy to use, as well as affordable and stylish. Brackets come completely assembled with all stainless steel bolts and washers, illustrated instruction sheet, and belt size recommendations with adjusting tips.

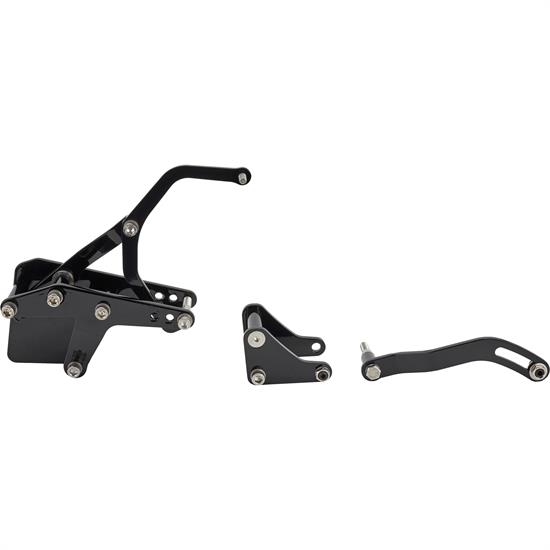

Kit Includes:

600 Series SBC Wide Set Alternator Bracket, Short

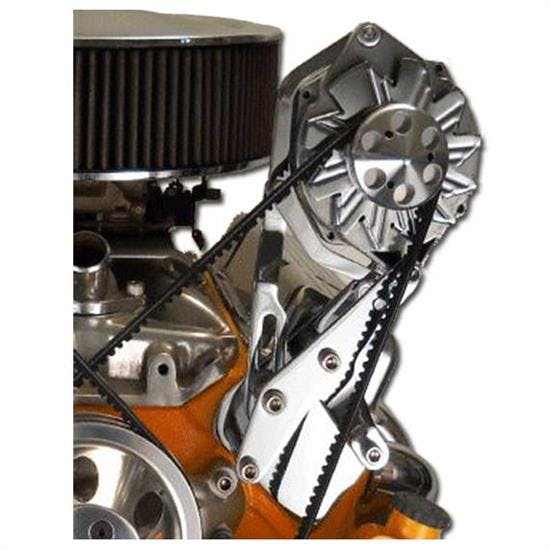

The 600 Series alternator brackets fit GM 10-SI or 12-Si alternators. Brackets position the units over the valve covers. Brackets come completely assembled with all stainless steel bolts and washers, illustrated instruction sheet, and belt size recommendations with adjusting tips.

• Wide Set Top Mount Alternator Bracket
• Fits late Small Block Chevy / Short water pump application
• Drivers side
• Comes completely assembled
• Fits GM 10-Si or 12-Si alternator
• 1/4" mild steel plate is used for strength and durability
• No drilling or tapping necessary
• Black Finish

300 Series SBC Wide Set Power Steering Bracket

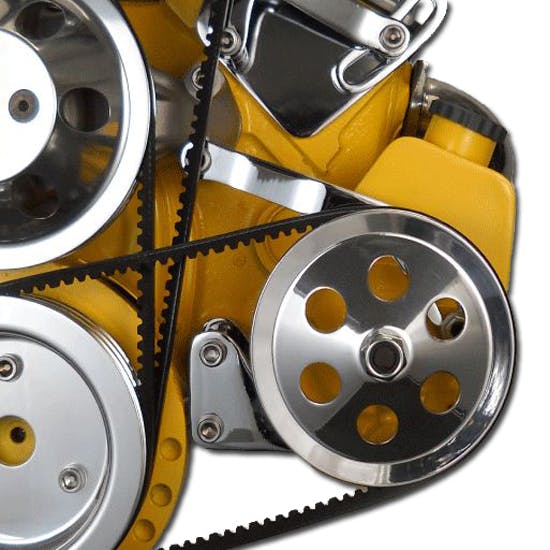

The 300 Series Power Steering Bracket will fit GM Saginaw Pumps with attached reservoirs. Brackets position the pumps low and close to the block.

• Wide Set Low Mount Power Steering Bracket
• Driver side
• For use with the 600 Series bracket 916-67962 ONLY
• Fits Small Block Chevy / Short Water Pump application
• Comes completely assembled
• Fits GM Saginaw Pumps with attached reservoirs
• Will work with an 8" harmonic balancer
• 1/4" mild steel plate is used for strength and durability
• No drilling or tapping necessary
• Black Finish

Notes:

To protect and preserve the finish on these powdercoated or chrome-plated brackets, be sure to apply a good quality wax such as carnauba, as needed.

Alternator bracket mounts using only the existing factory drilled holes found on the front face of the heads. If the valve cover gasket flange extends over the machine surface or head face, you will have to grind or file the circled area as needed to allow the bracket to sit flat on the head face.

Power Steering bracket mounts to the lower left front of the block using the two lower bolt holes located by the timing chain cover (the old front motor mount holes). The adjusting arm mounts to the lower water pump hole.
