Product Summary

283, 302, 305, 327, 350, 400, Short Water Pump Style

    Comes as a Kit

    Key Specs

    MFG. Part #9108609
    Water Pump StyleShort
    Crankshaft Pulley IncludedNo
    Water Pump IncludedNo
    Water Pump Pulley IncludedNo

    Need To Know

    This Product Will Ship Free

    Quick and Easy Returns

    Details

    Since 1990 Bill's Hot Rod Co. has had one goal in mind; to design alternator, air conditioner and power steering brackets that fit and are easy to use, as well as affordable and stylish. Brackets come completely assembled with all stainless steel bolts and washers, illustrated instruction sheet, and belt size recommendations with adjusting tips.

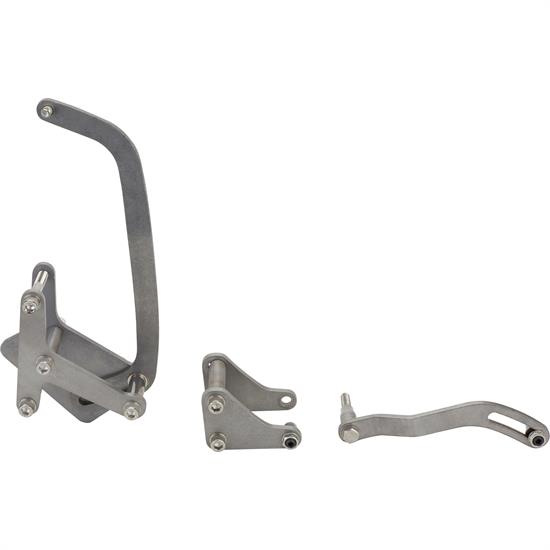

    Kit Includes:

    100 Series GM Alternator Brackets, Short Pump

    Simple installation. Attaches to accessory bolt holes on front face of head.

    For Small Block Chevy with short water pump. Fabricated from mild steel, with all stainless fasteners. Accepts stock GM alternator.

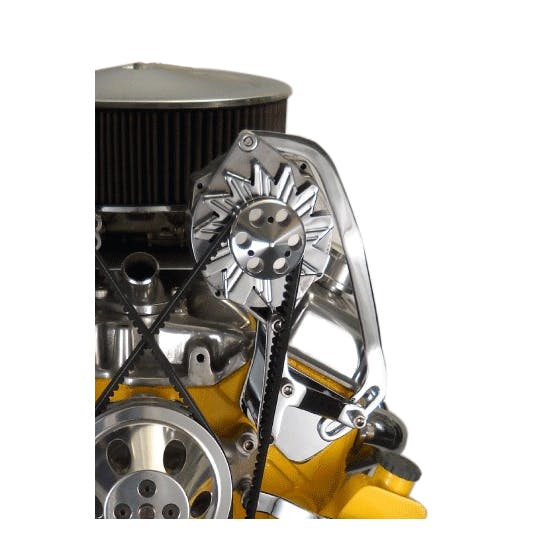

    This bracket mounts to the alternator to the front of the head on the driver's side of a Small Block Chevy using existing drilled/tapped holes in the head. It lines up with pulleys and belts for the short water pump.

    For a complete A/C and alternator kit which requires no mounting holes on the heads, purchase 916-67919.

    This alternator bracket uses the first groove (groove closest to the balancer) and the A/C unit uses the second groove. The power steering belt makes use of the third groove (farthest foward groove) on a three groove pulley (our pulley 910-15480.)

    300 Series SBC Power Steering Bracket

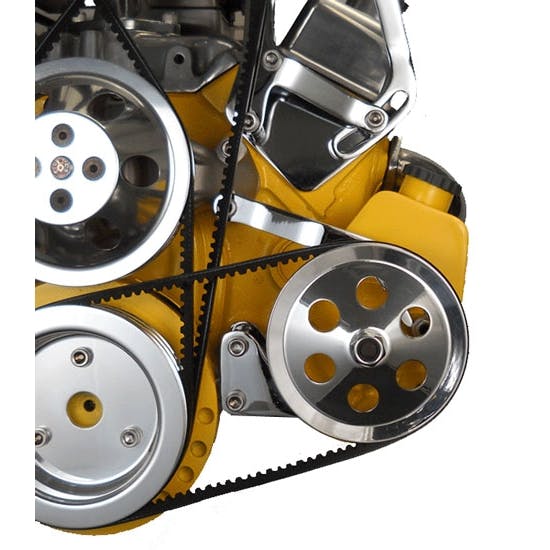

    Fabricated from 1/4" mild steel with stainless/chrome Allen head hardware. Simple installation; all brackets are pre-assembled. Drilling or tapping is not required. Attaches to the lower left front of the block using the two lower bolt holes located by the timing cover (the old front motor mount holes). The adjusting arm mounts to the lower water pump hole.

    • Mounts low on drivers side
    • Two positions for superior adjustability
    • Works with SHORT and LONG style water pumps
    • Use with GM Saginaw pumps with attached reservoir, "type 1" p.s. pumps
    • Works with stock steel or aluminum aftermarket pulleys

    Notes:

    Bracket mounts to the lower left front of the block using the two lower bolt holes located by the timing chain cover (the old front motor mount holes). The adjusting arm mounts to the lower water pump hole.

    Bracket will fit a wide range of applications due to its two mounting positions: LOW and HIGH

    Bracket fits a G.M. Saginaw power steering pump with attached reservoir.

    Brackets are made of 1/4" mild steel plate for strength and durability.

    All brackets are made in the U.S.A. Brackets come completely assembled with all stainless steel bolts and washers, an illustrated instruction sheet and belt size recommendations with adjusting tips.

    Charts

    Specifications

    KEY SPECS
    MFG. Part #9108609
    BrandBills Hot Rod Co
    Water Pump StyleShort
    Crankshaft Pulley IncludedNo
    Water Pump IncludedNo
    Water Pump Pulley IncludedNo
    GENERAL
    Sold in QuantityKit
    Power Steering Pump IncludedNo
    Power Steering Pump Bracket FinishNatural
    Power Steering Pump Brackets IncludedYes
    Power Steering Mounting SideDriver Side
    Power Steering Pump Bracket MaterialSteel
    Power Steering Pump Reservoir IncludedNo
    Power Steering Pump StyleSaginaw
    Power Steering Pulley IncludedNo
    Alternator IncludedNo
    Alternator Mounting SideDriver Side
    Alternator Bracket FinishNatural
    Alternator Bracket MaterialSteel
    Alternator Brackets IncludedYes
    A/C Compressor IncludedNo
    A/C Bracket IncludedNo
    Idler Brackets IncludedNo
    Idler IncludedNo
    Tensioner IncludedNo
    Hardware IncludedYes
