Product Summary

283, 302, 305, 327, 350, 400, Long Water Pump Style

    Comes as a Kit

    Key Specs

    MFG. Part #9108625
    BrandBills Hot Rod Co

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

    Since 1990 Bill's Hot Rod Co. has had one goal in mind; to design alternator, air conditioner and power steering brackets that fit and are easy to use, as well as affordable and stylish. Brackets come completely assembled with all stainless steel bolts and washers, illustrated instruction sheet, and belt size recommendations with adjusting tips.

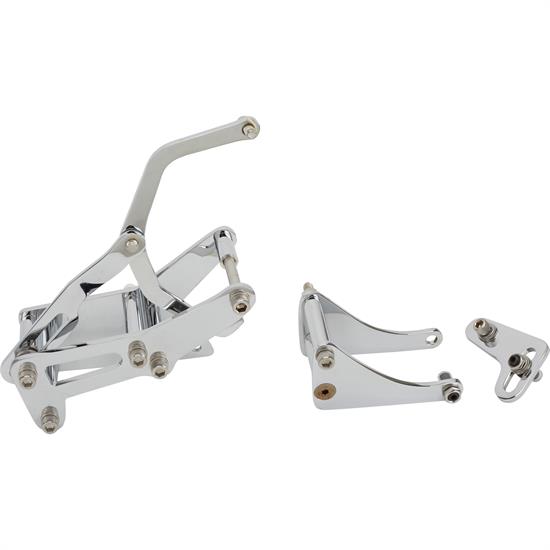

    Kit Includes:

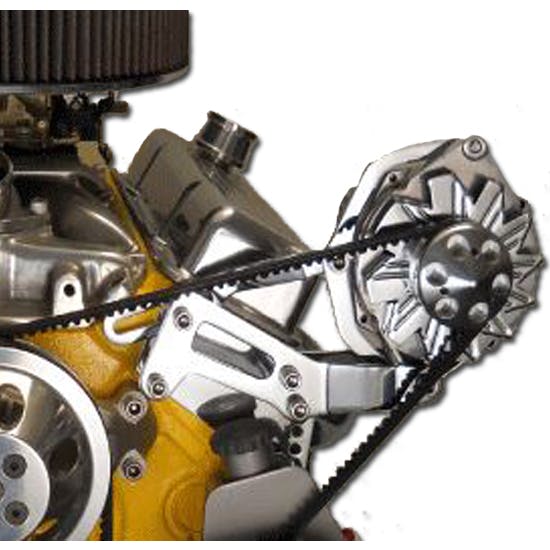

    1100 Series SBC Side Mount Alternator Bracket, Long

    The 1100 Series alternator brackets fit GM 10-SI or 12-Si alternators. Brackets position the units over the exhaust manifold, and just to the outside of the valve covers, for a low profile look. Brackets come completely assembled with all stainless steel bolts and washers, illustrated instruction sheet, and belt size recommendations with adjusting tips.

    Bracket mounts using only the existing factory drilled holes found on the front face of the heads.

    • Side Mount Alternator Bracket
    • Fits late Small Block Chevy
    • Comes completely assembled
    • For long water pump
    • Fits GM 10-Si or 12-Si alternator
    • 1/4" mild steel plate is used for strength and durability
    • No drilling or tapping necessary

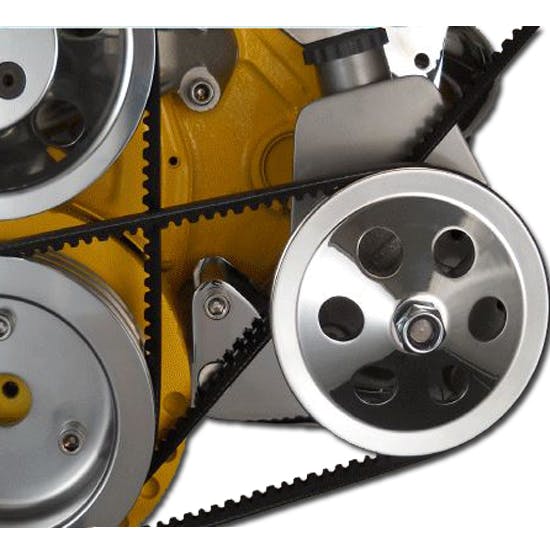

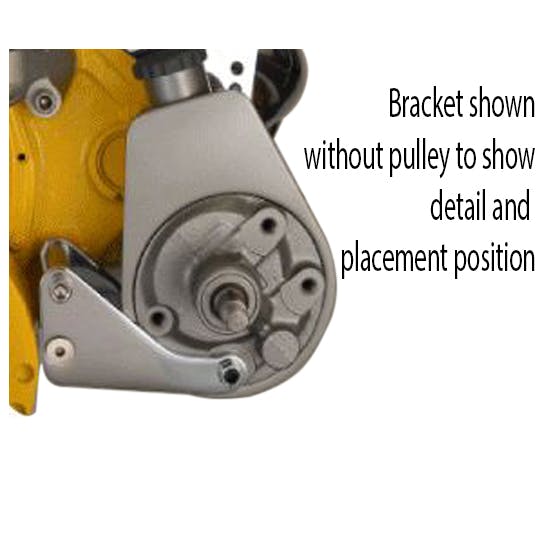

    1200 Series SBC Side Mount PS Bracket, Long

    The 1200 Series Power Steering Bracket will fit GM Saginaw Pumps with attached reservoirs. Brackets come completely assembled with all stainless steel bolts and washers, illustrated instruction sheet, and belt size recommendations with adjusting tips.

    • Side Mount Power Steering Bracket
    • Fits late Small Block Chevy
    • Drivers Side Installation for Long Water Pump Application
    • Comes completely assembled
    • For long water pump
    • Fits GM Saginaw Pumps with attached reservoirs
    • Adjuster plate is on the backside of the pump, and attaches to the 1100 series base plate from 916-67974
    • 1/4" mild steel plate is used for strength and durability
    • No drilling or tapping necessary

    Notes:

    To protect and preserve the finish on these powdercoated or chrome plated brackets, be sure to apply a good quality wax such as carnauba, as needed.

    Bracket mounts to the lower left front of the block using the two lower bolt holes located by the timing chain cover (the old front motor mount holes).

    Charts

    Specifications

    KEY SPECS
    MFG. Part #9108625
    BrandBills Hot Rod Co
    GENERAL
    Sold in QuantityKit
    Water Pump StyleLong
    Crankshaft Pulley IncludedNo
    Water Pump IncludedNo
    Water Pump Pulley IncludedNo
    Power Steering Pump IncludedNo
    Power Steering Pump Bracket FinishChrome
    Power Steering Pump Brackets IncludedYes
    Power Steering Mounting SideDriver Side
    Power Steering Pump Bracket MaterialSteel
    Power Steering Pump Reservoir IncludedNo
    Power Steering Pump StyleSaginaw
    Power Steering Pulley IncludedNo
    Alternator IncludedNo
    Alternator Mounting SideDriver Side
    Alternator Bracket FinishChrome
    Alternator Bracket MaterialSteel
    Alternator Brackets IncludedYes
    A/C Compressor IncludedNo
    A/C Bracket IncludedNo
    Idler Brackets IncludedNo
    Idler IncludedNo
    Tensioner IncludedNo
    Hardware IncludedYes
