Since 1990 Bill's Hot Rod Co. has had one goal in mind; to design alternator, air conditioner and power steering brackets that fit and are easy to use, as well as affordable and stylish. Brackets come completely assembled with all stainless steel bolts and washers, illustrated instruction sheet, and belt size recommendations with adjusting tips.

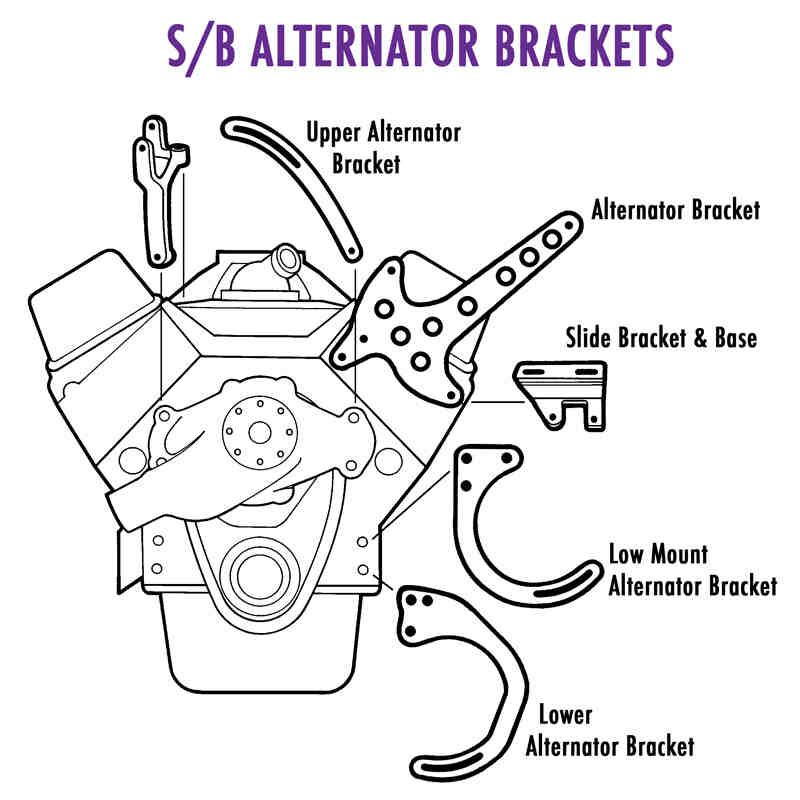

100 Series GM Alternator Brackets, Short Pump
Simple installation. Attaches to accessory bolt holes on front face of head.
For Small Block Chevy with short water pump. Fabricated from mild steel, with all stainless fasteners. Accepts stock GM alternator.
This bracket mounts to the alternator to the front of the head on the driver's side of a Small Block Chevy using existing drilled/tapped holes in the head. It lines up with pulleys and belts for the short water pump.
For a complete A/C and alternator kit which requires no mounting holes on the heads, purchase 916-67919.
This alternator bracket uses the first groove (groove closest to the balancer) and the A/C unit uses the second groove. The power steering belt makes use of the third groove (farthest foward groove) on a three groove pulley (our pulley 910-15480.)
300 Series SBC Power Steering Bracket
Fabricated from 1/4" mild steel with stainless/chrome Allen head hardware. Simple installation; all brackets are pre-assembled. Drilling or tapping is not required. Attaches to the lower left front of the block using the two lower bolt holes located by the timing cover (the old front motor mount holes). The adjusting arm mounts to the lower water pump hole.
- Mounts low on drivers side
- Two positions for superior adjustability
- Works with SHORT and LONG style water pumps

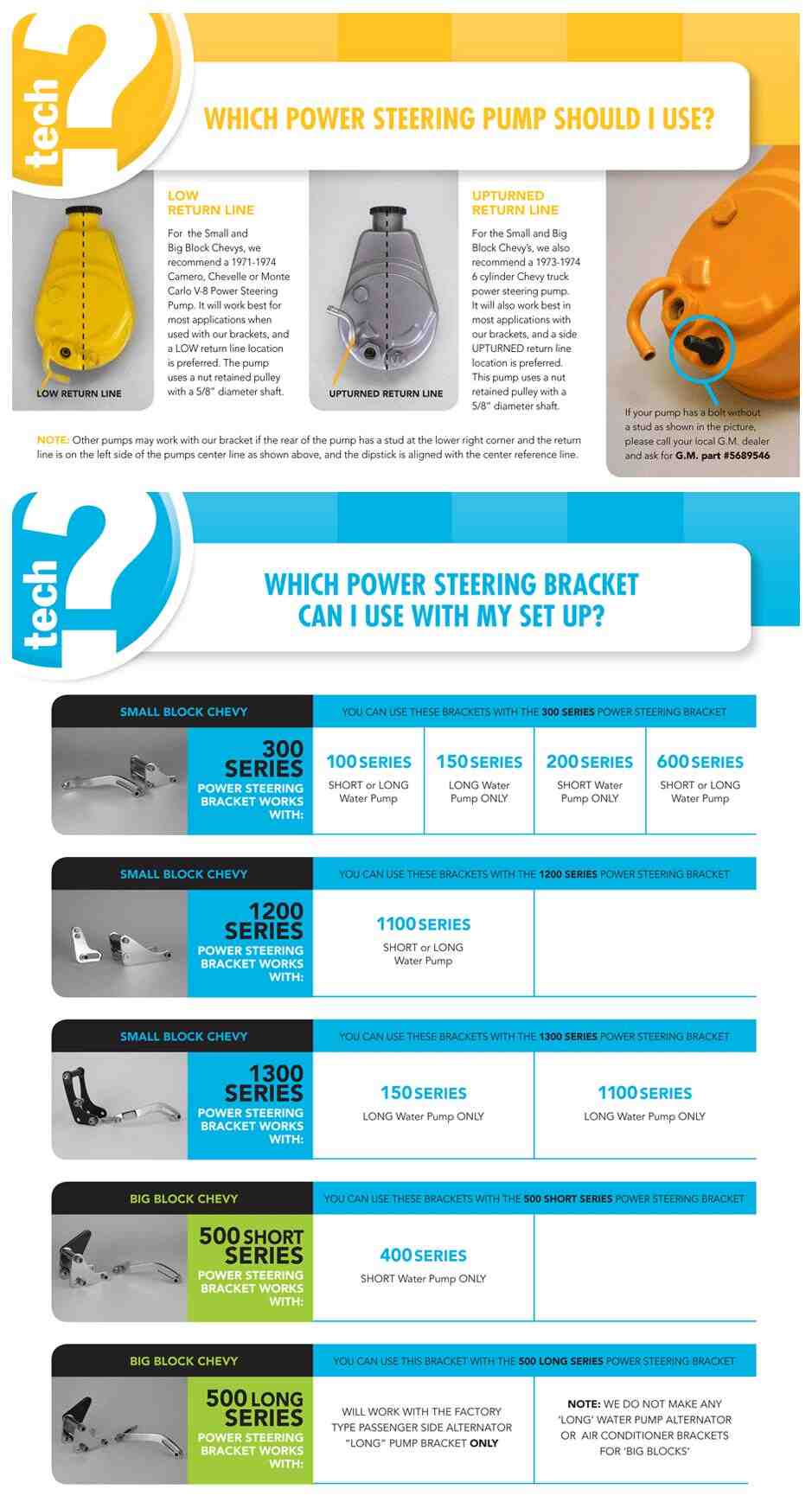

- Use with GM Saginaw pumps with attached reservoir, "type 1" p.s. pumps
- Works with stock steel or aluminum aftermarket pulleys
Bracket mounts to the lower left front of the block using the two lower bolt holes located by the timing chain cover (the old front motor mount holes). The adjusting arm mounts to the lower water pump hole.
Bracket will fit a wide range of applications due to its two mounting positions: LOW and HIGH
Bracket fits a G.M. Saginaw power steering pump with attached reservoir.
Brackets are made of 1/4" mild steel plate for strength and durability.
All brackets are made in the U.S.A. Brackets come completely assembled with all stainless steel bolts and washers, an illustrated instruction sheet and belt size recommendations with adjusting tips.
100 Series Sanden 508 A/C Compressor Brackets
The 100 Series A/C Compressor Brackets will fit Sanden SD-508 Air Conditioner Compressors. Brackets position the units on top of the engine, keeping them close to the middle and as low as possible. Brackets come completely assembled with all stainless steel bolts and washers, illustrated instruction sheet, and belt size recommendations with adjusting tips.
- A/C Compressor Bracket
- Fits Small Block Chevy applications
- Comes completely assembled
- For short water pump
- Fits Sanden SD-508 Compressor
- 1/4" mild steel plate is used for strength and durability
- No drilling or tapping necessary
To protect and preserve the finish on these powdercoated or chrome-plated brackets, be sure to apply a good quality wax such as carnauba, as needed.
Bracket mounts using only the existing factory drilled holes found on the front face of the heads. Some minor grinding or filing on the manifold may be necessary.
Guides & Documents
|MFG. Part #||9108612|
|Brand||Bills Hot Rod Co|
|Sold in Quantity||Kit|
|Water Pump Style||Short|
|Crankshaft Pulley Included||No|
|Water Pump Included||No|
|Water Pump Pulley Included||No|
|Power Steering Pump Included||No|
|Power Steering Pump Bracket Finish||Chrome|
|Power Steering Pump Brackets Included||Yes|
|Power Steering Mounting Side||Driver Side|
|Power Steering Pump Bracket Material||Steel|
|Power Steering Pump Reservoir Included||No|
|Power Steering Pump Style||Saginaw|
|Power Steering Pulley Included||No|
|Alternator Mounting Side||Driver Side|
|Alternator Bracket Finish||Chrome|
|Alternator Bracket Material||Steel|
|Alternator Brackets Included||Yes|
|A/C Compressor Included||No|
|A/C Compressor Type||Sanden SD-508|
|A/C Bracket Finish||Chrome|
|A/C Bracket Included||Yes|
|A/C Mounting Side||Passenger Side|
|A/C Bracket Material||Steel|
|Idler Brackets Included||No|
