Bills Hot Rod Co. BBC Alternator and P/S Brackets, Raw
396 Chevy Big Block V8, 402 Chevy Big Block V8, 427 Chevy Big Block V8, 454 Chevy Big Block V8
Build Your KitYou're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Since 1990 Bill's Hot Rod Co. has had one goal in mind; to design alternator, air conditioner and power steering brackets that fit and are easy to use, as well as affordable and stylish. Brackets come completely assembled with all stainless steel bolts and washers, illustrated instruction sheet, and belt size recommendations with adjusting tips.
400 Series BBC Alternator Bracket, Short
Fabricated from 1/4" mild steel with stainless/chrome Allen head hardware. Simple installation; all brackets are pre-assembled. Drilling or tapping is not required. Mounts using only the water pump and intake manifold bolts. Accepts stock GM Delco 10-SI (1970-1989 style) alternators.
- Designed for use with short water pumps
- Driver side
- Works with stock steel or aluminum aftermarket pulleys
- Not for use with "tall" deck blocks
500 Series BBC Power Steering Bracket

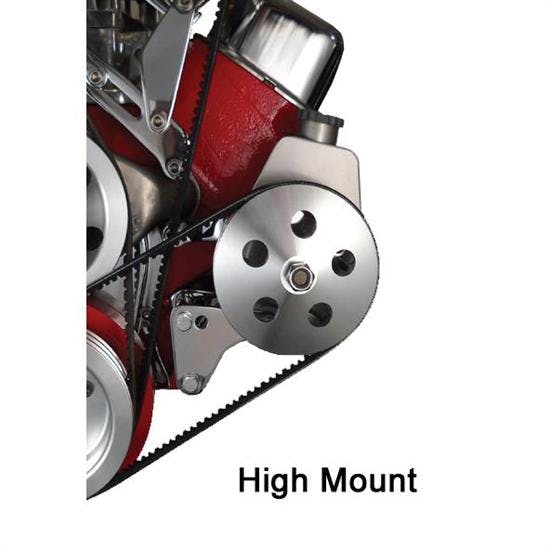

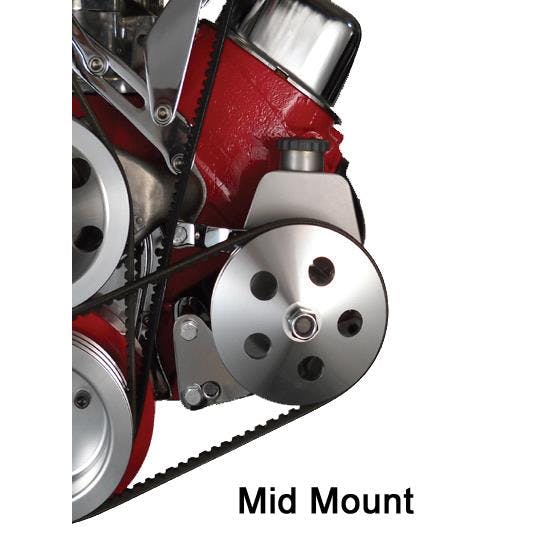

The 500 Series power steering pump bracket will fit a wide range of applications due to it's 3 mounting positions: low, mid and high. The bracket comes pre-assembled and attaches to the lower left front of the block using the two lower bolt holes located by the timing cover (the old front motor mount holes). The adjusting arm mounts to the lower water pump hole. This bracket accepts stock GM Saginaw power steering pumps with the attached reservoir. We recommend the 1971-74 Camaro style pumps.
- Fabricated from 1/4" mild steel
- Simple installation - all brackets are pre-assembled
- Drilling or tapping is not required
- Attaches to the lower left front of the block
- Accepts stock GM Saginaw power steering pumps with attached reservoir
- Works with "short" water pumps only
- Works with 8" harmonic balancers
- Works with stock steel or aftermarket pulleys
- Includes stainless Allen head hardware
- Fits big block Chevy V8 396-454 engines
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

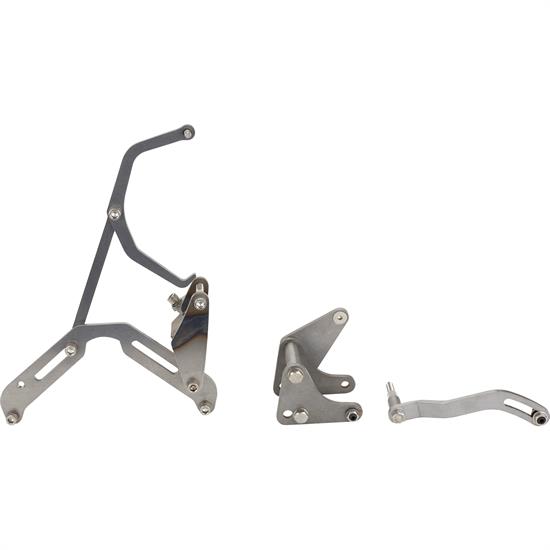

What's In The Kit
Bills Hot Rod Co. 400 Series BBC Alternator Bracket, RawPart # 91667924-RAWQty x 1
Bills Hot Rod Co. 500 Series B/B Chevy Power Steering Bracket, RawPart # 91667921-RAWQty x 1
