Bills Hot Rod Co.300 Series SBC PS Pump Bracket-Short Pump

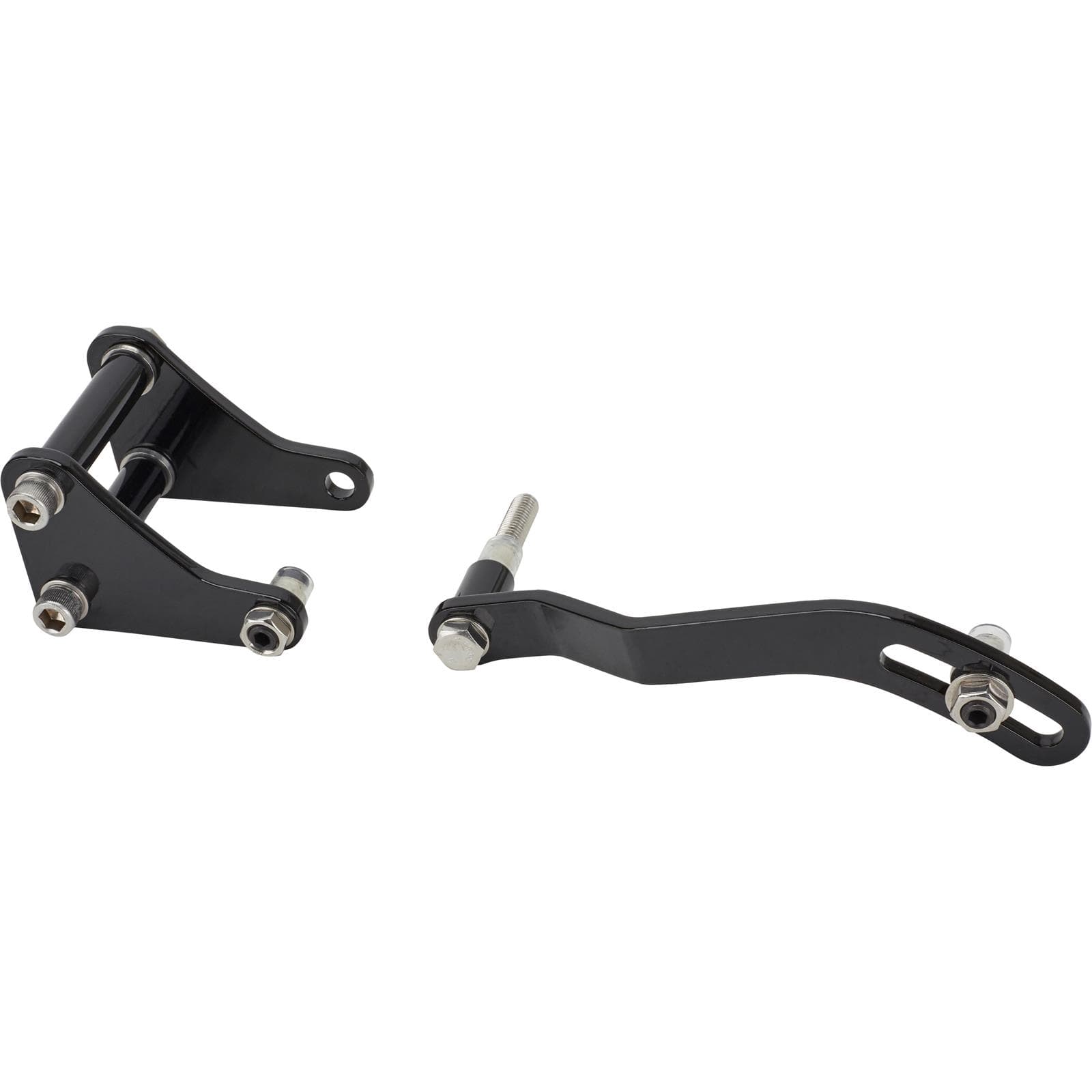

Bills Hot Rod Co. 300 Series Power Steering Pump Brackets for SBC

Bills Hot Rod Co. 300 Series Power Steering Pump Brackets for SBC

Chevy Small Block V8, Mild Steel, Raw Machined, Hardware Included, Short/Long Water Pump Style

18 Reviews | 8 Answered Questions
In Stock
Can Ship FREE
Select your vehicle to verify fitment.
Select Vehicle
Bills Hot Rod Co. 300 Series Power Steering Pump Brackets for SBC
Bills Hot Rod Co. 300 Series Power Steering Pump Brackets for SBC
Bills Hot Rod Co. 300 Series Power Steering Pump Brackets for SBC
Bills Hot Rod Co. 300 Series Power Steering Pump Brackets for SBC
Bills Hot Rod Co. 300 Series Power Steering Pump Brackets for SBC
Bills Hot Rod Co. 300 Series Power Steering Pump Brackets for SBC
Bills Hot Rod Co. 300 Series Power Steering Pump Brackets for SBC
Bills Hot Rod Co. 300 Series Power Steering Pump Brackets for SBC
Bills Hot Rod Co. 300 Series Power Steering Pump Brackets for SBC
Bills Hot Rod Co. 300 Series Power Steering Pump Brackets for SBC
X
Bills Hot Rod Co. 300 Series Power Steering Pump Brackets for SBC
Bills Hot Rod Co. 300 Series Power Steering Pump Brackets for SBC
Bills Hot Rod Co. 300 Series Power Steering Pump Brackets for SBC
Bills Hot Rod Co. 300 Series Power Steering Pump Brackets for SBC
Bills Hot Rod Co. 300 Series Power Steering Pump Brackets for SBC
Bills Hot Rod Co. 300 Series Power Steering Pump Brackets for SBC
Bills Hot Rod Co. 300 Series Power Steering Pump Brackets for SBC
Bills Hot Rod Co. 300 Series Power Steering Pump Brackets for SBC
Zoomed In Image
Part # 91667920
Starting from
$79.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
  • Mounts low on drivers side
  • Two positions for superior adjustability
  • Works with both short and long style water pumps
  • Use with GM Saginaw pumps with attached reservoir, "type 1" power steering pumps
  • Works with stock steel or aluminum aftermarket pulleys

Details

MFG. Part #:
301
Material Type:
Mild Steel
Finish:
Raw Machined
Hardware Included:
Yes
Sold in Quantity:
Set
Notes:
Works with both Short and Long water pump.
Water Pump Style:
Short/Long
Mounting Side:
Driver Side

Info

Fabricated from 1/4" mild steel with stainless/chrome Allen head hardware. Simple installation; all brackets are pre-assembled. Drilling or tapping is not required. Attaches to the lower left front of the block using the two lower bolt holes located by the timing cover (the old front motor mount holes). The adjusting arm mounts to the lower water pump hole.

  • Mounts low on drivers side
  • Two positions for superior adjustability
  • Works with SHORT & LONG style water pumps
  • Use with GM Saginaw pumps with attached reservoir, "type 1" p.s. pumps
  • Works with stock steel or aluminum aftermarket pulleys
  • Choose black or chrome finish

Power Steering Tech Questions/Tips (Link)

Power Steering Application Tech Questions/Tips (Link)

Installation Instructions (PDF)

Notes

Bracket mounts to the lower left front of the block using the two lower bolt holes located by the timing chain cover (the old front motor mount holes).  The adjusting arm mounts to the lower water pump hole.

Bracket will fit a wide range of applications due to its two mounting positions: LOW and HIGH

Bracket fits a G.M. Saginaw power steering pump with attached reservoir.

Brackets are made of 1/4" mild steel plate for strength and durability.

All brackets are made in the U.S.A.  Brackets come  completely assembled with all stainless steel bolts and washers, an illustrated instruction sheet and belt size recommendations with adjusting tips.

If power steering is used with bracket # 91667920, the power steering belt makes use of the third groove (farthest foward groove) on a three groove pulley (our pulley # 91015480).
