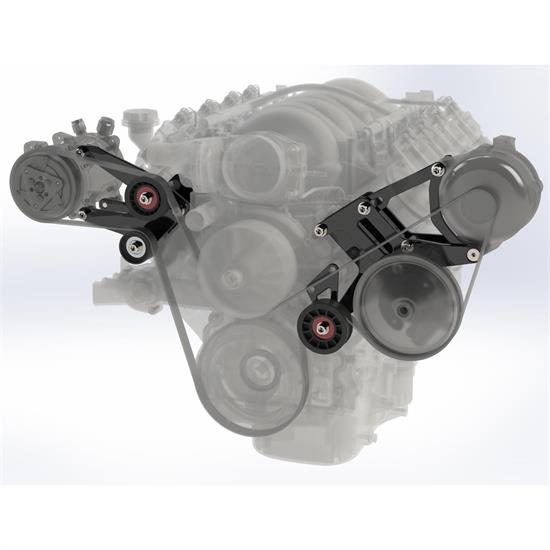

Bills Hot Rod Co 1100 Series Serpentine Front Drive Kit, LS Engine

• Serpentine drive brackets fit both Gen 3 and Gen 4 LS series cylinder heads
• Repositions A/C compressor up and away from frame rail for better engine fit
• Utilizes commonly available and affordable Sanden 508 AC compressor
• LS accessory brackets come completely assembled with stainless hardware
• Alternator/PS bracket designed to use standard GM alternators and GM Type II PS pump
• Spacer kits (sold separately) adapt to F-Body LS1, GTO, Gen 5 Camaro, or GM truck front drive offset
• Choose between black powder coated, chrome plated, or raw steel finishes

A Compact Serpentine Drive Solution for Your Budget LS Swap

For the most part LS swaps are a trouble free affair, which is why they are so popular. That said, where we often see people run into issues is in classic car swaps where the frame/front subframe’s engine crossmember and steering gear box interfere with the LS engine’s factory low mounting location for the air conditioning compressor and power steering pump. Speedway Motors has developed a new wallet friendly LS accessory drive kit to solve this issue.

Our Bill’s Hot Rod Co. 1100 Series LS accessory drive kit includes an alternator bracket and power steering pump bracket, and air conditioning bracket that solves these issues. These LS simple brackets relocate the accessories to a higher, outside position on the engine, but well below the hood line of most vehicles. This frees up the lower sides of the engine block for mounting clearance into the chassis of your classic car, allowing the stock frame/engine crossmember to work with nothing more than motor mount adapters or swap mounts.

Pre-Assembled Steel Brackets Are Strong and Easy to Install

The combination alternator/power steering pump LS accessory brackets are designed to use LS alternators from 1998-2002 Camaro/Firebird, 2000-2015 GM truck, Cadillac CTS-V LS6/LS2, and 2010-2015 Camaro applications. For applicable power steering pumps simply source from 1998-2002 4th Gen Camaro/Firebird (GM 26086074) along with the proper GM pulley (GM 12559885). The LS accessory drive kit system works with the short Corvette water pump (GM 89018052), mid-length “wide pulley” 4th Gen Camaro water pump (GM 19256263), or long truck length water pump (GM 19207665). This truck length water pump can be sourced from a LS3/L99 5th Gen Camaro application. It is the same length as a truck water pump with a driver’s side upper radiator hose connection. These LS simple brackets come completely assembled with all stainless steel bolts and washers, illustrated instruction sheet, and belt size recommendations.

The included A/C compressor bracket is designed to mount aftermarket Sanden SD-508 compressors onto Gen 3/Gen 4 GM LS engines (non-supercharged). It works with all water pump applications noted previously above. Note that an additional spacer kit may be required to work with certain accessory combinations, such as the LS3 accessory drive (depending on what vehicle your engine’s accessories came from). See additional spacer notes in our installation tips section for more details. Lastly, if you’re working with a bare engine (such as a new crate engine), we do offer our Bills Hot Rod Co. 200 Series bracket kit in an all-inclusive accessory drive solution with new accessories, belt tensioner, serpentine belt, power steering reservoir, and more in long, mid, and short drive configurations!

Short Water Pump OE PN 89018052 (LS2, no spacers required):

2004-2007 Cadillac CTS-V (LS2/LS6)
2005-2008 Chevrolet Corvette Z06
2008-2009 Pontiac G8 GT

Mid-Length Water Pump OE PN 19256263 (LS1/LS6, use spacer kit 91668043):

1997-2004 Chevrolet Corvette
1998-2002 Chevrolet Camaro Z28 and SS
1998-2002 Pontiac Firebird Formula and Trans Am
2004-2006 Pontiac GTO

Long “Truck Length” Water Pump OE PN 19207665 (LS3/L99, use spacer kit 91668044 for the Alt & P/S and spacer kit 91668045 for AC):

2010-2015 Chevrolet Camaro SS
