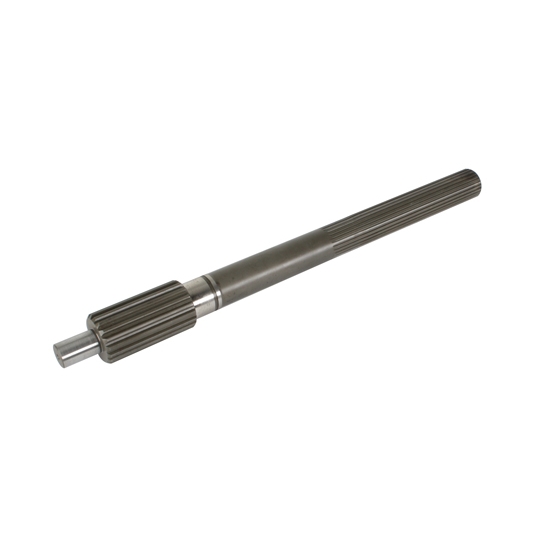

Bert Transmission 13 Output Shaft, Late Model
Bert Transmission 13 Output Shaft, Late Model
Bert Transmission

|

#73613

Bert Transmission 13 Output Shaft, Late Model

  • Late model Output shaft
  • Item number 13 on the exploded view
See More

$146.99

/each

In Stock


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Bert

  • Late model Output shaft
  • Item number 13 on the exploded view
See more details

Key Specs

MFG. Part #13
BrandBert Transmission
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Bert Transmission 13 Details

Bert Racing Transmission Replacement Output Shaft

  • Late Model
  • Exploded View Item #13

Charts

Bert Transmission 13 Specifications

KEY SPECS
MFG. Part #13
BrandBert Transmission
GENERAL
Notes36 SPLINE OUTPUT 1.166 OD X 7-1/4" .604 END ID X 14 INCH DEEP. 1.139 DIA FROM 7-3/8 TO 11-1/2 INCH 1.181 BEARING DIA. 11-1/2 TO 12-1/8 18 SPLINE 1.580 OD X 2.934 LG .750 DIA BEARING PILOT FROM 15-1/16 TO 16-3/4 END.
Sold in QuantityEach

Questions & Answers

1 Question • 1 Answer

I have the lmz style trani , have a 8 inch yoke , my drive shaft goes in about 4 inches then stops will this output shaft let my yoke go all the way in ? If yes will this shaft go in my lmz model trani with parts that are already in it or will I need other parts to make this work in my trani thank you

by jesse

• 11 years ago

1 answer

View Answer

1 of 1 questions shown
