Bendix Style Front Brake Kit for 1937-48 Ford Spindles, 12x2 Inch
Bendix Style Front Brake Kit for 1937-48 Ford Spindles, 12x2 Inch

Bendix Style Front Brake Kit for 1937-48 Ford Spindles, 12x2 Inch

5 on 5.5" Bolt Pattern, 13.63" Overall Diameter, 3.812" Overall Width, 1/2"-20 Thread Pitch

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Bendix Style Front Brake Kit for 1937-48 Ford Spindles, 12x2 Inch
Bendix Style Front Brake Kit for 1937-48 Ford Spindles, 12x2 Inch
Bendix Style Front Brake Kit for 1937-48 Ford Spindles, 12x2 Inch
Bendix Style Front Brake Kit for 1937-48 Ford Spindles, 12x2 Inch
Bendix Style Front Brake Kit for 1937-48 Ford Spindles, 12x2 Inch
Bendix Style Front Brake Kit for 1937-48 Ford Spindles, 12x2 Inch
Bendix Style Front Brake Kit for 1937-48 Ford Spindles, 12x2 Inch
Bendix Style Front Brake Kit for 1937-48 Ford Spindles, 12x2 Inch
Bendix Style Front Brake Kit for 1937-48 Ford Spindles, 12x2 Inch
Bendix Style Front Brake Kit for 1937-48 Ford Spindles, 12x2 Inch
Bendix Style Front Brake Kit for 1937-48 Ford Spindles, 12x2 Inch
Bendix Style Front Brake Kit for 1937-48 Ford Spindles, 12x2 Inch
X
Bendix Style Front Brake Kit for 1937-48 Ford Spindles, 12x2 Inch
Bendix Style Front Brake Kit for 1937-48 Ford Spindles, 12x2 Inch
Bendix Style Front Brake Kit for 1937-48 Ford Spindles, 12x2 Inch
Bendix Style Front Brake Kit for 1937-48 Ford Spindles, 12x2 Inch
Bendix Style Front Brake Kit for 1937-48 Ford Spindles, 12x2 Inch
Bendix Style Front Brake Kit for 1937-48 Ford Spindles, 12x2 Inch
Bendix Style Front Brake Kit for 1937-48 Ford Spindles, 12x2 Inch
Bendix Style Front Brake Kit for 1937-48 Ford Spindles, 12x2 Inch
Bendix Style Front Brake Kit for 1937-48 Ford Spindles, 12x2 Inch
Bendix Style Front Brake Kit for 1937-48 Ford Spindles, 12x2 Inch
Zoomed In Image
Part # 9108928
Save $41
$984.99
$1,025.85
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • Kit Includes brake backing plate assembly, drums, wheel hubs, bearings and seals for both right and left sides
  • Self-energizing 12" x 1-3/4" or 12" x 2" backing plate assembly complete with shoes, wheel cylinders and hardware
  • New iron 12" x 2" brake drum and wheel hubs with 5" x 5-1/2" bolt circle
  • Fits front of '37-'48 Ford cars and '37-'47 1/2 ton pickups
  • Wheel cylinder inlet is 7/16"-20 straight thread, *NOT* IFF

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Speedway Specialty Kits:
Speedway Specialty Kits
MFG. Part #:
9108928
Bolt Pattern:
5 on 5.5"
Overall Diameter:
13.63"
Overall Width:
3.812"
Sold in Quantity:
Kit
Thread Pitch:
1/2"-20
Stud Length:
1.2"

Info

If you want the early look but are reluctant to use old non-energizing drum brakes, we have just what you need. This complete front drum brake kit includes backing plate assembly, brake drums, wheel hub, wheel bearings and seals.

Our 100% new self-energizing backing plate assemblies come complete with shoes, wheel cylinders and hardware. Fits either the front of 1937-48 Ford cars or 1937-47 Ford half-ton pickups.  The new 12" x 2" brake drums and wheel hubs are front early Ford car of the 1940 design which was slip-over drum configuration (brake drum mounts to the "front" side of the hub).  Studs are installed on a 5 on 5-1/2" bolt circle.

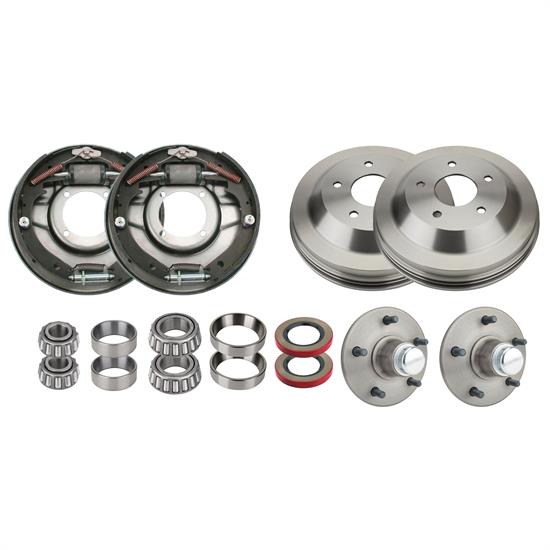

Kit Includes

  • (1) Bendix style brake backing plate assembly, pair
  • (2) 12" x 2" Brake Drum
  • (2) Early Ford front wheel hub, 5"x5-12" bolt pattern
  • (2) Inner bearings
  • (2) Outer bearings
  • (2) Inner wheel seals
  • (2) Inner bearing races
  • (2) Outer bearing races

Wheel Cylinder Inlet: 7/16"-20 straight thread
NOT 7/16"-20 IFF
Inlet fitting will require a sealing washer or O-ring style fitting
Bolt Pattern: 3-3/8" center-to-center both horizontal and vertically
If using Model A or B spindles the holes will have to be elongated inward to fit the narrower bolt pattern

We recommend use of adapter rings 916-31928 to keep the spindle centered in the backing plate





Notes

  1. Spindle modification is necessary when installing these backing plates. Up to 1/4" of material may need to be removed on the top of the spindle.  (Now available are ready-to-use spindles that feature this modification as # 910-32111)
  2. Our flat plate steering arms WILL NOT fit this backing plate.
  3. Wheel cylinders will need an O-ring or a sealing washer as they are not IFF fittings. If using with Model A or B spindles, the four bolt holes will have to be elongated inward to fit that narrower bolt pattern. We recommend using a 916-31928 adapter ring for this application.

Important Messages

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

Related Products

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Bendix Style Brakes for 1937-48 Ford Spindles, 12 x 2 Inch
    Qty x 1
  • 12 x 2 Brake Drum for Bendix Style 1937-48 Ford Brakes
    Qty x 2
  • Speedway 1940-Design Early Ford Front Wheel Hub, 5 on 5.5 BP
    Qty x 2
  • 35-48 Ford Inner Bearing Cone
    Qty x 2
  • 35-48 Ford Outer Bearing Cone
    Qty x 2
  • Front Wheel Seal 35-48 Ford
    Qty x 2
  • Sprint Taper Hub Outer Race, Small
    Qty x 2
  • 09074 Bearing Cup
    Qty x 2
