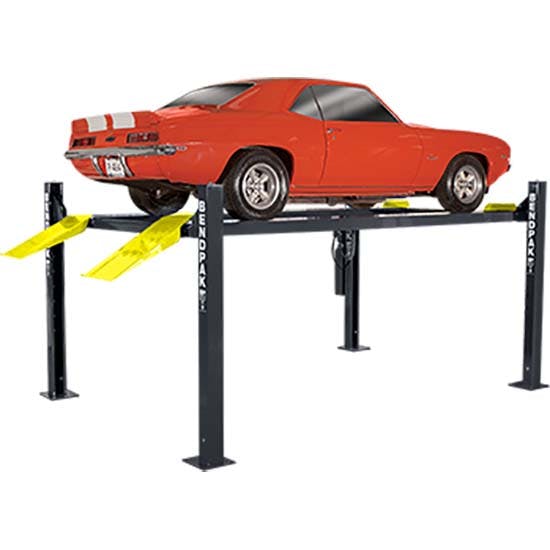

BendPak HD9ST Four Post Lift, 9,000 Pound Lifting Capacity

The space-saving design of the BendPak 9,000-lb. capacity HD-9ST is ideal for vehicle storage in residential garages or commercial buildings. It also doubles as a great service lift for smaller shops who still want to do a big business. No special foundation is required and the installation is a cinch.

The BendPak HD-9ST car lift is about the size of a typical parking space and will truly maximize your valuable floor area. Use the BendPak HD-9ST for storing ATVs, snowmobiles, jet skis, golf carts, boats or just about anything else that needs to be off the ground. Now you can finally make use of that wasted vertical space above your car. If you’ve got at least standard 8-foot ceiling, this lift will work for you.

Just don’t make the mistake of calling the BendPak HD-9ST a “hobby lift.” Our expert engineers have packed this model with advanced features that were previously only found on commercial-grade designs. Plus, it’s a BendPak, so you know this car lift backed by over 40 years of experience and a reputation that carries just as much weight as the lifts themselves. We’re proud to have these BendPak HD-Series lifts in our lineup, and you’ll be proud to have one in your shop or garage.

• 9,000-lb. maximum lifting capacity
• CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
• Two different ramp lengths to choose from
• Narrow width for space efficiency
• Freestanding design
• Perfect for parking, storage and service
• Runways accommodate narrow and standard vehicles
• Runways include rail-kit for optional accessories
• Electric / hydraulic power system
• Single hydraulic cylinder mounted underneath runway
• Fully enclosed lifting cables, safety locks and sheaves
• Internal anti-sway slider blocks in each column

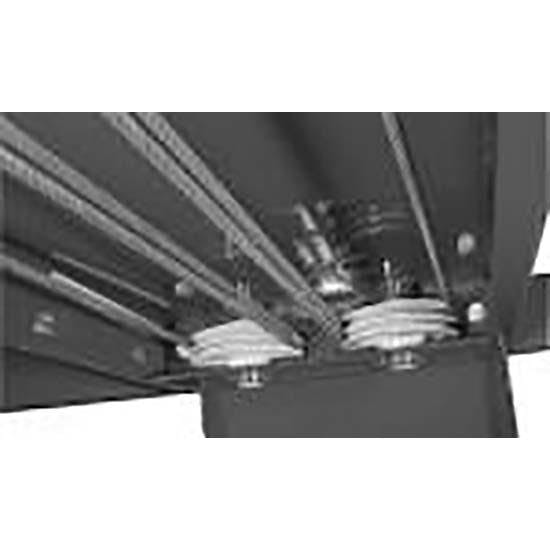

• Oversized self-lubricating cable rollers
• Features heavy-duty 3/8" aircraft cable
• Rugged 1-1/4" roller axles

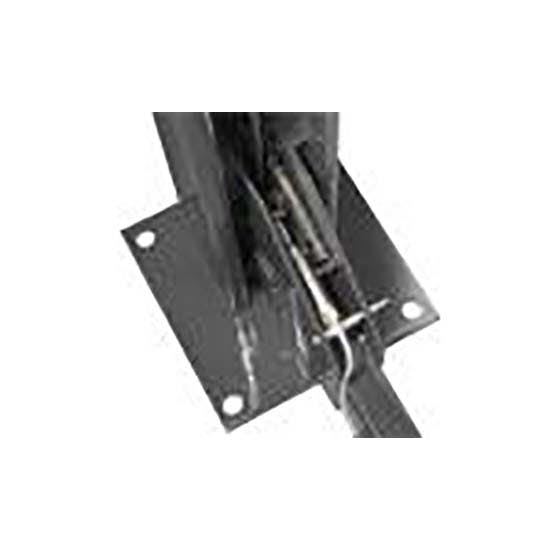

• Multi-position safety locks in each column
• Adjustable lock ladders
• Runways feature non-skid surface
• Push-button pneumatic safety release
• Independent backup slack-cable safety latches
• Customizable power unit location
• Removable approach ramps for additional drive-under clearance
• Longer approach ramps for low-ground clearance vehicles
• ETL Approved

Due to the shipping weight and dimensions of this item, it is required that it be shipped to a business address that will have either a receiving dock or fork lift at the delivery destination to allow for the item to be unloaded from the truck/trailer at the time of delivery.

HD9 Series lifts

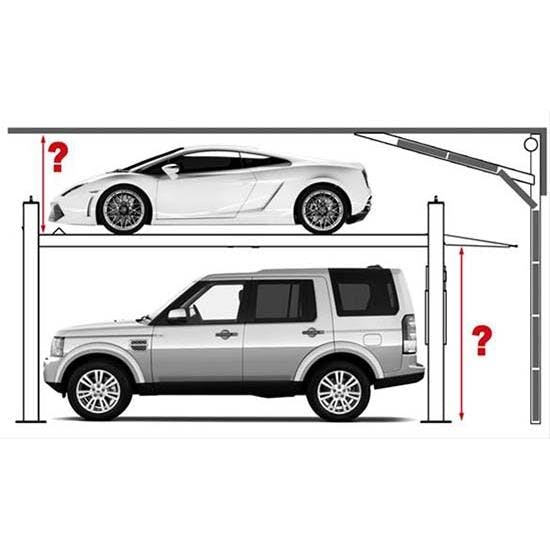

HD-9-Clearance-Heights
