Part # 9105175968

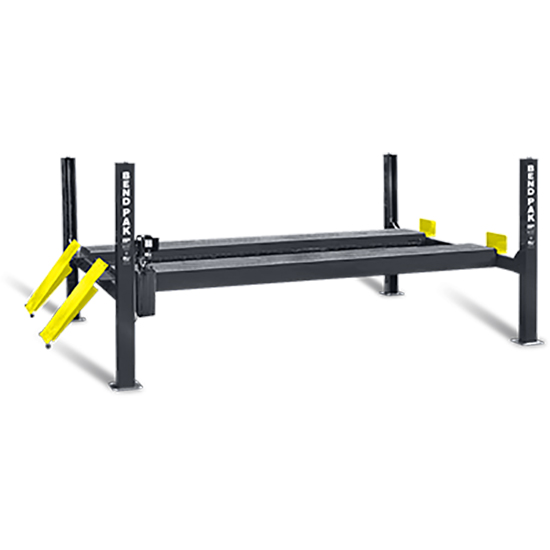

BendPak 5175968 Four-Post Vehicle Lift 18,000 Lbs
by
BendPak
$20,300.00
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before August 31st.
Add to a list
Share
Product Summary
18,000 lbs. Lifting Capacity, 93.00" Overall Height
See more details
Key Specs
MFG. Part # | 5175968 |
Brand | BendPak |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
Ready to lift a bus, dump truck and some truly heavy farm equipment? You may just need the HDS-18E, BendPak’s 18,000-lb. capacity four-post truck lift that also handles your low-rise sports cars and compacts with ease.
BendPak's HDS-18E four-post lift is engineered to make light work out of heavy lifting. It’s built to last and features upgrades that increase safety, durability and productivity. This is the lift that graduates from the class of mid-size trucks, vans and SUVs up to heavy-duty applications. This is a professional car lift that can even handle some industrial and farming equipment. It’s also lighter-duty than other lifts in the truck-weight category, so it’s not overkill when you don’t need, for instance, 20 tons of lift capacity when 9 tons will do just fine.
To accommodate long wheelbases, the HDS-18E offers extended runways that are 263” front-to-back. This is the first of the heavy-duty models to offer extended runways. All 27K, 35K and 40K lifts are built this way. Better-gripping runways ensure the massive tires on your massive vehicles stay put. If the runways gets slick, their treaded surfaces are still able to grab the wheels without damaging or marring them.
- 18,000-lb. lifting capacity
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
- Supersized 12" diameter cable sheaves
- Galvanized lifting cables
- Grease nipples
- Single hydraulic under-runway cylinder
- Integrated flow restrictor
- Durable powder coat
- Spring-loaded safety locks
- Second lock system on constant guard
- Fully enclosed lifting cables
- Multiple adjustable height locking positions
- Maintenance-free electric hydraulic power system
- Conveniently positioned operator controls
- 12" x 12" base plates
- Non-skid runways
Due to the shipping weight and dimensions of this item, it is required that it be shipped to a business address that will have either a receiving dock or fork lift at the delivery destination to allow for the item to be unloaded from the truck/trailer at the time of delivery.
Charts
Specs
Capacity
Lifting Capacity*- 18,000 lbs.
*Max Capacity / Front Axle - 9,000 lbs.
*Max Capacity / Rear Axle - 9,000 lbs.
Rise
A - Min. Runway Height: - 8.5”
B - Max. Rise: - 60”
C - Max. Lifting Height: - 68.5”
Time to Full Rise: - 75 seconds
Outside Dimensions
D - Overall Width: - 154”
E - Outside Length: - 257”
F - Overall Length: - 297”
G - Height of Columns: - 93”
Inside Dimensions
H - Width Between Columns: - 134”
I - Drive-Thru Clearance: - 109”
Runways
J - Runway Width: - 22”
K - Length of Runways: - 263”
L - Width Between Runways: - 38” or 56”
M - Runway Centerline: - 60” or 78”
N - Outside Edge of Runways: - 82” or 100”
Minimum Wheelbase
Rated Capacity: - 185”
75% Capacity: - 160”
50% Capacity: - 135”
25% Capacity: - 110”
Locking
Locking Positions: - 9
Lock Spacing: - Every 6” / 152 mm
Power Unit
Motor: - 220 VAC / 60 Hz. 1Ph.
Noise: - 45 dB
Warranties
BendPak Limited Warranty (PDF)
Guides & Documents
Specifications
Specifications
KEY SPECS | |
---|---|
MFG. Part # | 5175968 |
Brand | BendPak |
GENERAL | |
Sold in Quantity | Each |
GTIN Code | 00849672022077 |
Lifting Capacity | 18,000 lbs. |
Overall Height | 93.00" |
Motor | 220 VAC / 60 Hz / 1 Ph |
Time to Full Raise | 75.00 seconds |
Overall Width | 154.00" |
Overall Length | 297.00" |
Outside Length | 257.00" |
Height of Columns | 93.00" |
Length of Runways | 263.00" |
Runway Min Height | 8.50" |
Runway Width | 22.00" |
Width Between Runways | 38.00" |
Max Lifting Height | 68.50" |
Width Between Posts | 134.00" |
Min. Wheelbase (25% Capacity) | 110.00" |
Min. Wheelbase (50% Capacity) | 135.00" |
Min. Wheelbase (75% Capacity) | 160.00" |
Min. Wheelbase (Rated Capacity) | 185.00" |
Locking Positions | 9 |
Lock Spacing | 6.00" |
