Product Summary

9,000 lbs. Lifting Capacity, 100.00" Overall Height

  • Has a 9,000-lb. maximum lifting capacity
  • Comes with independent backup slack-cable safety latches
  • Features an internal anti-sway slider blocks in each column
  • Lift meets or exceeds the standards prescribed by European Standard EN-1493
  • The runways accommodate narrow and standard vehicles and include rail-kit for optional accessories

Key Specs

MFG. Part #5175862
BrandBendPak
Overall Height100.00"

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

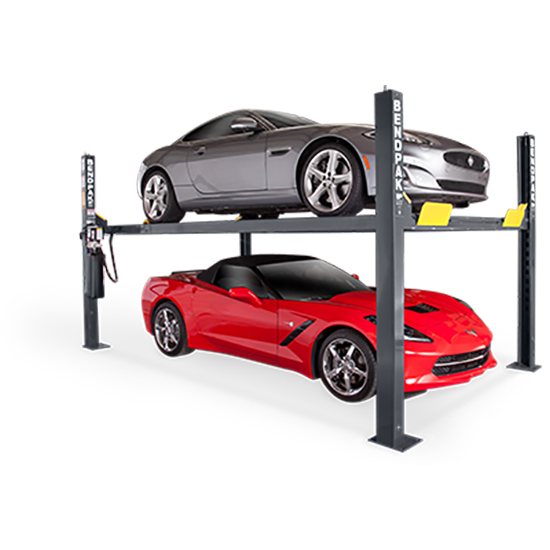

The HD-9STX is our tall and narrow four-post lift that combines a small horizontal footprint with extended-height runways, so higher-clearance vehicles can be easily parked underneath.

The HD-9STX is your 9,000-lb. rugged lifting solution for when you need get something heavy and high, but you don't have a lot of space on the ground. Perfect for vehicle storage and service—in the shop or garages with high ceilings.

With more height to work with, this lift does something others do not: it fits trucks and SUVs in the lower level. This is essential for parking purposes, especially if your lower-level vehicle is too heavy for the runways. A high-rise lift also increases the comfort of techs working underneath. Pulling transmissions and draining oil is safer and easier on high-rise car lift. The HD-9STX eliminates stooping and awkward straining when accessing the vehicle underbody. When you’re uncomfortable, you’re more likely to make mistakes, and there’s nothing better than a car lift that lifts to the perfect height.

  • 9,000-lb. maximum lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
  • Freestanding design
  • Narrow-width
  • High-rise
  • Perfect for parking, storage and service
  • Runways accommodate narrow and standard vehicles
  • Runways include rail-kit for optional accessories
  • Electric / hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks and sheaves
  • Internal anti-sway slider blocks in each column
  • Oversized self-lubricating cable rollers
  • Features heavy-duty 3/8" aircraft cable
  • Rugged 1.25" roller axles
  • Multi-position safety locks in each column
  • Adjustable lock ladders
  • Runways feature non-skid surface
  • Push-button pneumatic safety release
  • Independent backup slack-cable safety latches
  • Customizable power unit location
  • Removable approach ramps for additional drive-under clearance
  • Longer approach ramps for low-ground clearance vehicles

Due to the shipping weight and dimensions of this item, it is required that it be shipped to a business address that will have either a receiving dock or fork lift at the delivery destination to allow for the item to be unloaded from the truck/trailer at the time of delivery.



Charts

Specs

Capacity

Lifting Capacity* 9,000 lbs. (4,082 kg)
*Max Capacity / Front Axle 4,500 lbs. (2,041 kg)
*Max Capacity / Rear Axle 4,500 lbs. (2,041 kg)

Rise

A - Min. Runway Height: 4.5" (114 mm)
B - Max. Rise: 82" (2,083 mm)
C - Max. Lifting Height: 86.5" (2,197 mm)
Time to Full Rise: 50 seconds

Outside Dimensions

D - Overall Width: 100.25" (2,546 mm)
E - Outside Length: 198" (5,029 mm)
F - Overall Length: 224" (5,690 mm)
G - Height of Columns: 100" (2,540 mm)

Inside Dimensions

H - Width Between Columns: 89.75" (2,280 mm)
I - Drive-Thru Clearance: 76.5" (1,943 mm)

Runways

J - Runway Width: 19" (483 mm)
K - Length of Runways: 188" (4,775 mm)
L - Width Between Runways: 37.5" (953 mm)
M - Runway Centerline: 56.5" (1,435 mm)
N - Outside Edge of Runways: 75.5" (1,918 mm)

Minimum Wheelbase

Rated Capacity: 135" (3,429 mm)
75% Capacity: 115" (2,921 mm)
50% Capacity: 95" (2,413 mm)
25% Capacity: 80" (2,032 mm)

Locking

Locking Positions: 15
Lock Spacing: Every 4" / 102 mm

Power Unit

Motor: 220 VAC / 60 Hz. 1Ph.
Noise: 45 dB

Warranties

Specifications

KEY SPECS
MFG. Part #5175862
BrandBendPak
Overall Height100.00"
GENERAL
GTIN Code00849672001430
Sold in QuantityEach
Lifting Capacity9,000 lbs.
Motor220 VAC / 60 Hz / 1 Ph
Time to Full Raise50.00 seconds
Overall Width100.25"
Overall Length224.00"
Outside Length198.00"
Height of Columns100.00"
Length of Runways188.00"
Runway Min Height4.50"
Runway Width19.00"
Width Between Runways37.50"
Max Lifting Height85.50"
Width Between Posts89.75"
Min. Wheelbase (25% Capacity)80.00"
Min. Wheelbase (50% Capacity)95.00"
Min. Wheelbase (75% Capacity)115.00"
Min. Wheelbase (Rated Capacity)135.00"
Locking Positions15
Lock Spacing4.00"
