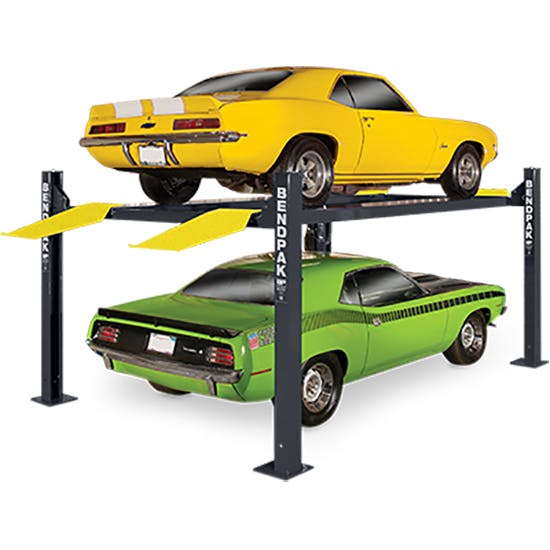

The HD-9XL is the ideal 9,000-lb. capacity four-post lift for vehicles with longer wheelbases. In fact, the runways are about two feet longer than the runways on the standard HD-9. This 4-post lift variety is available with optional casters, dip-trays, jack platform and more.

The HD-9XL four-post lift offers ample drive-thru clearance and lift height, but it features extended runways to accommodate longer wheelbases. It may be the width of a typical parking space, but this lift truly gets the most out of your valuable floor space. Use it for storing cars, trucks, ATVs, snowmobiles, jet skis, golf carts and just about anything with four wheels. All you need is an 8-foot ceiling, and this car lift makes use of all that empty space you’re currently wasting. An optional caster kit allows you to roll the lift anywhere you need it. Put simply, this four-post lift provides a vehicle maintenance and parking solution that no other lift in its class can offer. The only way to hoist those longer vehicles is to invest in the BendPak HD-9XL.

9,000-lb. maximum lifting capacity
CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
Wide drive-thru with standard lift height and long runways
Electric / hydraulic power system
Internal "Anti-Sway" slider blocks in each column
Features heavy-duty 3/8" aircraft cable
Multi-position safety locks in each column
Ramps feature non-skid surface
Runways include rail-kit for optional accessories
Single hydraulic cylinder underneath runway
Oversized self-lubricating cable rollers
Rugged 1.25" roller axles
Adjustable lock ladders
Push-button pneumatic safety release

Due to the shipping weight and dimensions of this item, it is required that it be shipped to a business address that will have either a receiving dock or fork lift at the delivery destination to allow for the item to be unloaded from the truck/trailer at the time of delivery.

Charts

BendPak Four-Post Vehicle Lift Installation and Operation Manual (PDF)

BendPak Delivery Requirements (PDF)

BendPak Delivery Information (PDF)

Specs

Capacity

Lifting Capacity*- 9,000 lbs.

*Max Capacity / Front Axle - 4,500 lbs.

*Max Capacity / Rear Axle -4,500 lbs.

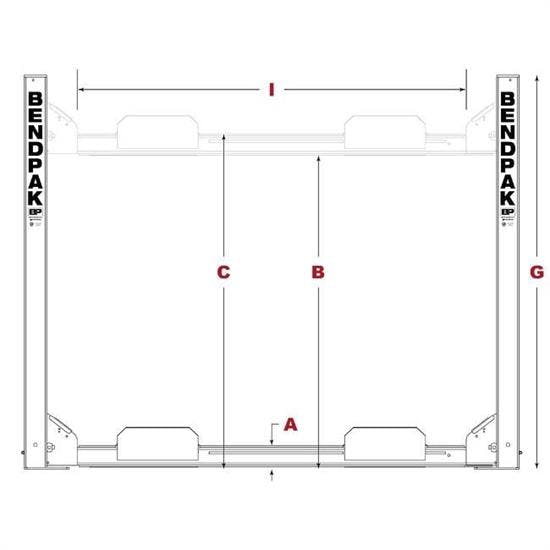

Rise

A - Min. Runway Height: - 4.5"

B - Max. Rise: - 70"

C - Max. Lifting Height: - 74.5"

Time to Full Rise: - 50 seconds

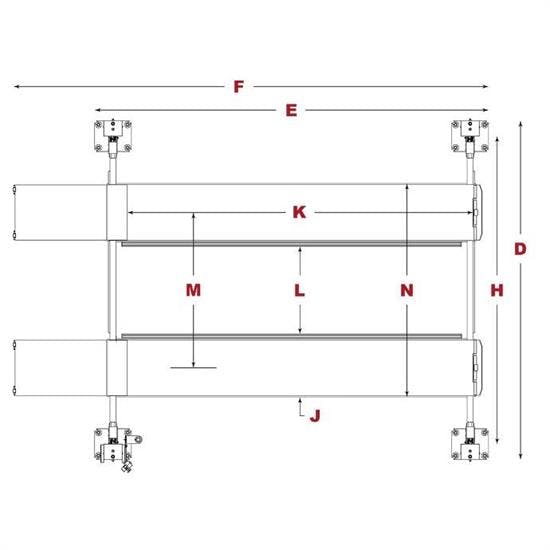

Outside Dimensions

D - Overall Width: - 110.25"

E - Outside Length: - 198"

F - Overall Length: - 224"

G - Height of Columns: - 88"

Inside Dimensions

H - Width Between Columns: - 100.25"

I - Drive-Thru Clearance: - 86.5"

Runways

J - Runway Width: - 19"

K - Length of Runways: - 188"

L - Width Between Runways: - 37.5"

M - Runway Centerline: - 56.5"

N - Outside Edge of Runways: - 75.5"

Minimum Wheelbase

Rated Capacity: - 135"

75% Capacity: - 115"

50% Capacity: - 95"

25% Capacity: - 80"

Locking

Locking Positions: - 12

Lock Spacing: - Every 4"

Power Unit

Motor: - 220 VAC / 60 Hz / 1 Ph

Noise: - 45 dB

Guides & Documents

Automotive Lifts Instruction Sheet (9105175859)

Warranty Information

Click for details

BendPak Limited Warranty (PDF)

BendPak 5175859 Specifications

KEY SPECS
MFG. Part #	5175859
Brand	BendPak
Lifting Capacity	9,000 lbs.
Overall Height	88.00"

GENERAL
GTIN Code	00849672001904
Sold in Quantity	Each
Motor	220 VAC / 60 Hz / 1 Ph
Time to Full Raise	50.00 seconds
Overall Width	110.25"
Overall Length	224.00"
Outside Length	198.00"
Height of Columns	88.00"
Length of Runways	188.00"
Runway Min Height	4.50"
Runway Width	19.00"
Width Between Runways	37.50"
Max Lifting Height	74.50"
Width Between Posts	100.25"
Min. Wheelbase (25% Capacity)	80.00"
Min. Wheelbase (50% Capacity)	95.00"
Min. Wheelbase (75% Capacity)	115.00"
Min. Wheelbase (Rated Capacity)	135.00"
Locking Positions	15
Lock Spacing	4.00"
