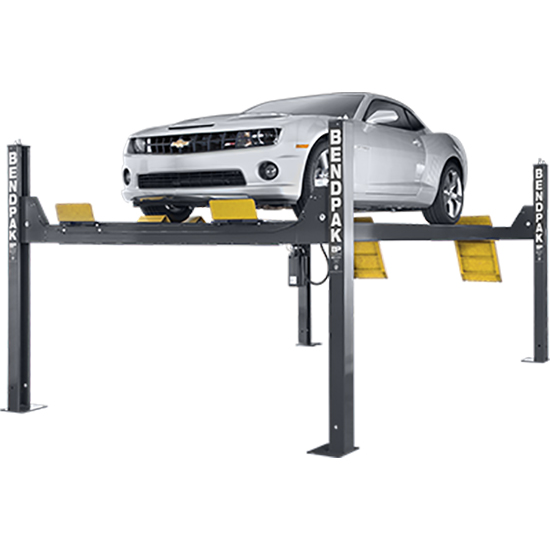

BendPak's HDS-14 four-post lift is a whole new breed of rugged. It features superior components that work better, are built to last and increase operator safety. If your service bay needs to get under heavy-duty, oversized vehicles on a daily basis, this lift is what you need.

BendPak's HDS-14 four-post lift is engineered to meet the strenuous demands of your toughest professional lifting applications. Incorporated into every lift is a laundry list of key features as long as your arm, ensuring BendPak lifts remain the absolute best.

14,000-lb. lifting capacity
CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
Mid to long-style approach ramps for low ground clearance vehicles
Runways include rail-kit for optional accessories
Single hydraulic cylinder mounted underneath runway
Fully enclosed lifting cables, safety locks and sheaves
Internal anti-sway slider blocks in each column
Pneumatic push-button safety release
Features heavy-duty 1/2" aircraft cable
Safety locks enclosed in columns minimize pinch points
Oversized sheave diameter reduces cable fatigue
Oversized self-lubricating cable rollers
Rugged 1.75" roller axles
Multi-position safety locks in each column
Customizable power unit location
Approach ramps incorporate built-in rear-wheel chocks
Independent backup slack-cable safety latches
Runways feature non-skid surface

Due to the shipping weight and dimensions of this item, it is required that it be shipped to a business address that will have either a receiving dock or fork lift at the delivery destination to allow for the item to be unloaded from the truck/trailer at the time of delivery.

Charts

BendPak Four-Post Vehicle Lift Installation and Operation Manual (PDF)

BendPak Delivery Requirements (PDF)

BendPak Delivery Information (PDF)

Specs

Lifting Capacity 14,000 lbs.
Runway Height 7-5/8"
Rise 70"
Lifting Height 77-5/8"
Overall Width 130"
Outside Length 213"
Overall Length 241"
Height of Columns 93"
Width Between Columns 120"
Drive-Thru Clearance 98"
Runway Width 20"
Length of Runways 199"
Width Between Runways 37.5"- 51"
Runway Centerline 57.5"- 71"
Outside Edge of Runways 77.5" - 91"
Min Wheelbase @ Rated Capacity 140”
Min Wheelbase @ 75% Capacity 120”
Min Wheelbase @ 50% Capacity 100”
Min Wheelbase @ 25% Capacity 80”
Locking Positions 13
Lock Spacing every 4”
Lifting Time 60 sec
Motor 220 VAC / 60 Hz / 1 Ph

Guides & Documents

Automotive Lifts Installation Instructions (9105175170)

Technical Information (BendPak)

Warranty Information

BendPak Limited Warranty (PDF)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

BendPak 5175170 Specifications

KEY SPECS
MFG. Part #	5175170
Brand	BendPak
Lifting Capacity	14,000 lbs.
Overall Height	93.00"

GENERAL
GTIN Code	00849672001096
Sold in Quantity	Each
Inside Columns- Narrow	120.00"
Motor	220 VAC / 60 Hz / 1 Ph
Time to Full Raise	60.00 seconds
Overall Width	130.00"
Overall Length	241.00"
Outside Length	213.00"
Height of Columns	93.00"
Length of Runways	199.00"
Runway Width	20.00"
Width Between Runways	37.50"
Max Lifting Height	77.625"
Width Between Posts	120.00"
Min. Wheelbase (25% Capacity)	80.00"
Min. Wheelbase (50% Capacity)	100.00"
Min. Wheelbase (75% Capacity)	120.00"
Min. Wheelbase (Rated Capacity)	140.00"
Locking Positions	13
Lock Spacing	4.00"
