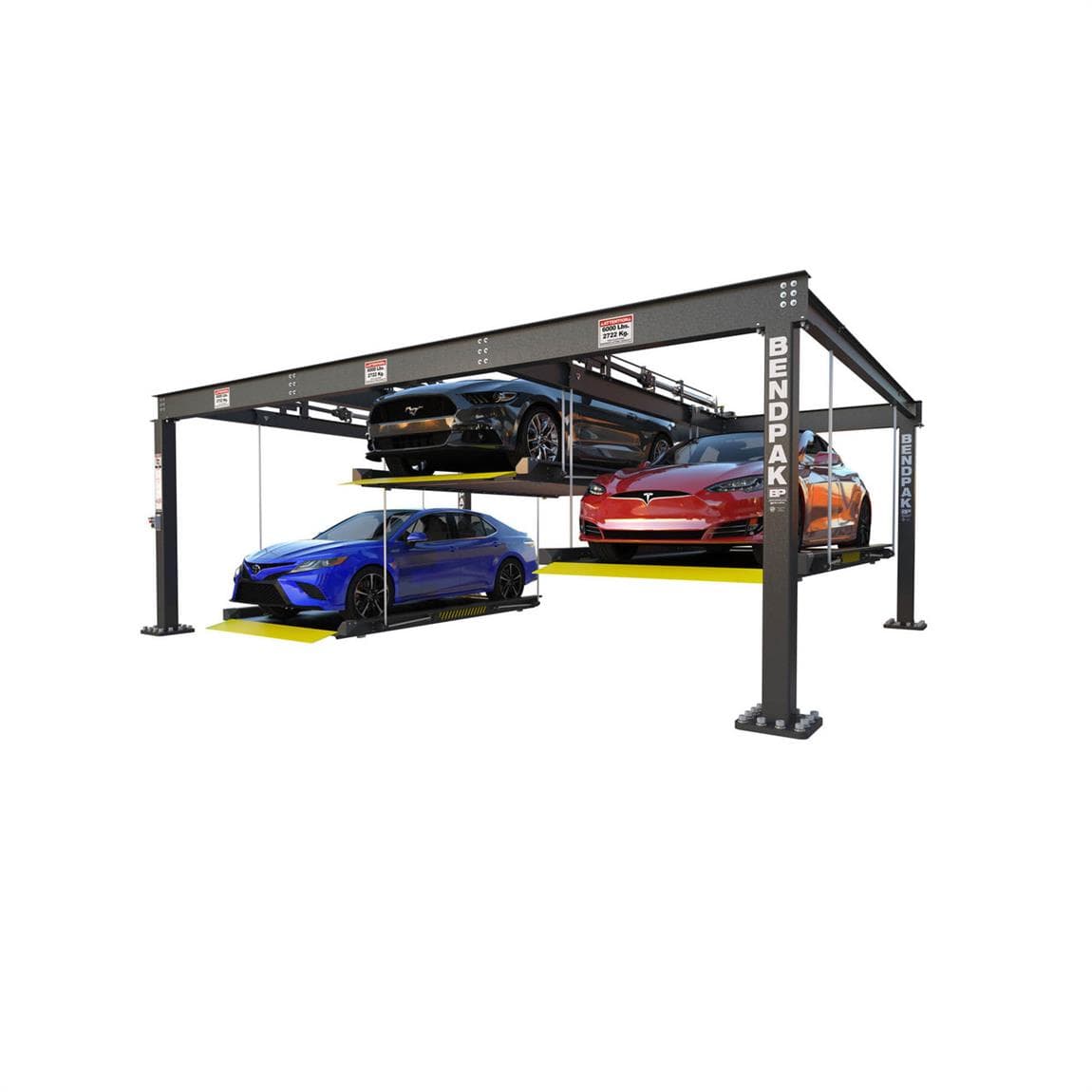

BendPak 5175154 PL-6KT Triple Parking Lift, 3x6000-lb. Platforms
- Triple-deck lift — 3 platforms; 6,000 lbs. each
- 18,000 lbs. total; 308" overall width
- Independent platform operation
$34,090.00
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Product Summary
6000 lbs. Lifting Capacity, 122.75" Overall Height
- Triple-deck lift — 3 platforms; 6,000 lbs. each
- 18,000 lbs. total; 308" overall width
- Independent platform operation
- 208-240V, 4 HP; special order
- For commercial and high-density parking
Need To Know
Truck Shipment
Truck shipments must be pre-paid with a credit card, certified check or money order
Need help?
855.313.9176Quick and Easy Returns
Return PolicyBendPak 5175154 Details
BendPak 5175154 Details
The BendPak PL-6KT is a triple-wide parking lift that turns any three-car garage into a six-vehicle storage or showroom space. A streamlined four-column structure leaves all three lifting platforms free from surrounding posts — making it one of the most functional triple-vehicle stackers on the market and the easiest to enter and exit. Each of three platforms is independently rated at 6,000 lbs., for 18,000 lbs. total system capacity.
The PL-6KT excels in both large residential garages and commercial spaces including municipal parking lots and custom shops. Overall width is 308\. Available as a special order only.
Specs
Height Range:
122.748"
Length Range:
236.535
Width Range:
308.408
Drive Thru Under Clearance on Top Lock Comb Units:
91.13" / 2315 mm
Drive Thru Width Range Comb Units:
278.38"
Drive Thru Width Standard Configuration Comb Units:
278.38" / 7072 mm
Height Overall Comb Units:
122.75" / 3118 mm
Overall Length Comb Units:
236.5" / 6008 mm
Overall Width Max Comb Units:
308" / 7823 mm
BendPak 5175154 Specifications
BendPak 5175154 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 5175154 |
| Brand | BendPak |
| Lifting Capacity | 6000 lbs. |
| Overall Height | 122.75" |
| GENERAL | |
| Notes | 18,000 Lb. Capacity Parking Lift / Triple / Independent Platforms / Special Order Only Triple Deck; 18,000 lbs. total |
| Sold in Quantity | Each |
| Overall Width | 308" |
