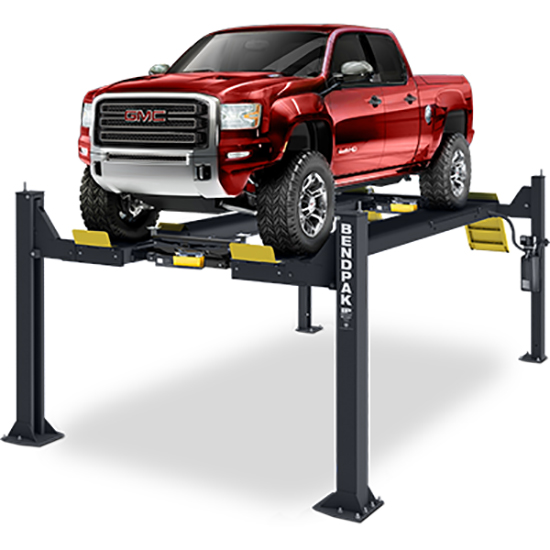

BendPak 5175152 Four-Post Vehicle Lift 14,000 Lbs, Open-Front
by
BendPak- Lift meets or exceeds the standards prescribed by European Standard EN 1493
- Features an extremely convenient open-front design for easy access
- Has an automatic leveling system with multiple auto-leveling locking positions
See More
$10,255.99
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before February 8th.
Add to a list
Share
Product Summary
14,000 lbs. Lifting Capacity, 143.00" Overall Width
- Lift meets or exceeds the standards prescribed by European Standard EN 1493
- Features an extremely convenient open-front design for easy access
- Has an automatic leveling system with multiple auto-leveling locking positions
- The safety locks are enclosed in columns to minimize pinch points
- An oversized sheave diameter reduces cable fatigue
See more details
Key Specs
MFG. Part # | 5175152 |
Brand | BendPak |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
The HDSO14P is a legendary 14,000-lb. capacity open-front four-post car lift that allows easy entry and exit beneath a vehicle. It is available with optional drive-thru ramps, drip trays and rolling jacks.
The HDSO14P is an open-front four-post lift that features clear entry upfront, providing easy vehicle access. A generous 14,000-lb. lifting capacity and extended runways allow you to service a wide variety of vehicles, ranging from small cars to full-size trucks.
BendPak cable sheaves are huge: 10.5” diameter sheaves and 2.25” diameter sheave axles, all kept within the runway and cross tubes. This cuts down on how much time and cash you have to spend on maintenance and general upkeep.
Each BendPak lift in this series features four, 1/2” diameter, 6 x 25 stainless-steel lifting cables that have an incredible breaking strength of over 14,400 lbs. each.
- 14,000-lb. lifting capacity
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
- Huge cable sheaves reduce wear and tear
- Extremely convenient open-front design for easy access
- Extended runway length for servicing
- Longer approach ramps for low ground clearance vehicles
- Electric / hydraulic power system
- Runways include rail-kit for optional accessories
- Runways adjust for different tread widths
- Automatic leveling system with multiple auto-leveling locking positions
- Single hydraulic cylinder mounted underneath runway
- Fully enclosed lifting cables, safety locks, and sheaves
- Internal anti-sway slider blocks in each column
- Pneumatic push-button safety release
- Features heavy-duty 1/2" aircraft cable
- Safety locks enclosed in columns minimize pinch points
- Oversized sheave diameter reduces cable fatigue
- Runways feature non-skid surface
- Rugged, self-lubricating cable sheaves
- Features 1-3/8” sheave axles
- Multi-position safety locks in each column
- Independent backup slack-cable safety latches
- Includes fully adjustable lock stops for precise leveling
Due to the shipping weight and dimensions of this item, it is required that it be shipped to a business address that will have either a receiving dock or fork lift at the delivery destination to allow for the item to be unloaded from the truck/trailer at the time of delivery.
Charts
Specs
Capacity
Lifting Capacity* -14,000 lbs.
*Max Capacity / Front Axle - 7,000 lbs.
*Max Capacity / Rear Axle - 7,000 lbs.
Rise
A - Min. Runway Height: - 7.625”
B - Max. Rise: - 70”
C - Max. Lifting Height: - 77.625”
Time to Full Rise: - 60 seconds
D - Overall width (FRONT) -143”
E - Overall Width (REAR) - 130”
F - Outside Length - 215.5”
G - Overall Length - 244”
H - Height of Columns (FRONT) - 105”
I - Height of Columns (REAR) - 103”
J - Width Between Columns (FRONT) - 123”
K - Width Between Columns (REAR) - 120”
L - Drive-Thru Clearance - 97”
M - Runway Width - 20”
N - Length of Runways - 199”
O - Width Between Runways - 45”
P - Runway Centerline - 65”
Q - Outside Edge of Runways - 85”
Minimum Wheelbase
Rated Capacity: - 140”
75% Capacity: - 120”
50% Capacity: - 100”
25% Capacity: - 80”
Locking
Locking Positions: - 13
Lock Spacing: - Every 4"
Power Unit
Motor: - 220 VAC / 60 Hz / 1 Ph
Noise: - 45 dB
Warranties
BendPak Limited Warranty (PDF)
Guides & Documents
Specifications
Specifications
KEY SPECS | |
---|---|
MFG. Part # | 5175152 |
Brand | BendPak |
GENERAL | |
GTIN Code | 00849672004738 |
Sold in Quantity | Each |
Lifting Capacity | 14,000 lbs. |
Width Outside of Columns- Narrow | 130.00" |
Width Outside of Columns- Wide | 143.00" |
Inside Columns- Narrow | 120.00" |
Inside Columns- Wide | 123.00" |
Motor | 220 VAC / 60 Hz / 1 Ph |
Time to Full Raise | 60.00 seconds |
Overall Width | 143.00" |
Overall Length | 244.00" |
Outside Length | 215.50" |
Height of Columns | 105.00" |
Length of Runways | 199.00" |
Runway Width | 20.00" |
Width Between Runways | 45.00" |
Max Lifting Height | 77.625" |
Min. Wheelbase (25% Capacity) | 80.00" |
Min. Wheelbase (50% Capacity) | 100.00" |
Min. Wheelbase (75% Capacity) | 120.00" |
Min. Wheelbase (Rated Capacity) | 140.00" |
Locking Positions | 13 |
Lock Spacing | 4.00" |
