Add to Cart
$5,435.00
$4,735.00

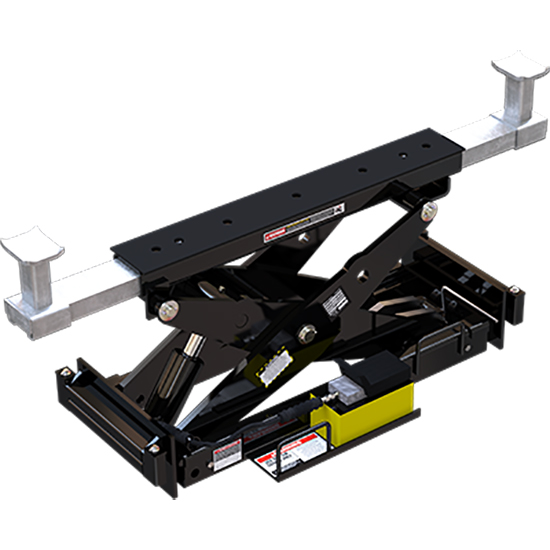

BendPak 5175032 Rolling Bridge Jack, 18,000 Lbs Capacity
BendPak 5175032 Rolling Bridge Jack, 18,000 Lbs Capacity

BendPak 5175032 Rolling Bridge Jack, 18,000 Lbs Capacity

18,000 lbs. Lifting Capacity

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
BendPak 5175032 Rolling Bridge Jack, 18,000 Lbs Capacity
BendPak 5175032 Rolling Bridge Jack, 18,000 Lbs Capacity
BendPak 5175032 Rolling Bridge Jack, 18,000 Lbs Capacity
X
BendPak 5175032 Rolling Bridge Jack, 18,000 Lbs Capacity
Zoomed In Image
We estimate this item will ship on or before July 14th.
Part # 9105175032
Save 12%
$4,735.00
$5,435.00
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Sold in Quantity:
Each
MFG. Part #:
5175032
GTIN Code:
00849672013945
Lifting Capacity:
18,000 lbs.

Info

The powerful 18,000-lb. capacity RBJ18000 rolling bridge jack is made for use with your HD-35 4-Post series lift. Sometimes a vehicle’s center of gravity isn’t in the exact middle of the vehicle. Even a 30,000-lb. vehicle might require a jack that is rated for more than half the vehicle’s weight.

While the 18,000-lb. capacity RBJ18000 will handle the weight of many heavy-duty vehicles, some larger trucks, buses and commercial drivers have significantly offset centers of gravity. It’s important to ensure your bridge jack is rated for the entire weight of both the front and back axles of the vehicle. The extra lift capacity of the RBJ18000 will compensate for a shifted center of gravity in heavy-duty vehicles being raised on the HDS35 or HDS40 series.

Features

Capacity

Lifting Capacity* 18,000 lbs. (8,165 kg)

Rise

A - Max. Height + Pad Only: 23" (584 mm)
B - Max. Height + Pad + Adapter: 26" (660 mm)
C - Min. Height + Pad Only: 17" (432 mm)
D - Min. Height + Pad + Adapter: 18" (457 mm)
Time to Full Rise: 45 seconds

Reach

F - Support Arm Width: 44.9" (1,140 mm) -
G - Max. Arm Reach: 63.5" (1,613 mm)
H - Min. Arm Reach: 39.5" (1,003 mm)

Power Unit

Motor: Air-Hydraulic Pump
Noise: 45 dB

Warranties

BendPak Limited Warranty (PDF)

Specs

  • 18,000-lb. lifting capacity
  • Rubber contact pads
  • Stackable adapters
  • High-pressure hydraulic power unit
  • Optional air-line kit

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for BendPak to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
