Product Summary

9,000 lbs. Lifting Capacity, 102.00" Overall Height

    Key Specs

    MFG. Part #5175024
    BrandBendPak
    Overall Height102.00"

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

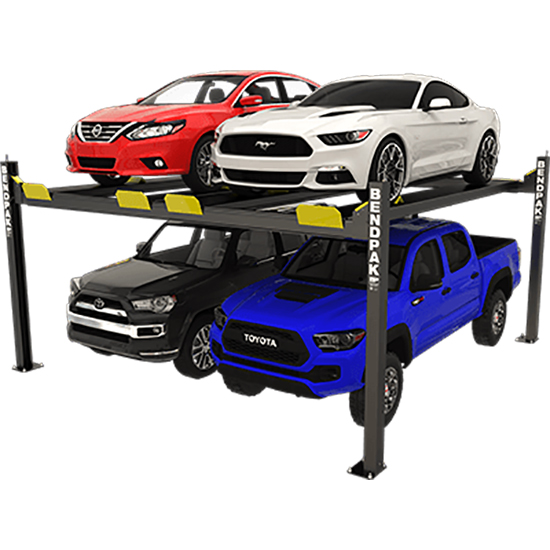

    HD-9SWX is ideal for anyone who wants a little extra standing room under their lift. Plus, the runways are 24" longer than our standard-length HD-SW. Park up to four cars, trucks and SUVs, and enjoy servicing two raised vehicles in a single lift.

    If you're looking for a little more lifting height, extended-length runways and a lot less column interference, then our HD-9SWX four-post lift is the answer. This super-wide, extended-length model is designed to transform your garage into a state-of-the-art parking facility. It turns that two-car space into a four-car trophy stand. The HD-9SWX is an extended length model with higher rise to provide exceptional clearance underneath. The extra dimensions are particularly useful for parking or servicing long-wheelbase vehicles,

    Auto shops sometimes prefer large lifts like the HD-9SWX because their techs need equipment that allows them to work on virtually anything that rolls through their doors. The 9,000-lb. capacity of this lift (4,500 lbs. max per car, per side) covers sedans and sports coupes.

    • 9,000-lb. maximum lifting capacity
    • Freestanding design
    • Perfect for parking, storage and service
    • Double-wide configuration for quad-vehicle storage
    • Four runways
    • Super-tall rise
    • Extra-long ramp
    • Runways accommodate wide or narrow vehicles
    • Runways include rail-kit for optional accessories
    • Electric / hydraulic power system
    • Single hydraulic cylinder mounted underneath runway
    • Fully enclosed lifting cables, safety locks and sheaves
    • Internal anti-sway slider blocks in each column
    • Oversized self-lubricating cable rollers
    • Oversized sheave diameter reduces cable fatigue
    • High-speed lifting
    • Features heavy-duty 3/8" aircraft cable
    • Rugged 1.25" roller axles
    • Multi-position safety locks in each column
    • Adjustable lock ladders
    • Runways feature non-skid surface
    • Push-button pneumatic safety release
    • Independent backup slack-cable safety latches
    • Inside runways adjust for different tread widths
    • Customizable power unit location
    • Removable approach ramps for additional drive-under clearance

    Due to the shipping weight and dimensions of this item, it is required that it be shipped to a business address that will have either a receiving dock or fork lift at the delivery destination to allow for the item to be unloaded from the truck/trailer at the time of delivery.



    Charts

    Specs

    Capacity

    Lifting Capacity*- 9,000 lbs.
    *Max Capacity / Front Axle - 4,500 lbs.
    *Max Capacity / Rear Axle -4,500 lbs.

    Rise

    A - Min. Runway Height: - 7"
    B - Max. Rise: - 82"
    C - Max. Lifting Height: - 89"
    Time to Full Rise: - 65 seconds

    Outside Dimensions

    D - Overall Width: - 202"
    E - Outside Length: - 198"
    F - Overall Length: - 224"
    G - Height of Columns: - 102"

    Inside Dimensions

    H - Width Between Columns: - 192"
    I - Drive-Thru Clearance: - 178"

    Runways

    J - Runway Width: - 19"
    K - Length of Runways: - 188"
    L - Width Between Runways: - 37"
    M - Runway Centerline: - 56"
    N - Outside Edge of Runways: - 75"

    Minimum Wheelbase

    Rated Capacity: - 135"
    75% Capacity: - 115"
    50% Capacity: - 95"
    25% Capacity: - 80"

    Locking

    Locking Positions: - 16
    Lock Spacing: - Every 4"

    Power Unit

    Motor: - 220 VAC / 60 Hz / 1 Ph
    Noise: - 45 dB

    Warranties

    Specifications

    KEY SPECS
    MFG. Part #5175024
    BrandBendPak
    Overall Height102.00"
    GENERAL
    GTIN Code00849672001027
    Sold in QuantityEach
    Lifting Capacity9,000 lbs.
    Motor220 VAC / 60 Hz / 1 Ph
    Time to Full Raise65.00 seconds
    Height of Columns102.00"
    Length of Runways188.00"
    Runway Min Height7.00"
    Runway Width19.00"
    Width Between Runways37.00"
    Max Lifting Height89.00"
    Width Between Posts192.00"
    Min. Wheelbase (25% Capacity)80.00"
    Min. Wheelbase (50% Capacity)95.00"
    Min. Wheelbase (75% Capacity)115.00"
    Min. Wheelbase (Rated Capacity)135.00"
    Locking Positions16
    Lock Spacing4.00"
