Product Summary

9,000 lbs. Lifting Capacity, 90.00" Overall Height

    Key Specs

    MFG. Part #5175023
    BrandBendPak
    Overall Height90.00"

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

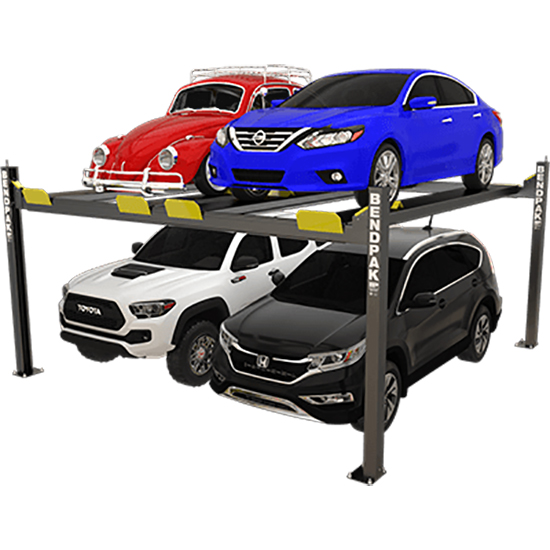

    To accommodate super-wide vehicles on a 9,000-lb. capacity four-post lift, choose the HD-9SW. The “SW” stands for super-wide, and it’s the ideal four-post lift to double your parking and/or service wider vehicles.

    There are thousands of vehicle types out there, and some come a bit wider than others. That’s no sweat for the HD-9SW, a four-post lift that sits fat and happy when it holds vehicles with wider frames. Plus, if you need a lift that offers truly gigantic proportions, the HD-9SWX is one heck of a choice. If your vehicles are tall, heavy and wide, and they need to be stacked or serviced, we can probably lift them. Both models are perfect for a “wide” range of vehicles.

    With all the same great parts and components as the HD-9, our super-wide lift is equally safe and efficient. Check out the working parts and components below to see what makes a BendPak better than the rest, no matter what height/width modifications we make for your pleasure and convenience.

    • Standard rise
    • Shorter runway for smaller spaces
    • Runways accommodate wide or narrow vehicles
    • Runways include rail kit for optional accessories
    • Electric / hydraulic power system
    • Single hydraulic cylinder mounted underneath runway
    • Fully enclosed lifting cables, safety locks and sheaves
    • Internal anti-sway slider blocks in each column
    • Oversized self-lubricating cable rollers
    • Oversized sheave diameter reduces cable fatigue
    • High-speed lifting
    • Features heavy-duty 3/8" aircraft cable
    • Rugged 1.25" roller axles
    • Multi-position safety locks in each column
    • Adjustable lock ladders
    • Runways feature non-skid surface
    • Push-button pneumatic safety release
    • Independent backup slack-cable safety latches
    • Inside runways adjust for different tread widths
    • Customizable power unit location
    • Removable approach ramps for additional drive-under clearance

    Due to the shipping weight and dimensions of this item, it is required that it be shipped to a business address that will have either a receiving dock or fork lift at the delivery destination to allow for the item to be unloaded from the truck/trailer at the time of delivery.



    Charts

    Specs

    Capacity

    Lifting Capacity*- 9,000 lbs.
    *Max Capacity / Front Axle - 4,500 lbs.
    *Max Capacity / Rear Axle -4,500 lbs.

    Rise

    A - Min. Runway Height: - 7"
    B - Max. Rise: - 70"
    C - Max. Lifting Height: - 77"
    Time to Full Rise: - 55 seconds

    Outside Dimensions

    D - Overall Width: - 202"
    E - Outside Length: - 174"
    F - Overall Length: - 200"
    G - Height of Columns: - 90"

    Inside Dimensions

    H - Width Between Columns: - 192"
    I - Drive-Thru Clearance: - 178"

    Runways

    J - Runway Width: - 19"
    K - Length of Runways: - 164"
    L - Width Between Runways: - 37"
    M - Runway Centerline: - 56"
    N - Outside Edge of Runways: - 75"

    Minimum Wheelbase

    Rated Capacity: - 115"
    75% Capacity: - 100"
    50% Capacity: - 85"
    25% Capacity: - 70"

    Locking

    Locking Positions: - 14
    Lock Spacing: - Every 4"

    Power Unit

    Motor: - 220 VAC / 60 Hz / 1 Ph
    Noise: - 45 dB

    Warranties

    Specifications

    KEY SPECS
    MFG. Part #5175023
    BrandBendPak
    Overall Height90.00"
    GENERAL
    GTIN Code00849672001010
    Sold in QuantityEach
    Lifting Capacity9,000 lbs.
    Motor220 VAC / 60 Hz / 1 Ph
    Time to Full Raise55.00 seconds
    Overall Width202.00"
    Overall Length200.00"
    Outside Length174.00"
    Height of Columns90.00"
    Length of Runways164.00"
    Runway Min Height7.00"
    Runway Width19.00"
    Width Between Runways37.00"
    Max Lifting Height77.00"
    Width Between Posts192.00"
    Min. Wheelbase (25% Capacity)70.00"
    Min. Wheelbase (50% Capacity)85.00"
    Min. Wheelbase (75% Capacity)100.00"
    Min. Wheelbase (Rated Capacity)115.00"
    Locking Positions14
    Lock Spacing4.00"
