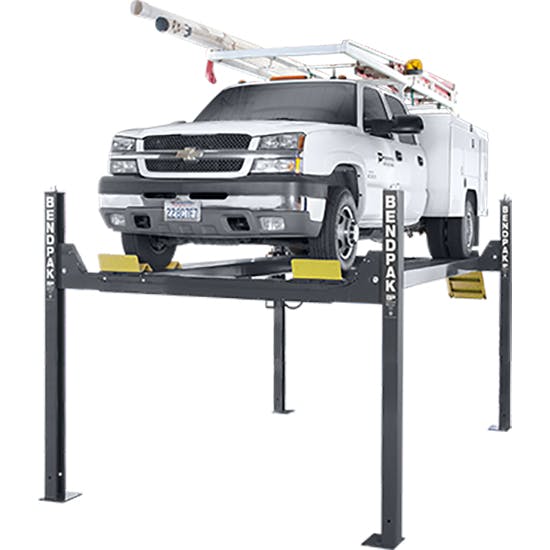

BendPak 5175004 Four-Post Vehicle Lift 14,000 Lbs, 82" Rise

The industrial-quality HD-14T is a full-sized lifting force designed specifically for parking higher-profile vehicles beneath the raised platform. With this four-post lift, you can push 14,000 lbs. worth of automobile into the air without breaking a sweat.

The HD-14T offers superior lifting power with an extended 82” rise, which means if we were a clothing warehouse, this car lift would be found in our “big and tall” section. Commercial fleets of trucks and vans will be right at home in your service bay with this model. Impress your customers by accommodating a wider variety than the competition, no matter what vehicles they bring in.

BendPak cable sheaves are huge: 10.5” diameter sheaves and 2.25” diameter sheave axles, all kept within the runway and cross tubes. This cuts down on how much time and cash you have to spend on maintenance and general upkeep.

Each BendPak lift in this series features four, 1/2” diameter, 6 x 25 stainless-steel lifting cables that have an incredible breaking strength of over 14,000 lbs. each.

• CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
• Mid to long-style approach ramps for low ground clearance vehicles
• Runways include rail-kit for optional accessories
• Single hydraulic cylinder mounted underneath runway
• Fully enclosed lifting cables, safety locks and sheaves
• Internal anti-sway slider blocks in each column - Pneumatic push-button safety release
• Features heavy-duty 1/2” aircraft cable
• Safety locks enclosed in columns minimize pinch points
• Oversized sheave diameter reduces cable fatigue
• Oversized self-lubricating cable rollers
• Rugged 1.75” roller axles - Multi-position safety locks in each column
• Customizable power unit location
• Approach ramps incorporate built-in rear-wheel chocks
• Independent backup slack-cable safety latches
• Runways feature non-skid surface
• Optional drive-thru ramps available
• Optional drip trays available
• Optional 7,000-lb. capacity rolling jacks available
• ETL approved

Due to the shipping weight and dimensions of this item, it is required that it be shipped to a business address that will have either a receiving dock or fork lift at the delivery destination to allow for the item to be unloaded from the truck/trailer at the time of delivery.

BendPak Four-Post Vehicle Lift Installation and Operation Manual (PDF)

BendPak Delivery Requirements (PDF)

BendPak Delivery Information (PDF)

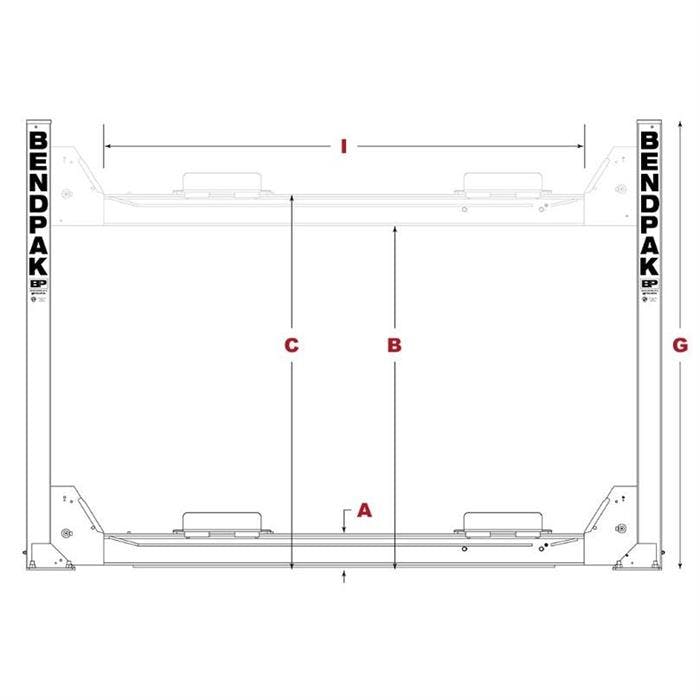

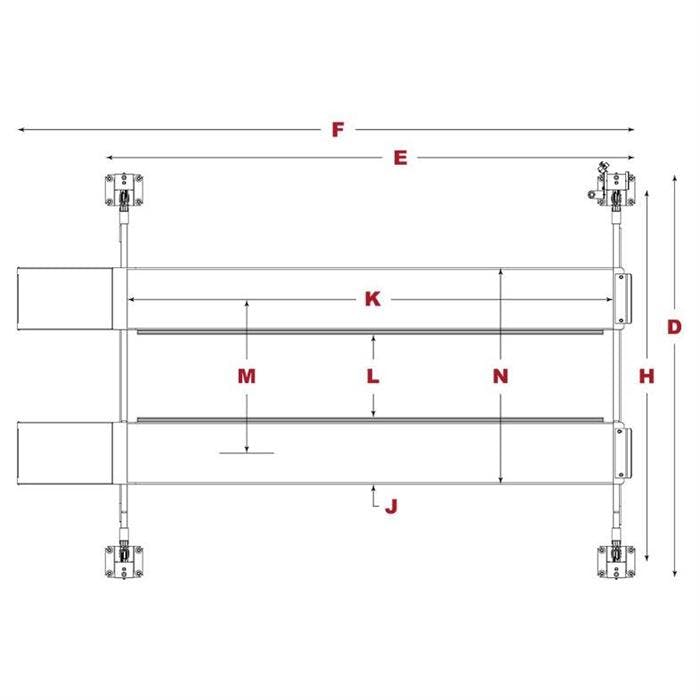

• Lifting Capacity 14,000 lbs.
• Runway Height 7-5/8"
• Rise 82"
• Lifting Height 86-1/2"
• Overall Width 126"
• Outside Length 205"
• Overall Length 234"
• Height of Columns 101"
• Width Between Columns 115.5"
• Drive-Thru Clearance 98"
• Runway Width 20"
• Length of Runways 191"
• Width Between Runways 37.5"- 51"
• Runway Centerline 57.5"- 71"
• Outside Edge of Runways 77.5" - 91"
• Min Wheelbase @ Rated Capacity 135”
• Min Wheelbase @ 75% Capacity 115”
• Min Wheelbase @ 50% Capacity 100”
• Min Wheelbase @ 25% Capacity 80”
• Locking Positions 16
• Lock Spacing every 4”
• Lifting Time 65 seconds
• Motor 220 VAC / 60 Hz / 1 Ph
